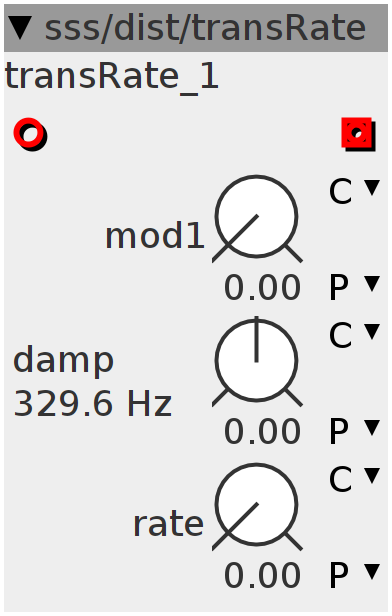

transRate
Quantized maximum change-rate distortion Based on a lowpass filter, this module clamps the rate at which the input may change before sending it to the filter. This rate is related to the current amplitude of the signal and the change can be quantized as if it is an amplifier with different transistor-stages, each having a different maximum change-rate. So: mod1: sets the size of the stages, fully clockwise would be 1 stage only->no change. Lowering the control will make the stages smaller and smaller, adding more and more stages and overtones.
Inlets
frac32buffer in
Outlets
frac32buffer out
Parameters
frac32.s.map.pitch damp
frac32.u.map mod1
frac32.u.map rate
Declaration
int32_t O1;
int32_t prev;
int32_t cap1;
int32_t cap2;
Init
SINE2TINTERP(1 << 30, O1)
Control Rate
int32_t damp;
MTOF(param_damp, damp)
Audio Rate
int32_t in = inlet_in;
int32_t comp;
int32_t offs;
comp = in / (param_mod1 + 1) * (param_mod1 + 1);
int32_t rate = (comp - cap1) << 1;
rate = rate > param_rate ? param_rate : rate;
rate = rate < -param_rate ? -param_rate : rate;
cap1 = ___SMMLA(rate, damp, cap1);
outlet_out = in - cap1;
prev = inlet_in;
