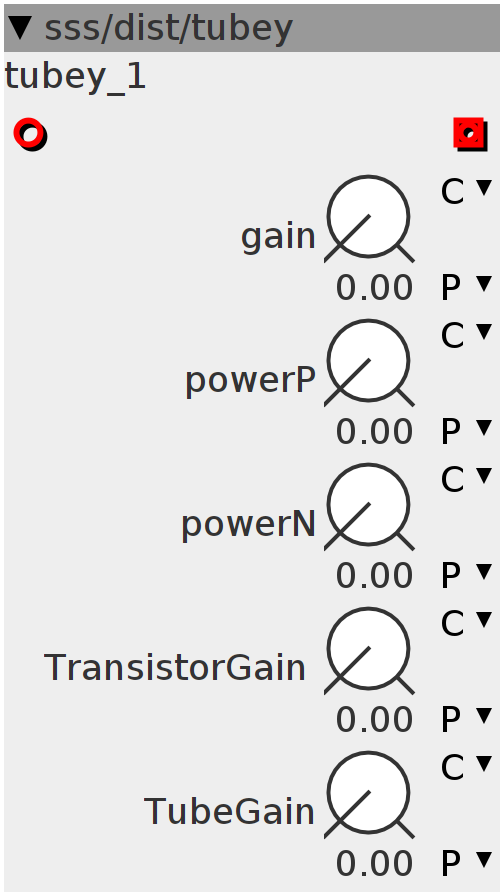

tubey
A tryout to emulate the workings of a transistor+tube based amplifier. powerP and powerN knobs set the amount of power that can be delivered for positive and negative rail, the lower, the faster the power is depleted.
Inlets
frac32buffer in
Outlets
frac32buffer out
Parameters
frac32.u.map gain
frac32.u.map powerP
frac32.u.map powerN
frac32.u.map TransistorGain
frac32.u.map TubeGain
Declaration
int32_t powerP;
int32_t powerN;
int32_t capP;
int32_t capN;
int32_t valP;
int32_t valN;
Control Rate
int32_t trns = ___SMMUL(param_gain << 3, param_TransistorGain);
int32_t tube = ___SMMUL(param_gain << 3, param_TubeGain << 3);
Audio Rate
int32_t ABS = inlet_in;
ABS = ABS > 0 ? ABS : -ABS;
int32_t takeP = (powerP - capP) >> 1;
int32_t takeN = (powerN - capN) >> 1;
powerP -= takeP;
powerN -= takeN;
capP += takeP;
capN += takeN;
powerP = __USAT(powerP + param_powerP, 28);
powerN = -__USAT(-powerN + param_powerN, 28);
int32_t transistor = ___SMMUL(trns << 3, capP << 2);
int32_t takeT = ___SMMUL(transistor << 3, ABS << 2);
takeT = takeT > capP ? capP : takeT;
capP = __USAT(capP - (takeT >> 2), 29);
takeT = ___SMMUL(transistor << 3, tube << 2);
takeP = ___SMMUL(takeT << 3, capP << 2);
takeN = ___SMMUL(takeT << 3, capN << 2);
takeP = takeP > capP ? capP : takeP;
takeN = takeN < capN ? capN : takeN;
takeP = ___SMMUL(takeP << 3, takeP << 2);
takeN = -___SMMUL(takeN << 3, takeN << 2);
capP -= ___SMMUL(takeP << 2, ABS << 3);
capN -= ___SMMUL(takeN << 2, ABS << 3);
int32_t out;
if (inlet_in > 0) {
out = ___SMMUL(inlet_in << 3, takeP << 2);
} else {
out = ___SMMUL(inlet_in << 3, -takeN << 2);
}
outlet_out = out;
// outlet_out=___SMMUL(inlet_in<<3,takeP+takeN)<<2;
