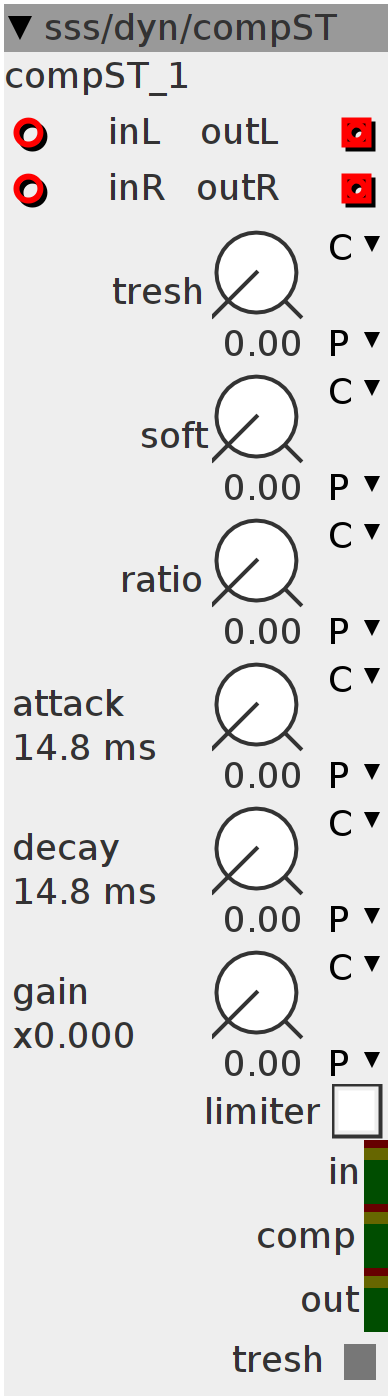

compST

Dynamic range compressor with soft-treshold function, ratio, attack/release and gain.
Author: Remco van der Most
License: BSD
Github: sss/dyn/compST.axo

Inlets

frac32buffer inL

frac32buffer inR

Outlets

frac32buffer outL

frac32buffer outR

Parameters

frac32.u.map.gain gain

bool32.tgl limiter

frac32.u.map tresh

frac32.u.map soft

frac32.u.map ratio

frac32.u.map.kdecaytime attack

frac32.u.map.kdecaytime decay

Displays

bool32 tresh

frac32.vu in

frac32.vu comp

frac32.vu out

Declaration
int32_t frac_log(int32_t a) {
  Float_t f;
  f.f = a;
  // a=a>0?a:-1;
  int32_t r1 = ((f.parts.exponent & 0x7F) - 18) << 24;
  int32_t r3 = logt[f.parts.mantissa >> 15] << 10;
  return r1 + r3;
}

int32_t frac_exp(int32_t a) {
  int8_t s = (a >> 24) + 4;
  uint8_t ei = a >> 16;
  if (s >= 0)
    return expt[ei] << s;
  else
    return expt[ei] >> (-s);
}

int32_t accu;
int32_t prev;
int32_t IN;
int32_t val;
int i;
int32_t over1;
int32_t over2;
Init
accu = 0;
Control Rate
int32_t TRESH = param_tresh + (8 << 21) + 2;
int32_t soft = ___SMMUL(param_tresh << 3, param_soft << 1) + (8 << 21);
int32_t treshlog = frac_log(TRESH - soft);
int32_t Tresh = frac_log(TRESH);
int32_t makeup = ___SMMUL(Tresh, param_gain >> 1);
Tresh = Tresh - treshlog;
float32_t ratio = (float32_t)(1 << 27) / Tresh;
int32_t attack;
int32_t decay;
MTOF((1 << 27) - (param_attack << 1), attack)
MTOF((1 << 27) - (param_decay << 1), decay)

int32_t In = 0;
int32_t OUT = 0;
int32_t OVER = 0;
int32_t tmp = 0;

for (i = 0; i < BUFSIZE; i++) {
  tmp = inlet_inL[i] > inlet_inR[i] ? inlet_inL[i] : inlet_inR[i];
  tmp = tmp > 0 ? tmp : -tmp;
  In = tmp > In ? tmp : In;
  tmp = outlet_outL[i] > outlet_outR[i] ? outlet_outL[i] : outlet_outR[i];
  tmp = tmp > 0 ? tmp : -tmp;
  OUT = tmp > OUT ? tmp : OUT;
  tmp = ___SMMUL(over1, ___SMMUL(over2 << 3, param_ratio << 2)) << 5;
  tmp = tmp > 0 ? tmp : -tmp;
  OVER = tmp > OVER ? tmp : OVER;
}

disp_in = In;
disp_out = OUT >> 6;
disp_comp = OVER;
disp_tresh = over1 > 0 ? 1 : 0;
Audio Rate
int32_t iL = inlet_inL;
int32_t iR = inlet_inR;
iL = iL > 0 ? iL : -iL;
iR = iR > 0 ? iR : -iR;

IN = iL > iR ? iL : iR;

if (IN > val) {
  if (param_limiter == 1) {
    val = IN;
  } else {
    val = ___SMMLA((IN - val) << 1, attack, val);
  }
} else {
  val = ___SMMLA((IN - val) << 1, decay, val);
}

int32_t inlog = frac_log(val);
over1 = inlog - treshlog;
over2 = __USAT((over1 >> 1) * ratio, 27);
over1 = over1 - over2 / ratio;
int32_t gain;
if (over1 < 0) {
  // gain = 0x80000;
  gain = frac_exp(makeup);
} else {
  gain = frac_exp(
      makeup - (___SMMUL(over1, ___SMMUL(over2 << 3, param_ratio << 2)) << 5));
}

outlet_outL = ___SMMUL(inlet_inL << 3, gain << 10);
outlet_outR = ___SMMUL(inlet_inR << 3, gain << 10);
