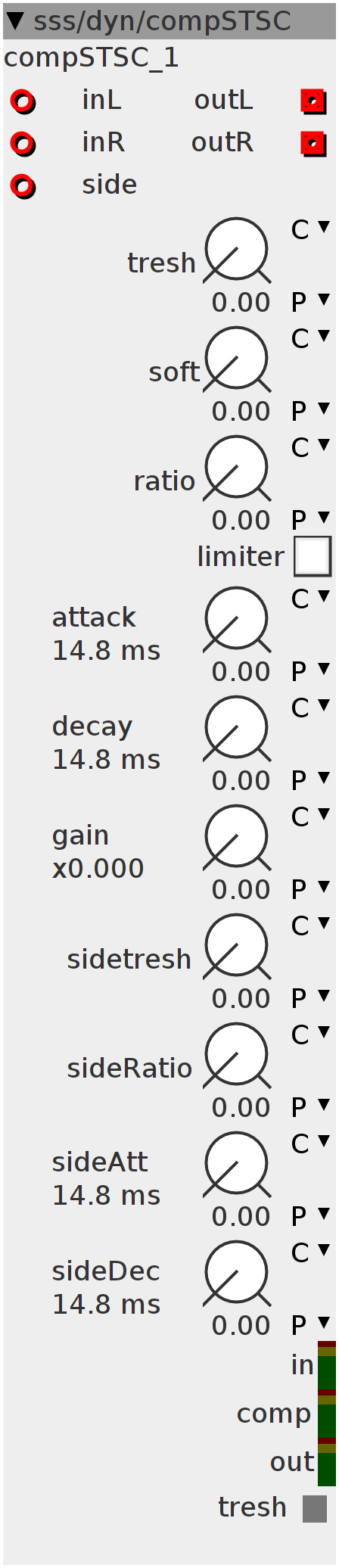

compSTSC
Dynamic range compressor with soft-treshold function, ratio, attack/release and gain. Sidechain lowers the treshold of the compressor, forcing it to duck while keeping the attack/release/ratio response intact for normal compression of the stereo signal. The side-ducking has it's own treshold, ratio, attack and decay.
Inlets
frac32buffer inL
frac32buffer inR
frac32buffer eg. a basskick to duck bass
Outlets
frac32buffer outL
frac32buffer outR
Parameters
frac32.u.map.gain add gain to stereo output
frac32.u.map treshold for the stereo compression (is lowered by side-chain ducking)
frac32.u.map softness of the treshold for stereo compression (fades in ratio)
frac32.u.map amount of compression (full=hard limiting).
frac32.u.map treshold for the sidechain to breach
frac32.u.map amount of ducking of the treshold for the stereo signal, up to 2x ducking for low level signals.
bool32.tgl sets attack-rate to immediate-following
frac32.u.map.kdecaytime attack rate (unresponsive when "limiter" is on!)
frac32.u.map.kdecaytime decay response of stereo compression
frac32.u.map.kdecaytime attack response of the sideducking
frac32.u.map.kdecaytime decay response of the sideducking
Displays
frac32.vu in
frac32.vu comp
frac32.vu out
bool32 tresh
int32_t frac_log(int32_t a) {
Float_t f;
f.f = a;
// a=a>0?a:-1;
int32_t r1 = ((f.parts.exponent & 0x7F) - 18) << 24;
int32_t r3 = logt[f.parts.mantissa >> 15] << 10;
return r1 + r3;
}
int32_t frac_exp(int32_t a) {
int8_t s = (a >> 24) + 4;
uint8_t ei = a >> 16;
if (s >= 0)
return expt[ei] << s;
else
return expt[ei] >> (-s);
}
int32_t accu;
int32_t prev;
int32_t IN;
int32_t val;
int32_t vl;
int i;
int32_t over1;
int32_t over2;accu = 0;int32_t TRESH = param_tresh + (8 << 21) + 2;
int32_t sTRESH = param_sidetresh + (8 << 21) + 2;
int32_t soft = ___SMMUL(param_tresh << 3, param_soft << 1) + (8 << 21);
int32_t treshlog = frac_log(TRESH - soft);
int32_t sTresh = frac_log(sTRESH);
int32_t Tresh = frac_log(TRESH);
int32_t makeup = ___SMMUL(Tresh, param_gain >> 1);
Tresh = Tresh - treshlog;
float32_t ratio = (float32_t)(1 << 27) / Tresh;
float32_t sratio = (float32_t)(1 << 27) / sTresh;
int32_t attack;
int32_t decay;
MTOF((1 << 27) - (param_attack << 1), attack)
MTOF((1 << 27) - (param_decay << 1), decay)
int32_t sattack;
int32_t sdecay;
MTOF((1 << 27) - (param_sideAtt << 1), sattack)
MTOF((1 << 27) - (param_sideDec << 1), sdecay)
sdecay = sdecay >> 3;
int32_t In = 0;
int32_t OUT = 0;
int32_t OVER = 0;
int32_t tmp = 0;
for (i = 0; i < BUFSIZE; i++) {
tmp = inlet_inL[i] > inlet_inR[i] ? inlet_inL[i] : inlet_inR[i];
tmp = tmp > 0 ? tmp : -tmp;
In = tmp > In ? tmp : In;
tmp = outlet_outL[i] > outlet_outR[i] ? outlet_outL[i] : outlet_outR[i];
tmp = tmp > 0 ? tmp : -tmp;
OUT = tmp > OUT ? tmp : OUT;
tmp = ___SMMUL(over1, ___SMMUL(over2 << 3, param_ratio << 2)) << 5;
tmp = tmp > 0 ? tmp : -tmp;
OVER = tmp > OVER ? tmp : OVER;
}
disp_in = In;
disp_out = OUT >> 6;
disp_comp = OVER;
disp_tresh = over1 > 0 ? 1 : 0;int32_t iL = inlet_inL;
int32_t iR = inlet_inR;
iL = iL > 0 ? iL : -iL;
iR = iR > 0 ? iR : -iR;
IN = iL > iR ? iL : iR;
int32_t SD = inlet_side;
SD = SD > 0 ? SD : -SD;
if (SD > vl) {
vl = ___SMMLA((SD - vl) << 1, sattack, vl);
} else {
vl = ___SMMLA((SD - vl) << 1, sdecay, vl);
}
int32_t SDlog = frac_log(vl) - sTresh;
int32_t over3 = __USAT((SDlog >> 1) * sratio, 27);
SDlog = ___SMMUL((int32_t)(SDlog - over3 / sratio), param_sideRatio << 3) << 4;
if (IN > val) {
if (param_limiter == 1) {
val = IN;
} else {
val = ___SMMLA((IN - val) << 1, attack, val);
}
} else {
val = ___SMMLA((IN - val) << 1, decay, val);
}
int32_t inlog = frac_log(val);
over1 = inlog - (treshlog - SDlog);
over2 = __USAT((over1 >> 1) * ratio, 27);
over1 = over1 - over2 / ratio;
int32_t gain;
if (over1 < 0) {
// gain = 0x80000;
gain = frac_exp(makeup);
} else {
gain = frac_exp(
makeup - (___SMMUL(over1, ___SMMUL(over2 << 3, param_ratio << 2)) << 5));
}
outlet_outL = ___SMMUL(inlet_inL << 3, gain << 10);
outlet_outR = ___SMMUL(inlet_inR << 3, gain << 10);
