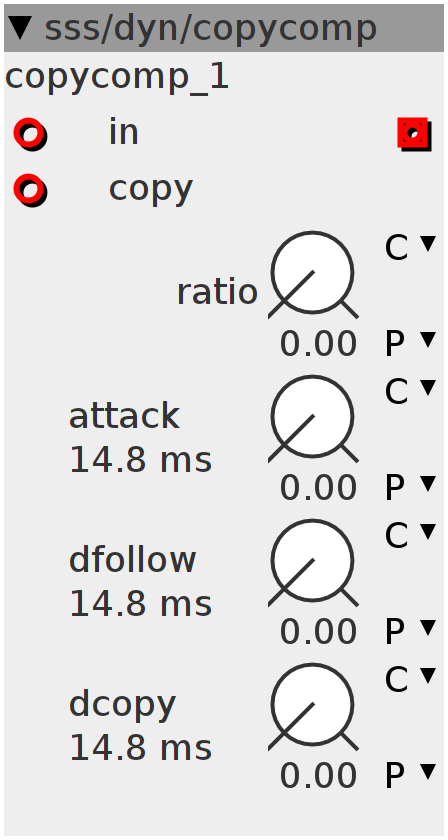

copycomp
Dynamic envelope copy Apply the envelope of one signal (copy-input) to the envelope of the other (in-input) Set follow-rate with attack and decay and follow-amount with "ratio"
Inlets
frac32buffer in
frac32buffer copy
Outlets
frac32buffer out
Parameters
frac32.u.map ratio
frac32.u.map.kdecaytime attack
frac32.u.map.kdecaytime dfollow
frac32.u.map.kdecaytime dcopy
Declaration
int32_t frac_log(int32_t a) {
Float_t f;
f.f = a;
int32_t r1 = ((f.parts.exponent & 0x7F) - 18) << 24;
int32_t r3 = logt[f.parts.mantissa >> 15] << 10;
return r1 + r3;
}
int32_t frac_exp(int32_t a) {
int8_t s = (a >> 24) + 4;
uint8_t ei = a >> 16;
if (s >= 0)
return expt[ei] << s;
else
return expt[ei] >> (-s);
}
int32_t accu;
int32_t prev;
int32_t IN;
int32_t val;
int32_t vel;
int i;
int64_t over1;
int64_t over2;
int32_t v18 = (1 << 23);
Init
accu = 0;
Control Rate
int32_t attack;
MTOF((1 << 27) - (param_attack << 1), attack)
attack = attack;
int32_t decay1;
MTOF(-(param_dfollow << 1), decay1)
decay1 = decay1;
int32_t decay2;
MTOF((1 << 26) - (param_dcopy << 1), decay2)
decay2 = decay2;
Audio Rate
IN = inlet_in;
IN = IN > 0 ? IN : -IN;
int32_t copy = __SSAT(inlet_copy, 28);
copy = copy > 0 ? copy : -copy;
if (IN > val) {
val = IN;
} else {
val = ___SMMLA((IN - val) << 1, decay2, val);
}
if (copy > vel) {
vel = ___SMMLA((copy - vel) << 1, attack, vel);
} else {
vel = ___SMMLA((copy - vel) << 1, decay1, vel);
}
int32_t Tresh = frac_log((vel > v18 ? vel : v18));
float32_t ratio = (float32_t)(1 << 27) / Tresh;
int32_t inlog = frac_log(val > v18 ? val : v18);
Tresh = Tresh >> 1;
inlog = inlog >> 1;
over1 = Tresh - inlog;
int32_t gain;
gain = frac_exp((1 << 27) + (___SMMUL(over1, param_ratio) << 6));
int32_t out = ___SMMUL(inlet_in, gain) << 5;
outlet_out = __SSAT(out, 28);
