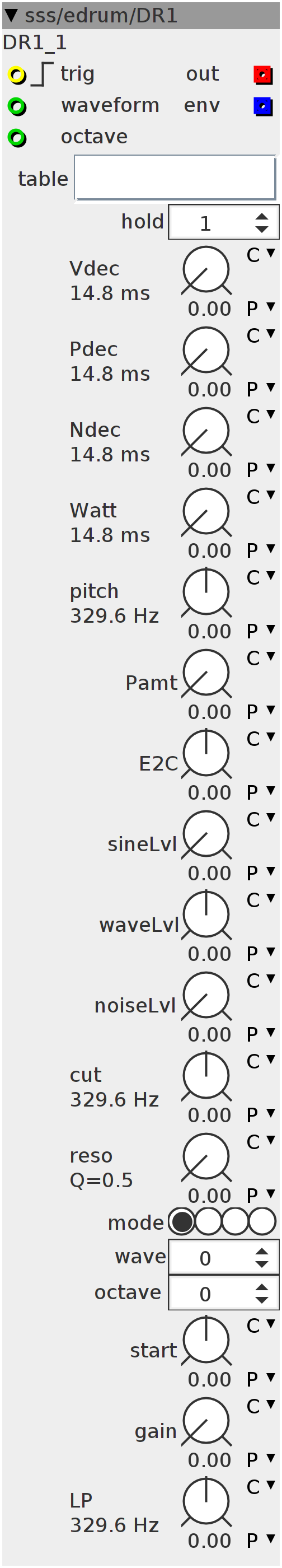

DR1

$\text{[math]}$

drum synthesizer with an extra wavetable shaper to add higher harmonics to the sine-base. Uses wavetables made with the wavetable creator "Creator" (1024 waves of 1024 samples long each) Seperate envelopes for pitch, volume and noise levels. Volume envelope can be fed to the end-LP filter (E2C knob) Noise part has it's own SVF filter with cutoff, resonance and selectable mode(LP,HP,BP,NOTCH) Best to trigger this with a trigger instead of a gate.

Author: Remco van der Most

License: BSD

Github: sss/edrum/DR1.axo

Inlets

bool32.rising trig

int32 waveform

int32 octave

Outlets

frac32buffer out

frac32 env

Parameters

int32 hold

int32 wave

int32 octave

frac32.u.map.kdecaytime Vdec

frac32.u.map.kdecaytime Pdec

frac32.u.map.kdecaytime Ndec

frac32.u.map.kdecaytime Watt

frac32.s.map.pitch pitch

frac32.s.map.pitch cut

frac32.s.map.pitch LP

frac32.u.map Pamt

frac32.u.map sineLvl

frac32.u.map noiseLvl

frac32.u.map gain

frac32.s.map E2C

frac32.s.map waveLvl

frac32.s.map start

frac32.u.map.filterq reso

int32.hradio mode

Attributes

objref table

Declaration

uint32_t phase;
int32_t sine;
int32_t read;
uint32_t Penv;
uint32_t Venv;
uint32_t Nenv;
uint32_t Wenv;
int gtrig;
int Gtrig;
int32_t noise;
int32_t val;
int32_t table;
int32_t preset;
int32_t count;

int32_t low;
int32_t band;

int32_t tableread(int32_t phase){

};

Init

low = 0;
band = 0;

Control Rate

int32_t F1;
MTOF(-param_Pdec, F1)
int32_t F2;
MTOF(-param_Vdec, F2)
int32_t F3;
MTOF(-param_Ndec, F3)
int32_t F4;
MTOF(-param_Watt, F4)
if (count >= param_hold) {
  Penv = ___SMMLA(-Penv << 1, F1 << 1, Penv);
  Venv = ___SMMLA(-Venv << 1, F2 << 1, Venv);
  Nenv = ___SMMLA(-Nenv << 1, F3 << 1, Nenv);
  Wenv = ___SMMLA(-Wenv << 1, F4 << 1, Wenv);
}
if ((inlet_trig > 0) && !gtrig) {

  gtrig = 1;
  Penv = (1 << 27);
  Venv = (1 << 27);
  Nenv = (1 << 27);
  Wenv = (1 << 27);
  count = 0;
} else if (inlet_trig == 0) {
  gtrig = 0;
}

count += 1;
count = count > param_hold ? param_hold : count;

int32_t LENGTHMASK = attr_table.LENGTHMASK * attr_table.Waveforms;

int32_t PENV = Penv;
//___SMMUL(Penv<<3,Penv<<2);
PENV = ___SMMUL(PENV << 3, PENV << 2);

int32_t VENV = Venv;
VENV = ___SMMUL(VENV << 3, VENV << 2);
VENV += ___SMMUL(param_gain << 2, VENV << 3) * 3;

int32_t NENV = ___SMMUL(Nenv << 3, Nenv << 2);
NENV = ___SMMUL(NENV << 3, NENV << 2);
NENV = ___SMMUL(NENV << 3, param_noiseLvl << 2);

int32_t WENV = ___SMMUL((1 << 27) - Wenv << 3, param_waveLvl << 2);
WENV = ___SMMUL(WENV << 3, WENV << 2) << 3;
WENV = ___SMMUL(WENV << 3, WENV << 2) << 3;
int32_t freq;
MTOFEXTENDED(param_pitch + ___SMMUL(param_Pamt << 3, PENV << 2), freq)

int32_t damp = (0x80 << 24) - (param_reso << 4);
damp = ___SMMUL(damp, damp);
int32_t alpha;
int32_t fraq;
MTOFEXTENDED(param_cut, alpha);
SINE2TINTERP(alpha, fraq);

int32_t octave = param_octave + inlet_octave;

int32_t cut;
MTOF(param_LP + ___SMMUL(param_E2C << 3, VENV << 2), cut)
preset = (param_wave + inlet_waveform);
preset = preset - preset / attr_table.Waveforms * attr_table.Waveforms;
preset = preset << attr_table.LENGTHPOW;
outlet_env = Penv;
int32_t Noise = (1 << 28) - (param_cut + (1 << 27));

Audio Rate

if ((inlet_trig > 0) && !Gtrig) {
  Gtrig = 1;
  phase = 0;
} else if (inlet_trig == 0) {
  Gtrig = 0;
}

noise = (int32_t)(GenerateRandomNumber()) >> 5;
int32_t notch = (noise) - (___SMMUL(damp, band) << 1);
low = low + (___SMMUL(fraq, band) << 1);
int32_t high = notch - low;
band = (___SMMUL(fraq, high) << 1) + band;
int32_t out;
switch (param_mode > 0 ? param_mode : 0) {
case 0:
  out = low;
  break;
case 1:
  out = high;
  break;
case 2:
  out = band;
  break;
case 3:
  out = notch;
  break;
default:
  out = low;
  break;
}
noise = out << 4;
phase += freq;
table = ___SMMUL(attr_table.array[((((phase + (param_start << 5)) >>
                                     32 - attr_table.LENGTHPOW - octave) &
                                    attr_table.LENGTHMASK) +
                                   preset)]
                     << 4,
                 WENV)
        << 1;
SINE2TINTERP(phase, sine)
int32_t wave;
wave = __SSAT(___SMMUL(___SMMUL(sine >> 2, param_sineLvl << 2) +
                               (___SMMUL((noise >> 2) +
                                             (___SMMUL(noise, Noise << 3) << 3),
                                         NENV << 2) +
                                table)
                           << 2,
                       VENV << 2)
                  << 1,
              28);
val = ___SMMLA((wave - val) << 1, cut, val);
outlet_out = val;
