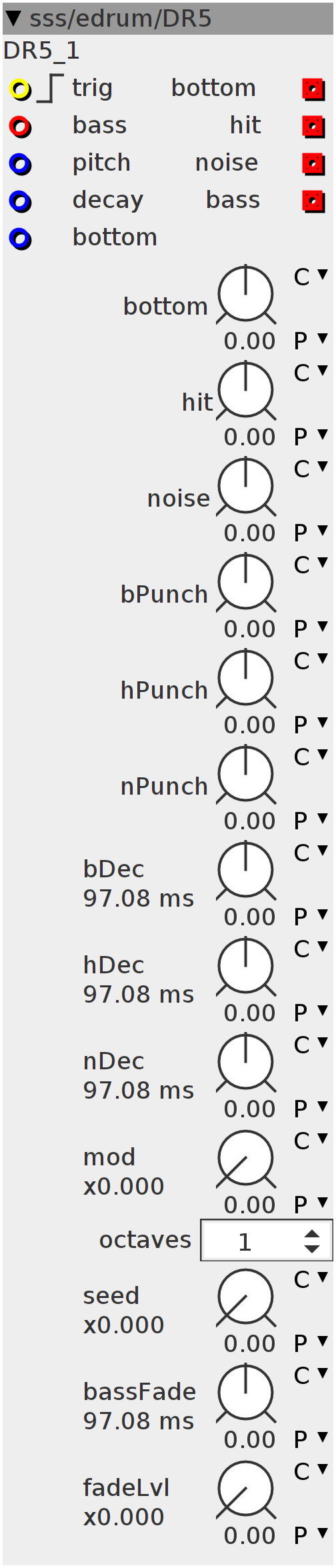

DR5
Kick/tom/snare generator with seperate outputs for different parts of the sound. Bass-signal can be routed through "bass" input for ducking.
Inlets
frac32buffer bass
frac32 pitch
frac32 decay
frac32 bottom
bool32.rising trigger
Outlets
frac32buffer bottom
frac32buffer hit
frac32buffer noise
frac32buffer bass
Parameters
frac32.u.map.gain mod
frac32.u.map.gain seed
frac32.u.map.gain fadeLvl
int32 octaves
frac32.s.map bottom
frac32.s.map hit
frac32.s.map noise
frac32.s.map bPunch
frac32.s.map hPunch
frac32.s.map nPunch
frac32.s.map.klineartime.exp bDec
frac32.s.map.klineartime.exp hDec
frac32.s.map.klineartime.exp nDec
frac32.s.map.klineartime.exp bassFade
int32_t val[4];
bool ntrig;
int32_t phs[3];
int i;
int32_t v26 = 1 << 26;
int32_t v27 = 1 << 27;
int32_t v30 = 1 << 30;
int32_t lp;
int32_t hp;
int32_t noise;
static const int noct = 8;
int32_t obuf[noct];
int32_t sum;
uint32_t seed;
int index;
const int8_t *dyadictree(void) {
static const int8_t dtree[] = {
0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 4, 0, 1, 0, 2, 0, 1,
0, 3, 0, 1, 0, 2, 0, 1, 0, 5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2,
0, 1, 0, 4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 6, 0, 1,
0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 4, 0, 1, 0, 2, 0, 1, 0, 3,
0, 1, 0, 2, 0, 1, 0, 5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1,
0, 4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 7};
return dtree;
}
int32_t HP;for (i = 0; i < 3; i++) {
val[i] = 0;
}
ntrig = 0;
for (i = 0; i < noct; i++) {
obuf[i] = 0;
index = 0;
sum = 0;
seed = 0x830af41e;
}int32_t dec[4];
dec[0] = param_bDec + inlet_decay;
dec[1] = param_hDec + inlet_decay;
dec[2] = param_nDec + inlet_decay;
dec[3] = param_bassFade + v26;
if ((inlet_trig > 0) && !ntrig) {
for (i = 0; i < 3; i++) {
val[i] = v27;
phs[i] = 0;
}
val[3] = v27;
ntrig = 1;
for (i = 0; i < noct; i++) {
obuf[i] = 0;
index = 0;
sum = 0;
seed = 0x830af41e + param_seed;
}
} else {
if (!(inlet_trig > 0))
ntrig = 0;
int32_t t;
for (i = 0; i < 4; i++) {
MTOF(-dec[i] + (v26), t);
val[i] -= t >> 6;
if (val[i] < 0)
val[i] = 0;
}
}
int32_t bot;
bot = v27 - val[0];
bot = ___SMMUL(bot << 2, bot << 3);
bot = v27 - ___SMMUL(bot << 2, bot << 3);
int32_t env[4];
env[0] = ___SMMUL(val[0] << 2, val[1] << 3);
env[0] = ___SMMUL(env[0] << 2, env[0] << 3);
env[0] = ___SMMUL(___SMMUL(env[0] << 2, env[0] << 3) << 3, param_bPunch << 2);
env[1] = ___SMMUL(val[1] << 2, val[1] << 3);
env[1] = ___SMMUL(___SMMUL(env[1] << 2, env[1] << 3) << 3, param_hPunch << 2);
env[2] = ___SMMUL(___SMMUL(val[2] << 2, val[2] << 3) << 3, param_nPunch << 2);
env[3] = v27 - val[3]; //___SMMUL(val[3]<<3,val[3]<<2);
env[3] = ___SMMUL(env[3] << 3, env[3] << 2);
env[3] = ___SMMUL(v27 - env[3] << 1, param_fadeLvl);
int32_t frq[3];
MTOFEXTENDED(inlet_pitch + param_bottom + inlet_bottom + env[0], frq[0])
MTOFEXTENDED(inlet_pitch + param_hit + env[1], frq[1])
MTOFEXTENDED(inlet_pitch + param_noise + v27 + env[2], frq[2])
int32_t FQ;
MTOF(-(1 << 26) + ___SMMUL(val[0] << 1, v30), FQ);phs[2] += frq[2];
// if(phs[2]>0){
int o = dyadictree()[index++];
if (o >= param_octaves) {
index = 0;
} else {
sum -= obuf[o];
seed = (seed * 196314165) + 907633515;
obuf[o] = ((int32_t)seed + phs[2]) >> 7;
sum += obuf[o];
}
seed = (seed * 196314165) + 907633515;
noise = (sum + (((int32_t)seed) >> param_octaves)) * param_octaves;
//}
lp += ___SMMUL(noise - lp, frq[2]);
hp += ___SMMUL(lp - hp, frq[2]);
noise = lp - hp;
noise = ___SMMUL(noise << 3, val[2] << 2);
phs[0] += frq[0];
int32_t sine;
SINE2TINTERP(phs[0], sine)
outlet_bottom = ___SMMUL(sine, bot);
phs[1] += frq[1] + (___SMMUL(noise << 3, param_mod));
SINE2TINTERP(phs[1], sine)
outlet_hit = ___SMMUL(sine, val[1]);
outlet_noise = noise;
int32_t bass = ___SMMUL(inlet_bass << 2, v27 - env[3] << 3);
HP += ___SMMUL(bass - HP, FQ);
outlet_bass = bass - HP;
