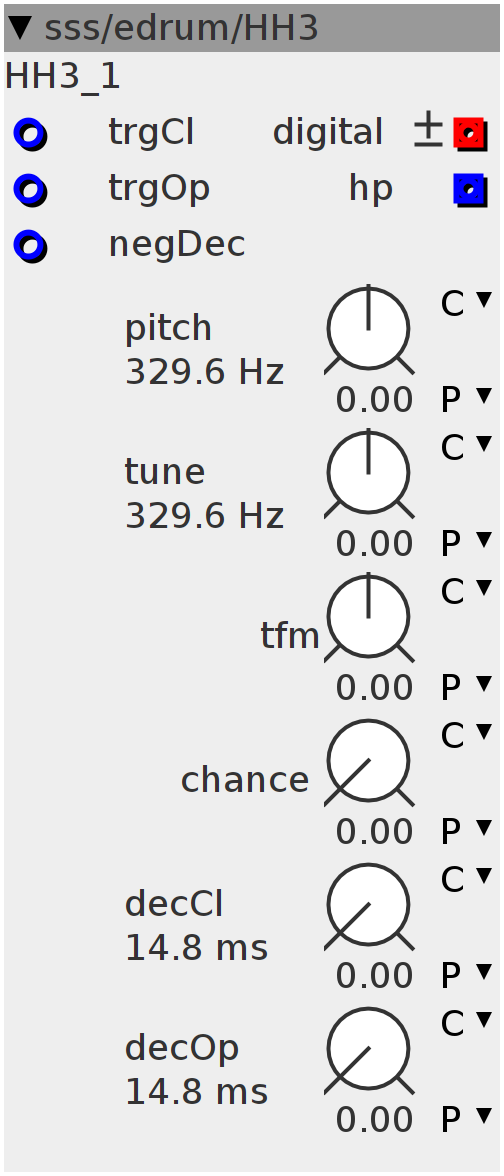

HH3

Hihat module
Author: Remco van der Most
License: BSD
Github: sss/edrum/HH3.axo

Inlets

frac32 trgCl

frac32 trgOp

frac32 negDec

Outlets

frac32buffer.bipolar white noise

frac32 hp

Parameters

frac32.s.map tfm

frac32.u.map chance

frac32.u.map.kdecaytime decCl

frac32.u.map.kdecaytime decOp

frac32.s.map.pitch pitch

frac32.s.map.pitch tune

Declaration
bool trg;
int32_t phase;
int32_t Phase;
int32_t hp;
int32_t lp;
int32_t en;
int32_t freq;
int32_t vol;
int32_t tune;
int32_t chance;
int32_t Vdec;
Init
trg = 0;
Control Rate
int32_t pitch;
MTOFEXTENDED(param_pitch, pitch)
int trig = inlet_trgCl || inlet_trgOp;
if ((trig > 0) && !trg) {
  trg = 1;
  en = (1 << 27);
  if (inlet_trgCl) {
    MTOF(-param_decCl + ___SMMUL(inlet_negDec << 2, param_decCl << 2), Vdec)
    vol = tune = inlet_trgCl;
    chance = __SSAT(param_chance - (inlet_trgCl >> 2), 28);
    chance = ___SMMUL(chance << 3, chance << 2);
  }
  if (inlet_trgOp) {
    MTOF(-param_decOp + ___SMMUL(inlet_negDec << 2, param_decOp << 2), Vdec)
    vol = tune = inlet_trgOp;
    chance = __SSAT(param_chance - (inlet_trgOp >> 2), 28);
    chance = ___SMMUL(chance << 3, chance << 2);
  }
} else if (trig == 0) {
  trg = 0;
}

en -= ___SMMUL(en, Vdec);
int32_t En;
// En=(1<<27)-en;
// En=(1<<27)-___SMMUL(En<<3,En<<2);
En = en;
En = ___SMMUL(En << 3, En << 2);
En = ___SMMUL(En << 3, En << 2);
En = ___SMMUL(En << 3, En << 2);
outlet_hp = En;
En = ___SMMUL(En << 3, vol << 2);
MTOF(param_tune + tune + ___SMMUL(param_tfm << 3, En << 2), freq)
Audio Rate
Phase += pitch;
int32_t sine;
sine = Phase > 0 ? (1 << 30) : -(1 << 30);
int i;
for (i = 0; i < 3; i++) {
  if ((int32_t)(GenerateRandomNumber() >> 4) < chance) {
    phase = phase > 0 ? -(1 << 28) : (1 << 28);
  }
  lp = ___SMMLA((phase - lp) << 1, freq, lp);
  hp = ___SMMLA((lp - hp) << 1, freq, hp);
}
int32_t o = lp - hp;
o = ___SMMUL(sine, o);
o = o > En ? En : o;
o = o < -En ? -En : o;

outlet_digital = o;
