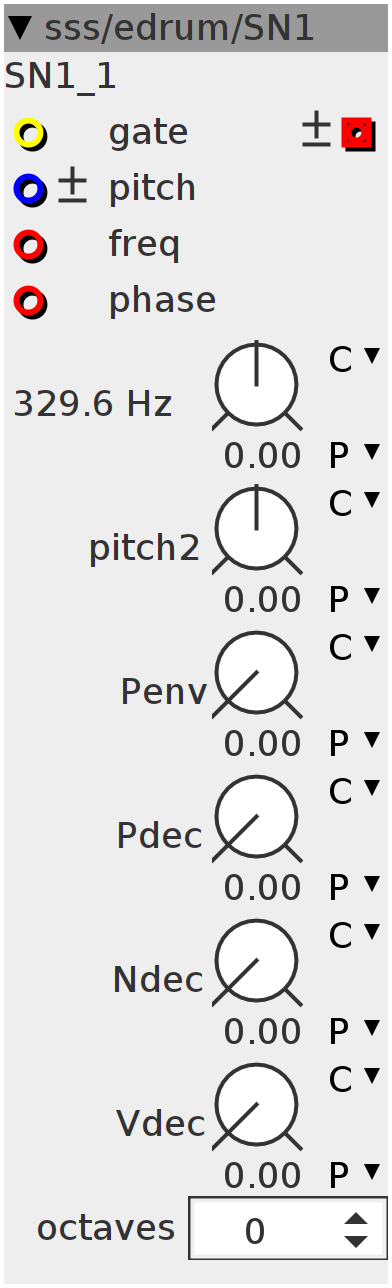

SN1

snare
Author: Remco van der most
License: BSD
Github: sss/edrum/SN1.axo

Inlets

bool32 gate

frac32.bipolar pitch

frac32buffer frequency

frac32buffer phase

Outlets

frac32buffer.bipolar sine wave

Parameters

frac32.s.map.pitch pitch1

frac32.s.map pitch2

frac32.u.map Penv

frac32.u.map Pdec

frac32.u.map Ndec

frac32.u.map Vdec

int32 octaves

Declaration
uint32_t Phase1;
uint32_t Phase2;
int32_t ad1;
int32_t ad2;
int32_t ad3;
int32_t freq;
int32_t decay1;
int32_t decay2;
int32_t decay3;
int ttrig;
static const int noct = 10;
int32_t obuf[noct];
int32_t sum;
uint32_t seed;
int index;
const int8_t *dyadictree(void) {
  static const int8_t dtree[] = {
      0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 4, 0, 1, 0, 2, 0, 1,
      0, 3, 0, 1, 0, 2, 0, 1, 0, 5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2,
      0, 1, 0, 4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 6, 0, 1,
      0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 4, 0, 1, 0, 2, 0, 1, 0, 3,
      0, 1, 0, 2, 0, 1, 0, 5, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1,
      0, 4, 0, 1, 0, 2, 0, 1, 0, 3, 0, 1, 0, 2, 0, 1, 0, 7};
  return dtree;
}
Init
Phase1 = 0;
Phase2 = 0;
int i;
for (i = 0; i < noct; i++)
  obuf[i] = 0;
index = 0;
sum = 0;
seed = 0x830af41e + GenerateRandomNumber();
Control Rate
decay1 = (1 << 27) - param_Pdec;
decay1 = ___SMMUL(decay1 << 3, decay1 << 2);
decay1 = ___SMMUL(decay1 << 3, decay1 << 2);
decay1 = (1 << 27) - decay1;
decay2 = (1 << 27) - param_Vdec;
decay2 = ___SMMUL(decay2 << 3, decay2 << 2);
decay2 = ___SMMUL(decay2 << 3, decay2 << 2);
decay2 = (1 << 27) - decay2;
decay3 = (1 << 27) - param_Ndec;
decay3 = ___SMMUL(decay3 << 3, decay3 << 2);
decay3 = ___SMMUL(decay3 << 3, decay3 << 2);
decay3 = (1 << 27) - decay3;
Audio Rate
int o = dyadictree()[index++];
if (o == param_octaves) {
  index = 0;
} else {
  sum -= obuf[o];
  seed = (seed * 196314165) + 907633515;
  obuf[o] = ((int32_t)seed) >> 7;
  sum += obuf[o];
}
seed = (seed * 196314165) + 907633515;
int32_t noise = sum + (((int32_t)seed) >> param_octaves);

if ((inlet_gate > 0) && (!(ttrig))) {
  Phase1 = 0;
  Phase2 = 0;
  ad1 = (1 << 27);
  ad2 = (1 << 27);
  ad3 = (1 << 27);
}
ad1 = ___SMMUL(ad1 << 3, decay1 << 2);
ad2 = ___SMMUL(ad2 << 3, decay2 << 2);
ad3 = ___SMMUL(ad3 << 3, decay3 << 2);
MTOFEXTENDED(param_pitch1 + inlet_pitch + ___SMMUL(ad1 << 3, param_Penv << 2),
             freq);
Phase1 += freq + inlet_freq;
Phase2 +=
    freq + inlet_freq + ___SMMUL(param_pitch2 << 3, (freq + inlet_freq) << 5);
int32_t r1;
int32_t r2;
SINE2TINTERP(Phase1, r1)
SINE2TINTERP(Phase2, r2)
outlet_wave =
    ___SMMUL(ad3 << 3, (noise >> 3) + (___SMMUL(ad2, (r1 >> 1) + (r2 >> 1))));
