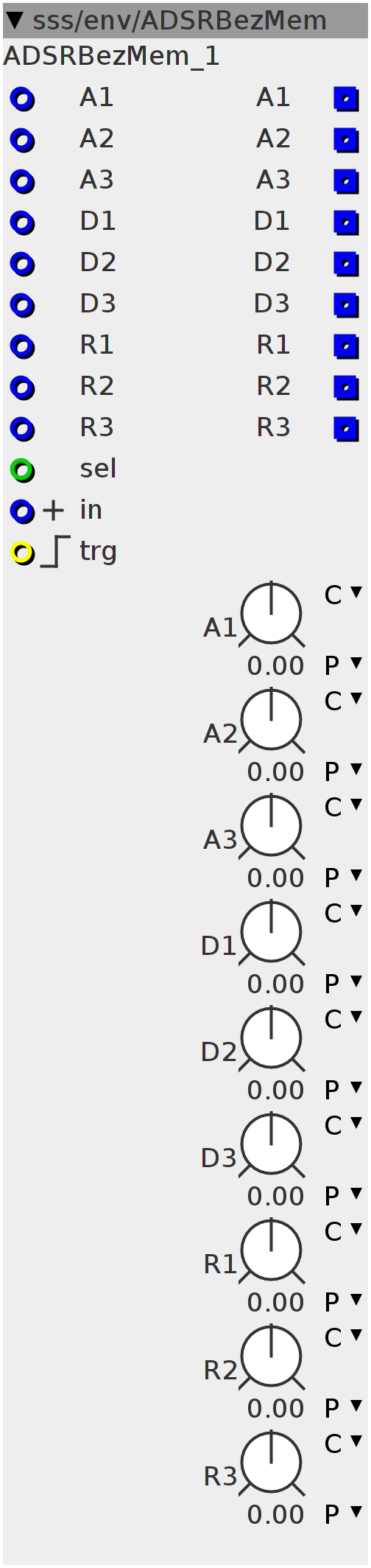

ADSRBezMem
This is the control module for the ADSRbezier module curve controles, so you'll only need one knob and a selector to control all 9 curve parameters
Inlets
int32 select parameter to change (0 to 17)
frac32.positive input for controlling parameters
bool32.rising Trigger high updates parameter to "in" inlet
frac32 adds to respective value, so no need for external adders.
frac32 adds to respective value
frac32 adds to respective value
frac32 adds to respective value
frac32 adds to respective value
frac32 D3
frac32 R1
frac32 R2
frac32 R3
Outlets
frac32 A1
frac32 A2
frac32 A3
frac32 D1
frac32 D2
frac32 D3
frac32 R1
frac32 R2
frac32 R3
Parameters
frac32.s.map A1
frac32.s.map A2
frac32.s.map A3
frac32.s.map D1
frac32.s.map D2
frac32.s.map D3
frac32.s.map R1
frac32.s.map R2
frac32.s.map R3
int32_t cache;
int trg;switch (inlet_sel > 0 ? inlet_sel : 0) {
case 0:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_A1], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 1:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_A2], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 2:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_A3], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 3:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_D1], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 4:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_D2], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 5:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_D3], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 6:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_R1], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 7:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_R2], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
case 8:
if ((inlet_trg > 0) && (trg != 1)) {
trg = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_R3], inlet_in,
0xFFFD);
} else {
if (inlet_trg == 0) {
trg = 0;
}
}
break;
}
outlet_A1 = param_A1 + inlet_A1;
outlet_A2 = param_A2 + inlet_A2;
outlet_A3 = param_A3 + inlet_A3;
outlet_D1 = param_D1 + inlet_D1;
outlet_D2 = param_D2 + inlet_D2;
outlet_D3 = param_D3 + inlet_D3;
outlet_R1 = param_R1 + inlet_R1;
outlet_R2 = param_R2 + inlet_R2;
outlet_R3 = param_R3 + inlet_R3;
