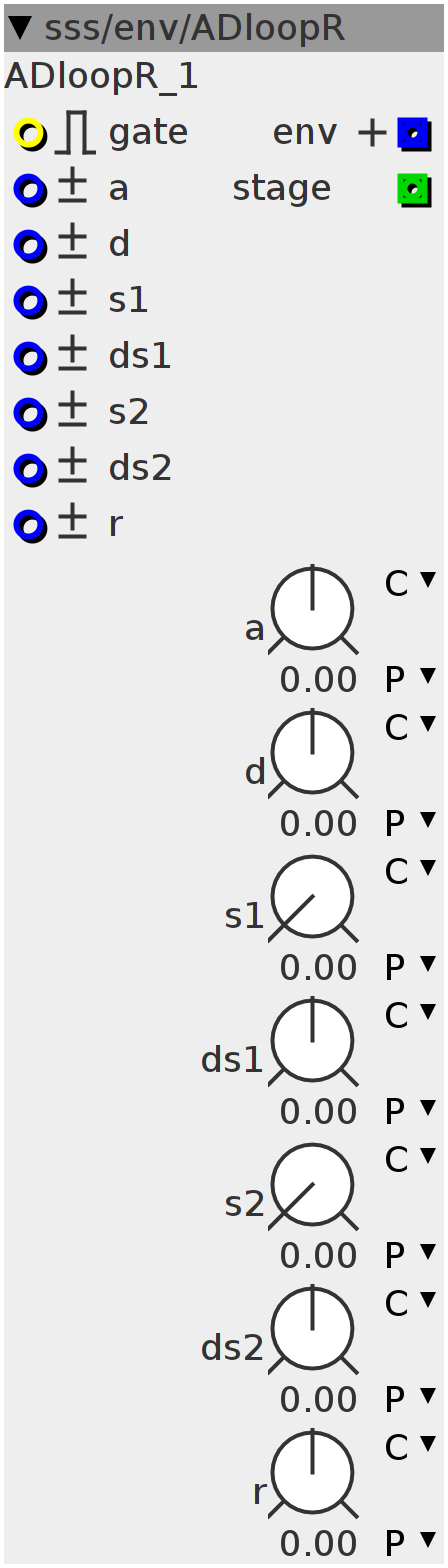

ADloopR
Attack/decay/sustain/release envelope with modulation inputs
Inlets
frac32.bipolar attack time modulation
frac32.bipolar decay time modulation
frac32.bipolar sustail level1 modulation
frac32.bipolar ds1
frac32.bipolar sustail level2 modulation
frac32.bipolar ds2
frac32.bipolar release time modulation
bool32.risingfalling gate
Outlets
frac32.positive envelope output
int32 stage
Parameters
frac32.s.map a
frac32.s.map d
frac32.s.map ds1
frac32.s.map ds2
frac32.s.map r
frac32.u.map s1
frac32.u.map s2
int8_t stage;
int ntrig;
int32_t val;stage = 0;
ntrig = 0;
val = 0;if ((inlet_gate > 0) && !ntrig) {
stage = 1;
ntrig = 1;
}
if (!(inlet_gate > 0) && ntrig) {
stage = 0;
ntrig = 0;
}
if (stage == 0) {
int32_t r1;
int32_t r2;
MTOF(-param_r - inlet_r, r1);
r1 = 0x7FFFFFFF - (r1 >> 2);
val = ___SMMUL(val, r1) << 1;
} else if (stage == 1) {
int32_t a;
MTOF(-param_a - inlet_a, a);
a = a >> 2;
val = val + a;
if (val < 0) {
val = 0x7FFFFFFF;
stage = 2;
}
} else if (stage == 2) {
int64_t s1 = __USAT(param_s1 + inlet_s1, 27);
int32_t de;
MTOF(-param_d - inlet_d, de);
de = 0x7FFFFFFF - (de >> 2);
val = (s1 << 4) + (___SMMUL(val - (s1 << 4), de) << 1);
if ((val >= ((s1 << 4) - 10000000)) && (val <= ((s1 << 4) + 10000000))) {
stage = 3;
}
} else if (stage == 3) {
int64_t s2 = __USAT(param_s2 + inlet_s2, 27);
int32_t ds1;
MTOF(-param_ds1 - inlet_ds1, ds1);
ds1 = 0x7FFFFFFF - (ds1 >> 2);
val = (s2 << 4) + (___SMMUL(val - (s2 << 4), ds1) << 1);
if ((val >= ((s2 << 4) - 10000000)) && (val <= ((s2 << 4) + 10000000))) {
stage = 4;
}
} else if (stage == 4) {
int64_t s1 = __USAT(param_s1 + inlet_s1, 27);
int32_t ds2;
MTOF(-param_ds2 - inlet_ds2, ds2);
ds2 = 0x7FFFFFFF - (ds2 >> 2);
val = (s1 << 4) + (___SMMUL(val - (s1 << 4), ds2) << 1);
if ((val >= ((s1 << 4) - 10000000)) && (val <= ((s1 << 4) + 10000000))) {
stage = 3;
}
}
outlet_env = val >> 4;
outlet_stage = stage;
