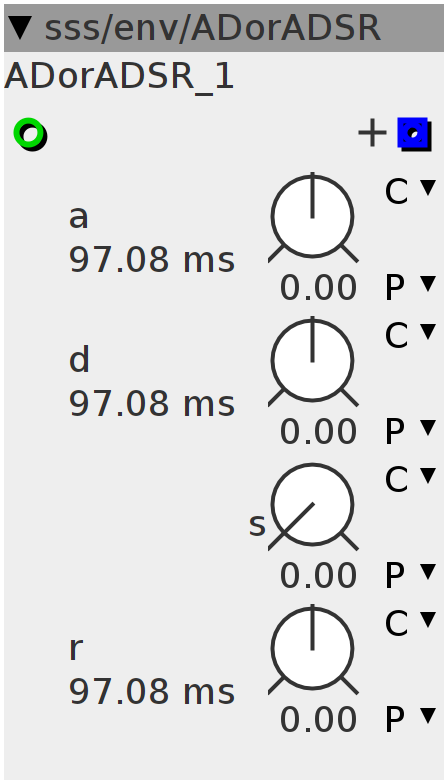

ADorADSR
Auto-switching attack/decay or attack/decay/sustain/release envelope trigger=1->AD envelope trigger=2->ADSR envelope
Inlets
int32 gate
Outlets
frac32.positive envelope output
Parameters
frac32.s.map.klineartime.exp2 a
frac32.s.map.kdecaytime.exp d
frac32.s.map.kdecaytime.exp r
frac32.u.map s
Declaration
int8_t stage;
int ntrig;
int32_t val;
int mode;
int32_t R;
int32_t S;
int pv;
Init
stage = 0;
ntrig = 0;
val = 0;
Control Rate
if ((pv == 2) && (inlet_gate == 1)) {
ntrig = 0;
}
if ((inlet_gate > 0) && !ntrig) {
mode = inlet_gate;
if (mode == 1) {
R = param_d;
S = 0;
}
if (mode == 2) {
R = param_r;
S = param_s;
}
stage = 1;
ntrig = 1;
}
if (!(inlet_gate > 0) && ntrig) {
stage = 0;
ntrig = 0;
}
if (stage == 0) {
val = ___SMMUL(val, R) << 1;
} else if (stage == 1) {
val = val + param_a;
if (val < 0) {
val = 0x7FFFFFFF;
stage = 2;
}
} else if (stage == 2) {
val = (S << 4) + (___SMMUL(val - (S << 4), param_d) << 1);
}
outlet_env = val >> 4;
pv = inlet_gate;
