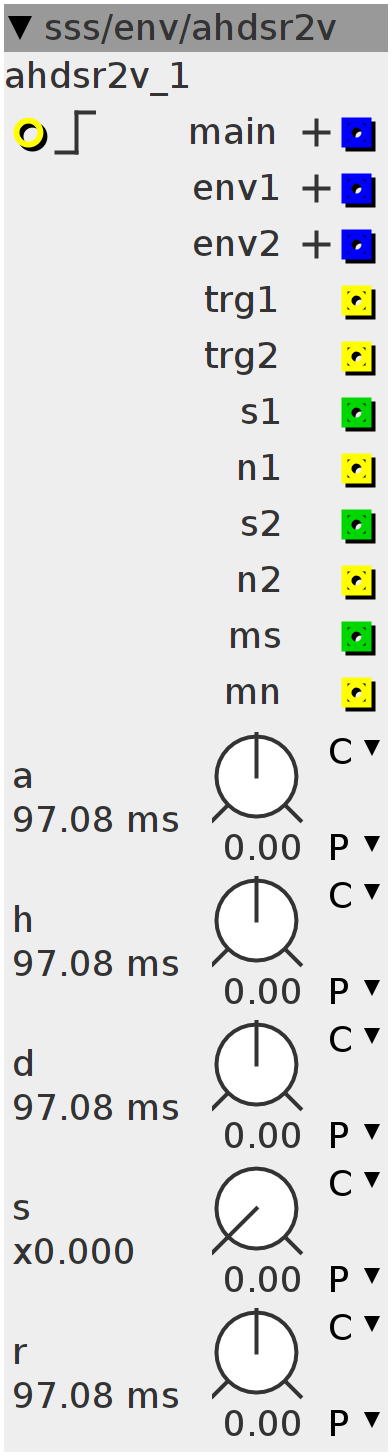

ahdsr2v
2 voice Attack/hold/decay/sustain/release envelope, linear attack, exponential decay and release. The main out gives the highest envelope (max of 1/2), this is how it would be if just a single envelope was used (monophonic). Use this, for example, for a filter or if you're using only a single oscillator. Envelope 1 and 2 are used together with 2 oscillators and vca's to produce a dual-voice. With every new gate, the next envelope goes into attack stage and the other is forced into release state, fading out the voice.
Inlets
bool32.rising trigger
Outlets
frac32.positive main
frac32.positive envelope output
frac32.positive env2
bool32 trg1
bool32 trg2
bool32 n1
bool32 n2
bool32 mn
int32 s1
int32 s2
int32 ms
Parameters
frac32.s.map.klineartime.exp a
frac32.s.map.klineartime.exp h
frac32.s.map.kdecaytime.exp d
frac32.s.map.kdecaytime.exp r
frac32.u.map.gain s
int8_t stage;
int ntrig;
int32_t val;
int32_t vol;
bool sel;
int32_t hold;
uint32_t v30 = 1 << 30;
int prv;ntrig = 0;
val = 0;outlet_trg1 = 0;
outlet_trg2 = 0;
if ((inlet_trig > 0) && !ntrig) {
sel = (sel + 1) & 1;
if (sel == 0) {
outlet_trg1 = 1;
} else {
outlet_trg2 = 1;
}
hold = 0;
uint32_t tmp = vol;
vol = val;
val = tmp;
ntrig = 1;
stage = 1;
} else if (!(inlet_trig > 0)) {
ntrig = 0;
stage = 0;
}
vol = ___SMMUL(vol, param_r) << 1;
if (stage == 0) {
val = ___SMMUL(val, param_r) << 1;
} else if (stage == 3) {
val = param_s + (___SMMUL(val - param_s, param_d) << 1);
} else if (stage == 2) {
int32_t t;
MTOF(-param_h, t);
hold = hold + (t >> 3);
if (hold < 0) {
hold = 0x7FFFFFFF;
stage = 3;
}
} else if (stage == 1) {
int32_t t;
MTOF(-param_a, t);
val = val + (t >> 3);
if (val < 0) {
val = 0x7FFFFFFF;
stage = 2;
}
}
if (sel == 0) {
outlet_env1 = val >> 4;
outlet_env2 = vol >> 4;
outlet_s1 = stage;
outlet_s2 = 0;
outlet_n2 = 0;
outlet_n1 = !(stage == prv) ? 1 : 0;
} else if (sel == 1) {
outlet_env1 = vol >> 4;
outlet_env2 = val >> 4;
outlet_s2 = stage;
outlet_s1 = 0;
outlet_n1 = 0;
outlet_n2 = !(stage == prv);
}
outlet_ms = stage;
outlet_mn = !(stage == prv);
outlet_main = (val > vol ? val : vol) >> 4;
prv = stage;
