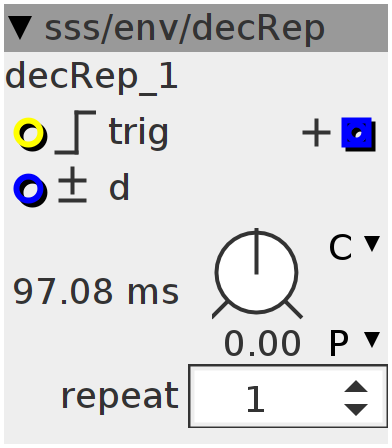

decRep
decay envelope, linear ramp, modulation input
Inlets
bool32.rising trigger
frac32.bipolar decay time
Outlets
frac32.positive envelope output
Parameters
int32 repeat
frac32.s.map.klineartime.exp d
Declaration
int32_t val1;
int32_t val2;
int ntrig;
Init
val1 = 0;
val2 = 0;
ntrig = 0;
Control Rate
if ((inlet_trig > 0) && !ntrig) {
val1 = 1 << 27;
val2 = 1 << 27;
ntrig = 1;
} else {
if (!(inlet_trig > 0))
ntrig = 0;
int32_t t;
int32_t dt = param_d + inlet_d;
MTOF(-dt, t);
val1 -= t >> 8;
int32_t in = -inlet_d - param_d;
int32_t c;
MTOFEXTENDED(in, c);
c = 0x7FFFFFFF - (c >> 2);
val2 = ___SMMUL(val2, c) << 1;
if (val1 < 0)
val1 = 0;
}
outlet_env = (((val1 * param_repeat & ((1 << 27) - 1)) +
(val2 * param_repeat & ((1 << 27) - 1))) &
((1 << 28) - 1)) >>
1;
