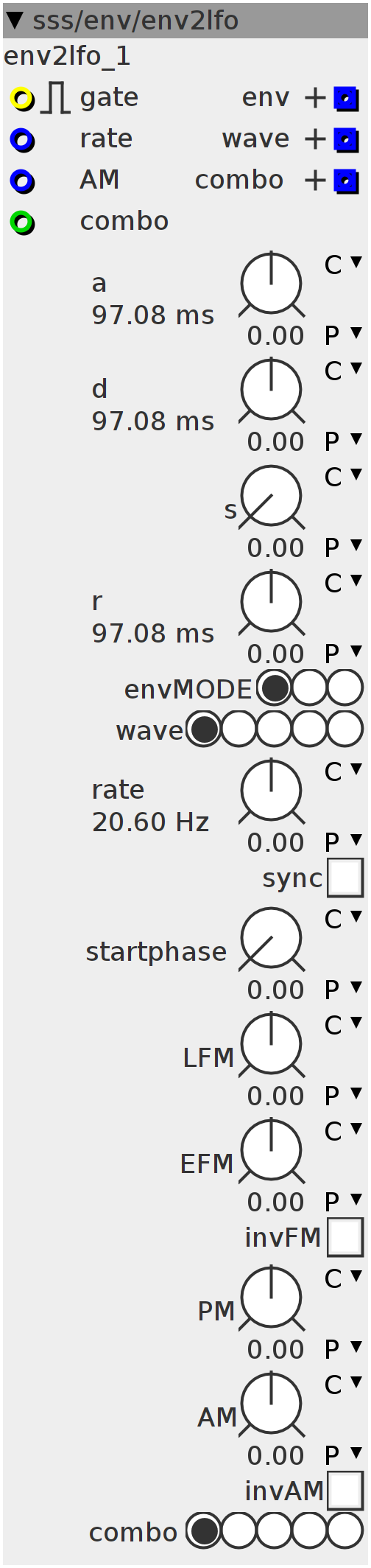

env2lfo
Combination of a 3 mode envelope and an internally modulated LFO. envelopes: 0=attack/release envelope. 1=attack/decay/sustain/release envelope 2=attack/hold high/release waveforms: 0=sine 1=tri 2=saw 3=ramp 4=square (all non-alliased) combo-modes: 0=select envelope, AM controls maximum level 1=select LFO, AM controls maximum level 2=AM morphs between envelope and LFO with middle position being an amplitude modulation of envelope and LFO. 3=AM morphs between envelope and LFO 4=envelope, AM sums/subtracts amplitude modulated LFO invAM inverts the envelope (high->low,low->high) before doing AM with the LFO.
Inlets
bool32.risingfalling gate
frac32 rate
frac32 AM
int32 combo
Outlets
frac32.positive envelope output
frac32.positive wave
frac32.positive combo
Parameters
bool32.tgl sync
bool32.tgl invFM
bool32.tgl invAM
frac32.s.map LFM
frac32.s.map EFM
frac32.s.map PM
frac32.s.map AM
frac32.s.map.klineartime.exp2 a
frac32.s.map.kdecaytime.exp d
frac32.s.map.kdecaytime.exp r
frac32.u.map s
frac32.u.map startphase
int32.hradio envMODE
int32.hradio wave
int32.hradio combo
frac32.s.map.kpitch rate
int8_t stage;
int ntrig;
int32_t val;
uint32_t Phase;
int r;
int32_t sine;
int32_t wave;
int32_t env;
int32_t tmp;stage = 0;
ntrig = 0;
val = 0;
Phase = 0;
r = 1;if ((inlet_gate > 0) && !ntrig) {
stage = 1;
ntrig = 1;
}
if (!(inlet_gate > 0) && ntrig) {
stage = 0;
ntrig = 0;
}
if (stage == 0) {
val = ___SMMUL(val, param_r) << 1;
} else if (stage == 1) {
val = val + param_a;
if (val < 0) {
val = 0x7FFFFFFF;
if (param_envMODE == 1) {
stage = 2;
}
if (param_envMODE == 0) {
stage = 0;
}
}
} else if (stage == 2) {
val = (param_s << 4) + (___SMMUL(val - (param_s << 4), param_d) << 1);
}
env = val >> 4;
outlet_env = env;
if (param_invFM > 0) {
tmp = (1 << 27) - env;
} else {
tmp = env;
}
if (inlet_gate && r && param_sync) {
Phase = param_startphase << 5;
r = 0;
} else {
if (!inlet_gate)
r = 1;
}
int32_t freq;
MTOFEXTENDED(param_rate + inlet_rate + ___SMMUL(param_EFM << 3, tmp << 2),
freq);
freq += ___SMMUL(param_LFM << 3, ___SMMUL(freq << 5, tmp << 4) << 2);
Phase += freq >> 2;
uint32_t P1 = Phase + (___SMMUL(env << 3, param_PM << 2) << 5);
switch (param_wave) {
case 0:
SINE2TINTERP(P1, sine);
break;
case 1:
sine = P1 - (1 << 31);
sine = sine > 0 ? sine : -sine;
sine = sine - (1 << 30) << 1;
break;
case 2:
sine = P1 - (1 << 31);
break;
case 3:
sine = -P1 + (1 << 31);
break;
case 4:
sine = P1 > (1 << 31) ? (1 << 31) - 1 : -(1 << 31) + 1;
break;
}
outlet_wave = wave = (sine >> 4);
int32_t out;
int32_t AM;
int32_t am = param_AM + inlet_AM;
am = am + (1 << 27);
am = am > (1 << 28) ? (1 << 29) - am : am;
am = am - (1 << 27);
int combo = inlet_combo + param_combo;
combo = combo - (combo / 5) * 5;
switch (combo) {
case 0:
if (param_invAM > 0) {
env = (1 << 27) - env;
}
out = ___SMMUL(am << 3, env << 2);
break;
case 1:
if (param_invAM > 0) {
if (wave > 0) {
wave = (1 << 27) - wave;
} else {
wave = (-1 << 27) - wave;
}
}
out = ___SMMUL(wave << 3, am << 2);
break;
case 2:
AM = am > 0 ? am : -am;
if (param_invAM > 0) {
env = (1 << 27) - env;
}
out = ___SMMUL(___SMMUL(env << 3, wave << 2) << 3, (1 << 27) - AM << 2);
if (am > 0) {
out += ___SMMUL(AM << 3, wave << 2);
} else {
out += ___SMMUL(AM << 3, env << 2);
}
break;
case 3:
tmp = (am >> 1) + (1 << 26);
if (param_invAM > 0) {
env = (1 << 27) - env;
}
out =
___SMMUL((1 << 27) - tmp << 3, env << 2) + ___SMMUL(tmp << 3, wave << 2);
break;
case 4:
if (param_invAM > 0) {
tmp = (1 << 27) - env;
} else {
tmp = env;
}
out = __SSAT(env + ___SMMUL(am << 3, ___SMMUL(tmp << 3, wave << 2) << 2), 28);
break;
}
outlet_combo = out;
