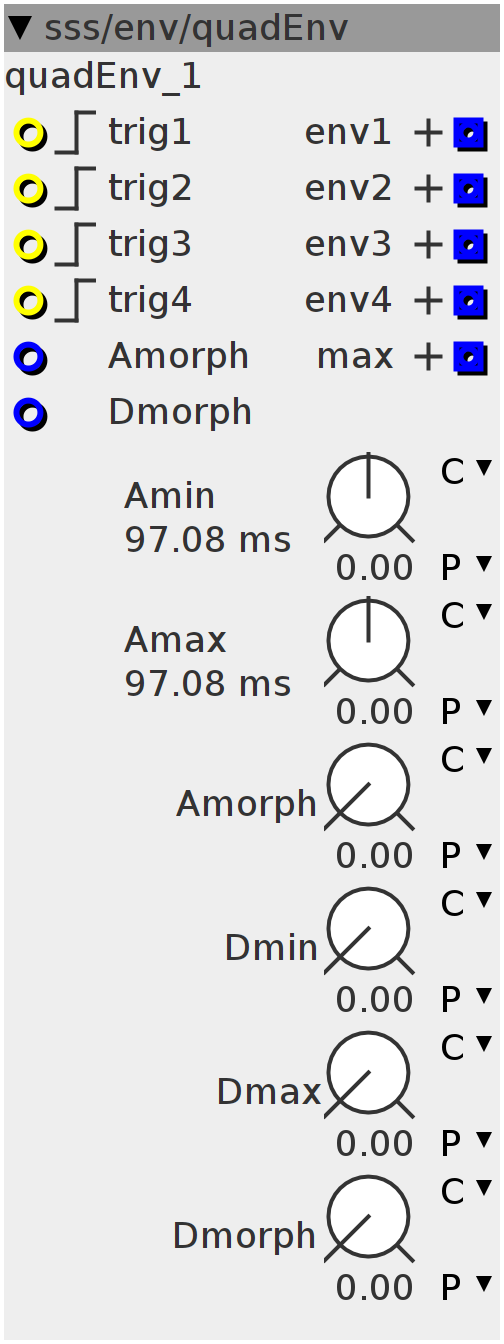

quadEnv
Quad Attack/decay envelope, linear attack, exponential decay. "Amin", "Amax", "Dmin" and "Dmax" define the range of the attack and decay values for all 4 envelope generators. Values are spreaded following a sine-curve of 45 degrees offset for each envelope. "Amorph" and "Dmorph" set the position within the sine-curve, allowing to morph all attack and decay values simultanuously between minimum and maximum range.
Inlets
bool32.rising trigger
bool32.rising trig2
bool32.rising trig3
bool32.rising trig4
frac32 Amorph
frac32 Dmorph
Outlets
frac32.positive envelope output
frac32.positive env2
frac32.positive env3
frac32.positive env4
frac32.positive max
Parameters
frac32.s.map.kdecaytime.exp Amax
frac32.u.map Amorph
frac32.u.map Dmin
frac32.u.map Dmax
frac32.u.map Dmorph
frac32.s.map.klineartime.exp Amin
int8_t stage[4];
int ntrig[4];
int32_t val[4];
int trig[4];
int32_t a[4];
int32_t d[4];
int32_t sine[8];
int i;
int32_t max1;
int32_t max2;for (i = 0; i < 4; i++) {
ntrig[i] = 0;
val[i] = 0;
}trig[0] = inlet_trig1;
trig[1] = inlet_trig2;
trig[2] = inlet_trig3;
trig[3] = inlet_trig4;
SINE2TINTERP((inlet_Amorph + param_Amorph) << 5, sine[0])
SINE2TINTERP((inlet_Amorph + param_Amorph + (1 << 26)) << 5, sine[1])
sine[0] = (sine[0] >> 5) + (1 << 26);
sine[1] = (sine[1] >> 5) + (1 << 26);
sine[2] = (1 << 27) - sine[0];
sine[3] = (1 << 27) - sine[1];
SINE2TINTERP((inlet_Dmorph + param_Dmorph) << 5, sine[4])
SINE2TINTERP((inlet_Dmorph + param_Dmorph + (1 << 26)) << 5, sine[5])
sine[4] = (sine[4] >> 5) + (1 << 26);
sine[5] = (sine[5] >> 5) + (1 << 26);
sine[6] = (1 << 27) - sine[4];
sine[7] = (1 << 27) - sine[5];
for (i = 0; i < 4; i++) {
a[i] = (1 << 27) - param_Amin -
___SMMUL((param_Amax - param_Amin) << 3, sine[i] << 2);
d[i] = (((1 << 27) - param_Dmin) -
___SMMUL((param_Dmax - param_Dmin) << 3, sine[i + 4] << 2));
d[i] = ___SMMUL(d[i] << 3, d[i] << 2);
if ((trig[i] > 0) && !ntrig[i]) {
ntrig[i] = 1;
stage[i] = 1;
} else if (!(trig[i] > 0)) {
ntrig[i] = 0;
}
if (stage[i] == 0) {
val[i] = val[i] - (___SMMUL(val[i], d[i]) << 1);
} else {
int32_t t;
MTOF(a[i], t);
val[i] = val[i] + (t >> 3);
if (val[i] < 0) {
val[i] = 0x7FFFFFFF;
stage[i] = 0;
}
}
}
outlet_env1 = val[0] >> 4;
outlet_env2 = val[1] >> 4;
outlet_env3 = val[2] >> 4;
outlet_env4 = val[3] >> 4;
max1 = outlet_env1 > outlet_env2 ? outlet_env1 : outlet_env2;
max2 = max1 > outlet_env3 ? max1 : outlet_env3;
outlet_max = max2 > outlet_env4 ? max2 : outlet_env4;
