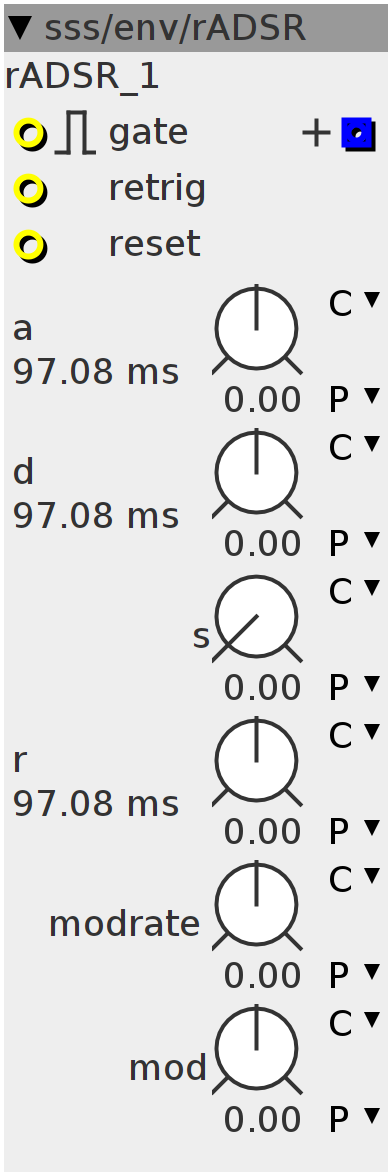

rADSR
Attack/decay/sustain/release envelope with retrigger and hard-reset inputs
Inlets
bool32.risingfalling gate
bool32 retrig
bool32 reset
Outlets
frac32.positive envelope output
Parameters
frac32.s.map.kdecaytime.exp d
frac32.s.map.kdecaytime.exp r
frac32.u.map s
frac32.s.map modrate
frac32.s.map mod
frac32.s.map.klineartime.exp2 a
int8_t stage;
int ntrig;
int32_t val;
bool rtrg;
bool rst;
uint32_t cnt;stage = 0;
ntrig = 0;
val = 0;int32_t rate;
MTOF(param_modrate, rate)
rate = rate >> 3;
int32_t base;
MTOF(0, base)
float32_t ratio;
int32_t mod;
MTOF(___SMMUL(-param_mod, cnt), mod)
ratio = (float32_t)base / mod;
if (inlet_gate > 0) {
cnt = __USAT(cnt + rate, 30);
}
bool retrig = inlet_retrig && inlet_gate;
if ((retrig > 0) && !rtrg) {
rtrg = 1;
stage = 1;
cnt = 0;
} else if (retrig < 1) {
rtrg = 0;
}
if ((inlet_reset > 0) && !rst) {
rst = 1;
val = 0;
cnt = 0;
stage = 1;
} else if (inlet_reset < 1) {
rst = 0;
}
if ((inlet_gate > 0) && !ntrig) {
stage = 1;
ntrig = 1;
cnt = 0;
}
if (!(inlet_gate > 0) && ntrig) {
stage = 0;
ntrig = 0;
}
if (stage == 0) {
val = ___SMMUL(val, param_r * ratio) << 1;
} else if (stage == 1) {
val = val + param_a;
if (val < 0) {
val = 0x7FFFFFFF;
stage = 2;
}
} else if (stage == 2) {
val = (param_s << 4) + (___SMMUL(val - (param_s << 4), param_d) << 1);
}
outlet_env = val >> 4;
