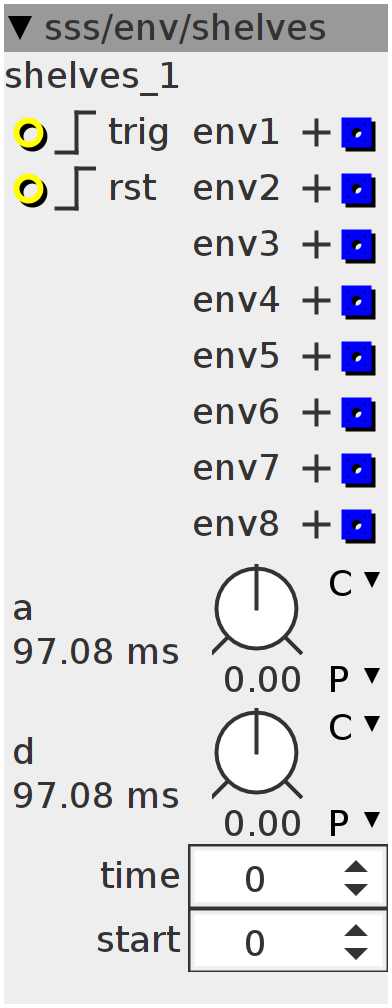

shelves
8x Attack/decay envelope, linear attack and decay envelope 1 is triggered at each high-gate at the trigger input. The other envelopes are triggered at a clock-divided rate. The clock-divisions to be used are set with the "time" knob. The clock-division also divides the slope-rates based on the A and D parameters. "start" offsets the reset-position. When zero, all clocks will trigger at first trigger after reset. Higher numbers will create different combinations of phase-relations between envelopes.
Inlets
bool32.rising trigger
bool32.rising rst
Outlets
frac32.positive envelope output
frac32.positive env2
frac32.positive env3
frac32.positive env4
frac32.positive env5
frac32.positive env6
frac32.positive env7
frac32.positive env8
Parameters
frac32.s.map.klineartime.exp a
frac32.s.map.klineartime.exp d
int32 time
int32 start
int8_t stage[8];
int ntrig;
int32_t val[8];
uint32_t cnt[8];
int i;
int tim[8][8] = {
{1, 2, 3, 4, 5, 6, 7, 8}, {1, 2, 4, 8, 16, 32, 64, 128},
{1, 2, 3, 4, 6, 8, 12, 16}, {1, 2, 3, 4, 8, 9, 16, 27},
{1, 3, 6, 9, 12, 15, 18, 21}, {1, 3, 9, 27, 81, 243, 729, 2187},
{1, 2, 4, 5, 8, 10, 15, 16}, {1, 2, 3, 4, 5, 6, 8, 10}};
bool rst;ntrig = 0;
for (i = 0; i < 8; i++) {
val[i] = 0;
}if ((inlet_rst > 0) && !rst) {
rst = 1;
for (i = 0; i < 8; i++) {
cnt[i] = tim[param_time][param_start];
}
} else if (inlet_rst == 0) {
rst = 0;
}
if ((inlet_trig > 0) && !ntrig) {
for (i = 0; i < 8; i++) {
if ((cnt[i] == 0) && (val[i] == 0)) {
stage[i] = 1;
}
cnt[i] += 1;
cnt[i] = cnt[i] >= tim[param_time][i] ? 0 : cnt[i];
}
ntrig = 1;
} else if (!(inlet_trig > 0)) {
ntrig = 0;
}
for (i = 0; i < 8; i++) {
if (stage[i] == 0) {
int32_t t;
MTOF(-param_d, t);
t = t / (tim[param_time][i]);
val[i] = __USAT(val[i] - (t >> 3), 31);
} else {
int32_t t;
MTOF(-param_a, t);
t = t / (tim[param_time][i]);
val[i] = val[i] + (t >> 3);
if (val[i] < 0) {
val[i] = 0x7FFFFFFF;
stage[i] = 0;
}
}
}
outlet_env1 = val[0] >> 4;
outlet_env2 = val[1] >> 4;
outlet_env3 = val[2] >> 4;
outlet_env4 = val[3] >> 4;
outlet_env5 = val[4] >> 4;
outlet_env6 = val[5] >> 4;
outlet_env7 = val[6] >> 4;
outlet_env8 = val[7] >> 4;
