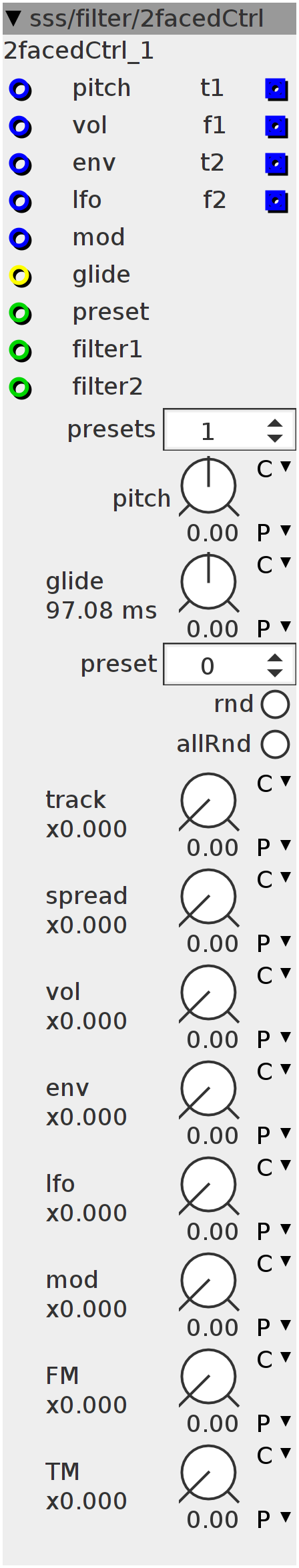

2facedCtrl
Control module for the 2facedFilter-module Connect several modulation sources and an internal randomisable modulation matrix will control the modulation-widths of all the modulation-inputs for each output. Level-controls are there for easy control over overall max-modulation-widths.
Inlets
frac32 connect to oscillator's pitch (for key-tracking)
frac32 connect to the velocity or volume envelope
frac32 connect to a dedicated filter-envelope
frac32 connect to a LFO
frac32 connect a pattern/CV generator
bool32 when high, glide is applied to the channels that have their glide selected(random)
int32 connect to pattern/CV generator to automate modulation-width-presets
int32 connect to the filter1 selector for automatic modulation-direction-adjustments for the different filter-types
int32 connect to the filter2 selector for automatic modulation-direction-adjustments for the different filter-types
Outlets
frac32 t1
frac32 f1
frac32 t2
frac32 f2
Parameters
int32 select which preset will be used for automation-width-control
bool32.mom only randomises modulation-widths of selected preset
bool32.mom randomises modulation-widths for alll presets
frac32.u.map.gain sets modulation width of tracking the pitch
frac32.u.map.gain sets modulation width of "fixed" spreading
frac32.u.map.gain sets modulation width of vol-input
frac32.u.map.gain sets modulation width of env-input
frac32.u.map.gain sets modulation width of lfo-input
frac32.u.map.gain sets modulation width of mod-input
frac32.u.map.gain controls overall frequency-modulation width
frac32.u.map.gain controls overall time-modulation width
frac32.s.map main pitch-offset for both time and frequency
frac32.s.map.kdecaytime.exp sets glide-rate when glide is used
Attributes
spinner presets
static const uint32_t LENGTH = (28 * attr_presets);
int32_t t[4];
int32_t T[4];
int16_t *array;
bool rnd;
int i;
bool all;static int16_t _array[LENGTH] __attribute__((section(".sdram")));
array = &_array[0];
for (i = 0; i < LENGTH; i++) {
array[i] = (int32_t)(GenerateRandomNumber());
}int32_t glide;
MTOF(-param_glide, glide)
int32_t preset = param_preset + inlet_preset;
preset = preset - preset / attr_presets * attr_presets;
preset += preset < 0 ? attr_presets : 0;
preset = preset * 28;
int mode[2];
mode[0] = (inlet_filter1 & 3);
mode[1] = (inlet_filter2 & 3);
if ((param_rnd > 0) && !rnd) {
rnd = 1;
for (i = preset; i < (28 + preset); i++) {
array[i] = (int32_t)(GenerateRandomNumber());
}
} else if (param_rnd < 1) {
rnd = 0;
}
if ((param_allRnd > 0) && !all) {
all = 1;
for (i = 0; i < LENGTH; i++) {
array[i] = (int32_t)(GenerateRandomNumber());
}
} else if (param_allRnd < 1) {
all = 0;
}
for (i = 0; i < 4; i++) {
t[i] = param_pitch >> 16;
int32_t r;
int dir;
// inlet_pitch
r = array[preset + i];
if (r > 0) {
t[i] =
__SSAT(t[i] + ___SMMUL(___SMMUL(r, inlet_pitch) << 1, param_track), 13);
}
// inlet_vol
r = array[preset + i + 4];
if (r > 0) {
if (((i == 1) || (i == 3)) && (mode[i >> 1] == 1)) {
r = -r;
} else {
r -= (1 << 14);
}
r = ___SMMUL(r, inlet_vol) << 1;
t[i] = __SSAT(t[i] + ___SMMUL(r, param_vol), 13);
}
// inlet_env
r = array[preset + i + 8];
if (r > 0) {
if ((i == 1) || (i == 3)) {
if (mode[i >> 1] == 1) {
r = -r;
} else if (mode[i >> 1] > 1) {
r -= (1 << 14);
}
} else {
r -= (1 << 14);
}
r = ___SMMUL(r, inlet_env) << 1;
t[i] = __SSAT(t[i] + ___SMMUL(r, param_env), 13);
}
// inlet_lfo
r = array[preset + i + 12];
if (r > 0) {
int32_t lfo = inlet_lfo;
if (((i == 1) || (i == 3)) &&
((mode[i >> 1] == 1) || (mode[i >> 1] == 3))) {
lfo = -lfo;
}
t[i] = __SSAT(
t[i] + ___SMMUL(___SMMUL(r - (1 << 14), inlet_lfo) << 1, param_lfo),
13);
}
// inlet_mod
r = array[preset + i + 16];
if (r > 0) {
if ((i == 1) || (i == 3)) {
if (mode[i >> 1] == 1) {
r = -r;
} else if (mode[i >> 1] > 1) {
r -= (1 << 14);
}
} else {
r -= (1 << 14);
}
r = ___SMMUL(r, inlet_mod) << 1;
t[i] = __SSAT(t[i] + ___SMMUL(r, param_mod), 13);
}
// spread
r = array[preset + i + 20];
if (r > 0) {
if ((i == 0) || (i == 2)) {
t[i] = __SSAT(t[i] + ___SMMUL(r - (1 << 14), param_spread >> 3), 13);
} else if (mode[i >> 1] == 1) {
t[i] =
__SSAT(t[i] + ___SMMUL((r >> 1) - (1 << 15), param_spread >> 3), 13);
} else if (mode[i >> 1] < 1) {
t[i] = __SSAT(t[i] + ___SMMUL((r >> 1), param_spread >> 3), 13);
} else if (mode[i >> 1] > 1) {
t[i] = __SSAT(t[i] + ___SMMUL(r - (1 << 14), param_spread >> 3), 13);
}
}
// glide
if (array[preset + 24 + i] <= 0) {
T[i] = (__SSAT(t[i], 13) << 16);
} else if ((array[preset + 24 + i] > 0) && (inlet_glide > 0)) {
T[i] = ___SMMLA(((__SSAT(t[i], 13) << 16) - T[i]) << 1, glide, T[i]);
}
}
outlet_t1 = ___SMMUL(T[0], param_TM) << 1;
outlet_f1 = ___SMMUL(T[1], param_FM) << 1;
outlet_t2 = ___SMMUL(T[2], param_TM) << 1;
outlet_f2 = ___SMMUL(T[3], param_FM) << 1;
