3cousins
Same topology as 3 sisters eurorack filter module, but no effort is done to make it sound like it. Also added some extra individual controls for the three seperate bands. All three filters have a resonance feedback control that goes in two directions. Negative values will create a lot of distorting resonance at high settings and gives a "fat ring" Positive values have a thinner resonance attitude.

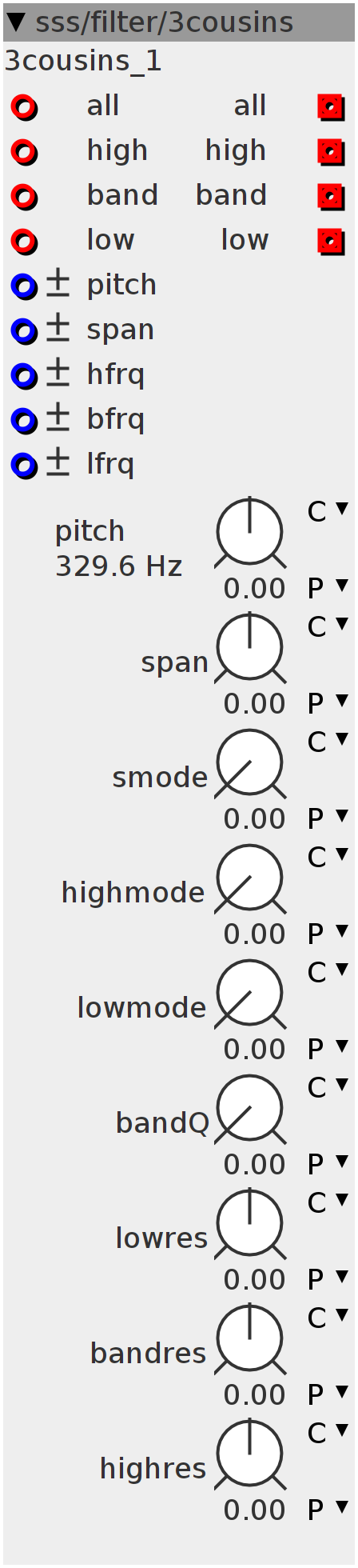

Inlets
frac32buffer input to all filter inputs
frac32buffer input for highpass filter
frac32buffer input for bandpass filter
frac32buffer input for lowpass filter
frac32.bipolar main center frequency
frac32.bipolar span
frac32.bipolar works only when smode it higher then 0
frac32.bipolar works only when smode it higher then 0
frac32.bipolar works only when smode it higher then 0
Outlets
frac32buffer summed output of all filters
frac32buffer highpass filter output
frac32buffer bandpass filter output
frac32buffer lowpass filter output
Parameters
frac32.u.map at zero, span depends on span parameter, when high, fades in input frequencies (eg for vowel frequencies)
frac32.u.map fades highpass filter into a bandpass filter
frac32.u.map fades lowpass filter into a bandpass filter
frac32.u.map fades from full bandwidth to narrow bandwidth for all 3 filters (for high and lowpass this also means different slopes if they're in low/highpass mode)
frac32.s.map.pitch center frequency
frac32.s.map spans low and high frequencies
frac32.s.map resonance amount for lowpass
frac32.s.map resonance amount for bandpass
frac32.s.map resonance amount for highpass
int32_t lp[4], hp[4], bp[4], span[3];
int32_t flp, fhp, fbp;
int32_t v27 = 1 << 27;
int i;int32_t lfrq, blfrq, bhfrq, hfrq;
int32_t fofs[3];
int32_t spn = __SSAT(param_span + inlet_span, 28);
fofs[0] = inlet_lfrq;
fofs[1] = inlet_bfrq;
fofs[2] = inlet_hfrq;
span[0] = -spn;
span[1] = 0;
span[2] = spn;
for (i = 0; i < 3; i++) {
span[i] += ___SMMUL(param_smode, fofs[i] - span[i]) << 5;
}
int32_t pitch = __SSAT(param_pitch + inlet_pitch, 28);
MTOF(__SSAT(pitch + span[0], 28), lfrq);
MTOF(__SSAT(pitch + span[2] - (___SMMUL(span[2], param_bandQ) << 5) + span[1],
28),
blfrq);
MTOF(__SSAT(pitch + span[0] - (___SMMUL(span[0], param_bandQ) << 5) + span[1],
28),
bhfrq);
MTOF(__SSAT(pitch + span[2], 28), hfrq);
int32_t lbfrq, hbfrq;
int32_t bandQ = v27 - param_bandQ;
int32_t width = ___SMMUL(-v27 - pitch, bandQ) << 5;
MTOF(__SSAT(pitch + span[0] + width, 28), lbfrq);
width = ___SMMUL(v27 - pitch, bandQ) << 5;
MTOF(__SSAT(pitch + span[2] + width, 28), hbfrq);int32_t tmp = inlet_all + inlet_low + flp;
int32_t in = tmp;
for (i = 0; i < 4; i++) {
lp[i] += ___SMMUL(tmp - lp[i], i & 1 ? lbfrq : lfrq) << 1;
if (i & 1) {
tmp = lp[i] + (___SMMUL(tmp - (lp[i] << 1), param_lowmode) << 5);
} else if (!(i & 1)) {
tmp = lp[i];
}
if (i == 1) {
flp = ___SMMUL(__SSAT((param_lowres > 0 ? in : 0) - tmp, 27), param_lowres)
<< 6;
}
}
outlet_low = tmp;
int32_t low = tmp;
tmp = inlet_all + inlet_band + fbp;
in = tmp;
for (i = 0; i < 4; i++) {
if (i & 1) {
bp[i] += ___SMMUL(tmp - bp[i], bhfrq) << 1;
tmp -= bp[i];
} else if (!(i & 1)) {
bp[i] += ___SMMUL(tmp - bp[i], blfrq) << 1;
tmp = bp[i];
}
if (i == 1) {
fbp =
___SMMUL(__SSAT((param_bandres > 0 ? in : 0) - tmp, 27), param_bandres)
<< 6;
}
}
outlet_band = tmp;
int32_t band = tmp;
tmp = inlet_all + inlet_high + fhp;
in = tmp;
for (i = 0; i < 4; i++) {
hp[i] += ___SMMUL(tmp - hp[i], i & 1 ? hbfrq : hfrq) << 1;
if (i & 1) {
tmp = tmp - hp[i] + (___SMMUL((hp[i] << 1) - tmp, param_highmode) << 5);
} else if (!(i & 1)) {
tmp -= hp[i];
}
if (i == 1) {
fhp =
___SMMUL(__SSAT((param_highres > 0 ? in : 0) - tmp, 27), param_highres)
<< 6;
}
}
outlet_high = tmp;
outlet_all = low + band + tmp;
