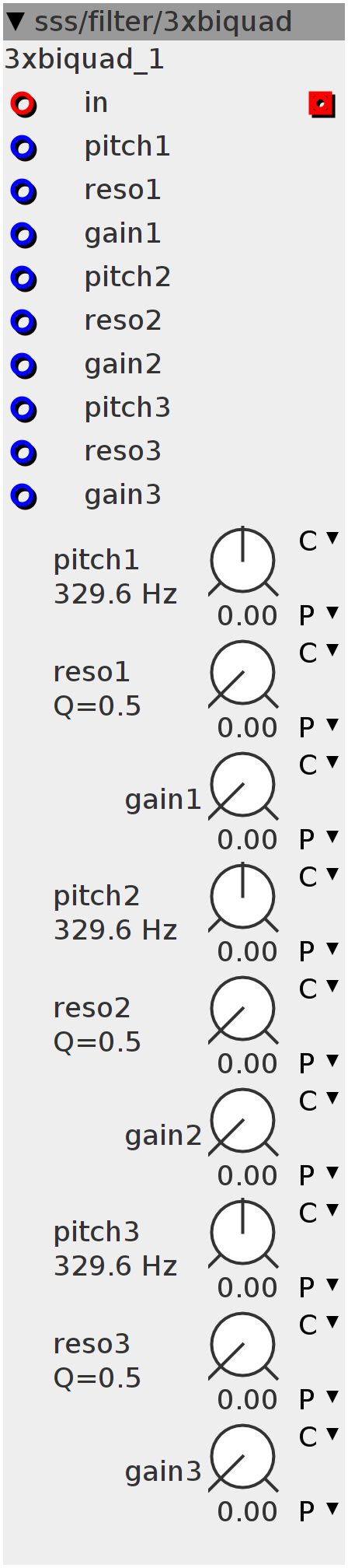

3xbiquad
2-pole resonant band-pass filter (biquad)
Inlets
frac32buffer filter input
frac32 pitch
frac32 filter resonance
frac32 gain1
frac32 pitch2
frac32 reso2
frac32 gain2
frac32 pitch3
frac32 reso3
frac32 gain3
Outlets
frac32buffer filter output
Parameters
frac32.s.map.pitch pitch1
frac32.s.map.pitch pitch2
frac32.s.map.pitch pitch3
frac32.u.map.filterq reso1
frac32.u.map.filterq reso2
frac32.u.map.filterq reso3
frac32.u.map gain1
frac32.u.map gain2
frac32.u.map gain3
biquad_state bs1;
biquad_coefficients bc1;
biquad_state bs2;
biquad_coefficients bc2;
biquad_state bs3;
biquad_coefficients bc3;
int32_t tmp[BUFSIZE];
int i;biquad_clearstate(&bs1);
biquad_clearstate(&bs2);
biquad_clearstate(&bs3);int32_t freq1;
MTOF(param_pitch1, freq1);
freq1 += inlet_pitch1;
int32_t freq2;
MTOF(param_pitch2, freq2);
freq2 += inlet_pitch2;
int32_t freq3;
MTOF(param_pitch3, freq3);
freq3 += inlet_pitch3;
int32_t gain1 = param_gain1 + inlet_gain1;
int32_t gain2 = param_gain2 + inlet_gain2;
int32_t gain3 = param_gain3 + inlet_gain3;
biquad_bp_coefs(&bc1, freq1,
INT_MAX - (__USAT(inlet_reso1 + param_reso1, 27) << 4));
biquad_dsp(&bs1, &bc1, inlet_in, outlet_out);
for (i = 0; i < BUFSIZE; i++) {
tmp[i] = ___SMMUL(outlet_out[i] << 2, gain1 << 3);
}
biquad_bp_coefs(&bc2, freq2,
INT_MAX - (__USAT(inlet_reso2 + param_reso2, 27) << 4));
biquad_dsp(&bs2, &bc2, inlet_in, outlet_out);
for (i = 0; i < BUFSIZE; i++) {
tmp[i] += ___SMMUL(outlet_out[i] << 2, gain2 << 3);
}
biquad_bp_coefs(&bc3, freq3,
INT_MAX - (__USAT(inlet_reso3 + param_reso3, 27) << 4));
biquad_dsp(&bs3, &bc3, inlet_in, outlet_out);
for (i = 0; i < BUFSIZE; i++) {
outlet_out[i] = ___SMMUL(outlet_out[i] << 2, gain3 << 3);
outlet_out[i] += tmp[i];
}
