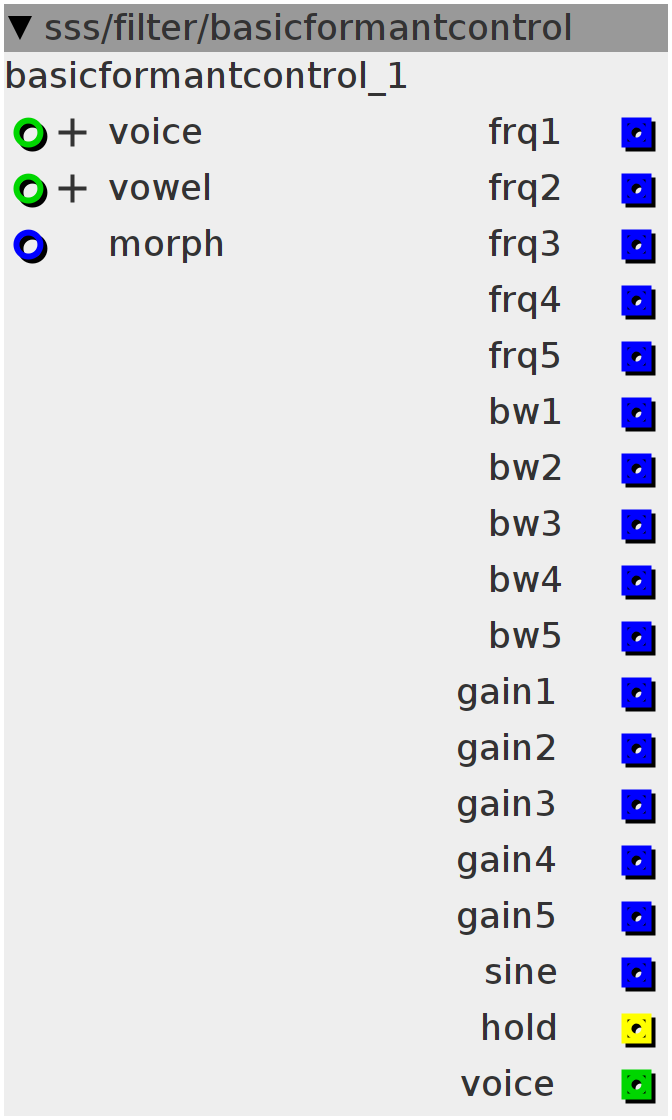

basicformantcontrol

basic formant controller connect all the outputs to the corresponding input of the formant filter. you can use the 8xsmoother from my "maths" folder to smooth out changes, so it sound more like talking.
Author: Remco van der Most
License: BSD
Github: sss/filter/basicformantcontrol.axo
Inlets

int32.positive selects between 5 voices (0=soprano, 1=tenor, 2=alto,3=bass,4=countertenor) Use saw-lfo on morph-input to update voice-input!!

int32.positive selects between 5 vowels (0=a,1=e,2=i, 3=o,4=u) Use saw-lfo on morph-input to update vowel-input!!

frac32 connect a saw-LFO (NOT bandlimited!) to the morph input to sample and hold the voice&vowel values and morph from the former to the next

Outlets

frac32 frq1

frac32 frq2

frac32 frq3

frac32 frq4

frac32 frq5

frac32 bw1

frac32 bw2

frac32 bw3

frac32 bw4

frac32 bw5

frac32 gain1

frac32 gain2

frac32 gain3

frac32 gain4

frac32 gain5

frac32 sine

bool32 hold

int32 voice

Declaration
int32_t _freq1[25];
int32_t _freq2[25];
int32_t _freq3[25];
int32_t _freq4[25];
int32_t _freq5[25];
int32_t _bw1[25];
int32_t _bw2[25];
int32_t _bw3[25];
int32_t _bw4[25];
int32_t _bw5[25];
int32_t _gain1[25];
int32_t _gain2[25];
int32_t _gain3[25];
int32_t _gain4[25];
int32_t _gain5[25];
int32_t sine;
int voicenext;
int vowelnext;
int voiceprev;
int vowelprev;
int trig;
int voc;
int vow;
Init
// soprano
_freq1[0] = 800 << 16;
_freq2[0] = 1150 << 16;
_freq3[0] = 2900 << 16;
_freq4[0] = 3900 << 16;
_freq5[0] = 4950 << 16;
_gain1[0] = 0;
_gain2[0] = -6 << 21;
_gain3[0] = -32 << 21;
_gain4[0] = -20 << 21;
_gain5[0] = -50 << 21;
_bw1[0] = 80 << 16;
_bw2[0] = 90 << 16;
_bw3[0] = 120 << 16;
_bw4[0] = 130 << 16;
_bw5[0] = 140 << 16;
_freq1[1] = 350 << 16;
_freq2[1] = 2000 << 16;
_freq3[1] = 2800 << 16;
_freq4[1] = 3600 << 16;
_freq5[1] = 4950 << 16;
_gain1[1] = 0;
_gain2[1] = -20 << 21;
_gain3[1] = -15 << 21;
_gain4[1] = -40 << 21;
_gain5[1] = -56 << 21;
_bw1[1] = 60 << 16;
_bw2[1] = 100 << 16;
_bw3[1] = 120 << 16;
_bw4[1] = 150 << 16;
_bw5[1] = 200 << 16;
_freq1[2] = 270 << 16;
_freq2[2] = 2140 << 16;
_freq3[2] = 2950 << 16;
_freq4[2] = 3900 << 16;
_freq5[2] = 4950 << 16;
_gain1[2] = 0;
_gain2[2] = -12 << 21;
_gain3[2] = -26 << 21;
_gain4[2] = -26 << 21;
_gain5[2] = -44 << 21;
_bw1[2] = 60 << 16;
_bw2[2] = 90 << 16;
_bw3[2] = 100 << 16;
_bw4[2] = 120 << 16;
_bw5[2] = 120 << 16;
_freq1[3] = 450 << 16;
_freq2[3] = 800 << 16;
_freq3[3] = 2830 << 16;
_freq4[3] = 3800 << 16;
_freq5[3] = 4950 << 16;
_gain1[3] = 0;
_gain2[3] = -11 << 21;
_gain3[3] = -22 << 21;
_gain4[3] = -22 << 21;
_gain5[3] = -50 << 21;
_bw1[3] = 70 << 16;
_bw2[3] = 80 << 16;
_bw3[3] = 100 << 16;
_bw4[3] = 130 << 16;
_bw5[3] = 135 << 16;
_freq1[4] = 325 << 16;
_freq2[4] = 700 << 16;
_freq3[4] = 2700 << 16;
_freq4[4] = 3800 << 16;
_freq5[4] = 4950 << 16;
_gain1[4] = 0;
_gain2[4] = -16 << 21;
_gain3[4] = -35 << 21;
_gain4[4] = -40 << 21;
_gain5[4] = -60 << 21;
_bw1[4] = 50 << 16;
_bw2[4] = 60 << 16;
_bw3[4] = 170 << 16;
_bw4[4] = 180 << 16;
_bw5[4] = 200 << 16;
// tenor
_freq1[5] = 650 << 16;
_freq2[5] = 1080 << 16;
_freq3[5] = 2650 << 16;
_freq4[5] = 2900 << 16;
_freq5[5] = 3250 << 16;
_gain1[5] = 0;
_gain2[5] = -6 << 21;
_gain3[5] = -7 << 21;
_gain4[5] = -8 << 21;
_gain5[5] = -22 << 21;
_bw1[5] = 80 << 16;
_bw2[5] = 90 << 16;
_bw3[5] = 120 << 16;
_bw4[5] = 130 << 16;
_bw5[5] = 140 << 16;
_freq1[6] = 400 << 16;
_freq2[6] = 1700 << 16;
_freq3[6] = 2600 << 16;
_freq4[6] = 3200 << 16;
_freq5[6] = 3580 << 16;
_gain1[6] = 0;
_gain2[6] = -15 << 21;
_gain3[6] = -12 << 21;
_gain4[6] = -14 << 21;
_gain5[6] = -20 << 21;
_bw1[6] = 70 << 16;
_bw2[6] = 80 << 16;
_bw3[6] = 100 << 16;
_bw4[6] = 120 << 16;
_bw5[6] = 120 << 16;
_freq1[7] = 290 << 16;
_freq2[7] = 1870 << 16;
_freq3[7] = 2800 << 16;
_freq4[7] = 3250 << 16;
_freq5[7] = 3540 << 16;
_gain1[7] = 0;
_gain2[7] = -15 << 21;
_gain3[7] = -18 << 21;
_gain4[7] = -20 << 21;
_gain5[7] = -30 << 21;
_bw1[7] = 40 << 16;
_bw2[7] = 90 << 16;
_bw3[7] = 100 << 16;
_bw4[7] = 120 << 16;
_bw5[7] = 120 << 16;
_freq1[8] = 400 << 16;
_freq2[8] = 800 << 16;
_freq3[8] = 2600 << 16;
_freq4[8] = 2800 << 16;
_freq5[8] = 3000 << 16;
_gain1[8] = 0;
_gain2[8] = -10 << 21;
_gain3[8] = -12 << 21;
_gain4[8] = -12 << 21;
_gain5[8] = -26 << 21;
_bw1[8] = 40 << 16;
_bw2[8] = 80 << 16;
_bw3[8] = 100 << 16;
_bw4[8] = 120 << 16;
_bw5[8] = 120 << 16;
_freq1[9] = 350 << 16;
_freq2[9] = 600 << 16;
_freq3[9] = 2700 << 16;
_freq4[9] = 2900 << 16;
_freq5[9] = 3300 << 16;
_gain1[9] = 0;
_gain2[9] = -20 << 21;
_gain3[9] = -17 << 21;
_gain4[9] = -14 << 21;
_gain5[9] = -26 << 21;
_bw1[9] = 40 << 16;
_bw2[9] = 60 << 16;
_bw3[9] = 100 << 16;
_bw4[9] = 120 << 16;
_bw5[9] = 120 << 16;
// alto
_freq1[10] = 800 << 16;
_freq2[10] = 1150 << 16;
_freq3[10] = 2800 << 16;
_freq4[10] = 3500 << 16;
_freq5[10] = 4950 << 16;
_gain1[10] = 0;
_gain2[10] = -4 << 21;
_gain3[10] = -20 << 21;
_gain4[10] = -36 << 21;
_gain5[10] = -60 << 21;
_bw1[10] = 80 << 16;
_bw2[10] = 90 << 16;
_bw3[10] = 120 << 16;
_bw4[10] = 130 << 16;
_bw5[10] = 140 << 16;
_freq1[11] = 400 << 16;
_freq2[11] = 1600 << 16;
_freq3[11] = 2700 << 16;
_freq4[11] = 3300 << 16;
_freq5[11] = 4950 << 16;
_gain1[11] = 0;
_gain2[11] = -24 << 21;
_gain3[11] = -30 << 21;
_gain4[11] = -35 << 21;
_gain5[11] = -60 << 21;
_bw1[11] = 60 << 16;
_bw2[11] = 80 << 16;
_bw3[11] = 120 << 16;
_bw4[11] = 150 << 16;
_bw5[11] = 200 << 16;
_freq1[12] = 350 << 16;
_freq2[12] = 1700 << 16;
_freq3[12] = 2700 << 16;
_freq4[12] = 3700 << 16;
_freq5[12] = 4950 << 16;
_gain1[12] = 0;
_gain2[12] = -20 << 21;
_gain3[12] = -30 << 21;
_gain4[12] = -36 << 21;
_gain5[12] = -60 << 21;
_bw1[12] = 50 << 16;
_bw2[12] = 100 << 16;
_bw3[12] = 120 << 16;
_bw4[12] = 150 << 16;
_bw5[12] = 200 << 16;
_freq1[13] = 450 << 16;
_freq2[13] = 800 << 16;
_freq3[13] = 2830 << 16;
_freq4[13] = 3500 << 16;
_freq5[13] = 4950 << 16;
_gain1[13] = 0;
_gain2[13] = -9 << 21;
_gain3[13] = -16 << 21;
_gain4[13] = -28 << 21;
_gain5[13] = -55 << 21;
_bw1[13] = 70 << 16;
_bw2[13] = 80 << 16;
_bw3[13] = 100 << 16;
_bw4[13] = 130 << 16;
_bw5[13] = 135 << 16;
_freq1[14] = 325 << 16;
_freq2[14] = 700 << 16;
_freq3[14] = 2530 << 16;
_freq4[14] = 3500 << 16;
_freq5[14] = 4950 << 16;
_gain1[14] = 0;
_gain2[14] = -12 << 21;
_gain3[14] = -30 << 21;
_gain4[14] = -40 << 21;
_gain5[14] = -64 << 21;
_bw1[14] = 50 << 16;
_bw2[14] = 60 << 16;
_bw3[14] = 170 << 16;
_bw4[14] = 180 << 16;
_bw5[14] = 200 << 16;
// bass
_freq1[15] = 600 << 16;
_freq2[15] = 1040 << 16;
_freq3[15] = 2250 << 16;
_freq4[15] = 2450 << 16;
_freq5[15] = 2750 << 16;
_gain1[15] = 0;
_gain2[15] = -7 << 21;
_gain3[15] = -9 << 21;
_gain4[15] = -9 << 21;
_gain5[15] = -20 << 21;
_bw1[15] = 60 << 16;
_bw2[15] = 70 << 16;
_bw3[14] = 110 << 16;
_bw4[15] = 120 << 16;
_bw5[15] = 130 << 16;
_freq1[16] = 400 << 16;
_freq2[16] = 1620 << 16;
_freq3[16] = 2400 << 16;
_freq4[16] = 2800 << 16;
_freq5[16] = 3100 << 16;
_gain1[16] = 0;
_gain2[16] = -12 << 21;
_gain3[16] = -9 << 21;
_gain4[16] = -12 << 21;
_gain5[16] = -18 << 21;
_bw1[16] = 40 << 16;
_bw2[16] = 80 << 16;
_bw3[15] = 100 << 16;
_bw4[16] = 120 << 16;
_bw5[16] = 120 << 16;
_freq1[17] = 250 << 16;
_freq2[17] = 1750 << 16;
_freq3[17] = 2600 << 16;
_freq4[17] = 3050 << 16;
_freq5[17] = 3340 << 16;
_gain1[17] = 0;
_gain2[17] = -30 << 21;
_gain3[17] = -16 << 21;
_gain4[17] = -22 << 21;
_gain5[17] = -28 << 21;
_bw1[17] = 60 << 16;
_bw2[17] = 90 << 16;
_bw3[16] = 100 << 16;
_bw4[17] = 120 << 16;
_bw5[17] = 120 << 16;
_freq1[18] = 400 << 16;
_freq2[18] = 750 << 16;
_freq3[18] = 2400 << 16;
_freq4[18] = 2900 << 16;
_freq5[18] = 2900 << 16;
_gain1[18] = 0;
_gain2[18] = -11 << 21;
_gain3[18] = -21 << 21;
_gain4[18] = -20 << 21;
_gain5[18] = -40 << 21;
_bw1[18] = 40 << 16;
_bw2[18] = 80 << 16;
_bw3[17] = 100 << 16;
_bw4[18] = 120 << 16;
_bw5[18] = 120 << 16;
_freq1[19] = 350 << 16;
_freq2[19] = 500 << 16;
_freq3[19] = 2400 << 16;
_freq4[19] = 2950 << 16;
_freq5[19] = 2950 << 16;
_gain1[19] = 0;
_gain2[19] = -20 << 21;
_gain3[19] = -32 << 21;
_gain4[19] = -28 << 21;
_gain5[19] = -36 << 21;
_bw1[19] = 40 << 16;
_bw2[19] = 80 << 16;
_bw3[19] = 100 << 16;
_bw4[19] = 120 << 16;
_bw5[19] = 120 << 16;
// countertenor
_freq1[20] = 660 << 16;
_freq2[20] = 1120 << 16;
_freq3[20] = 2750 << 16;
_freq4[20] = 3000 << 16;
_freq5[20] = 3350 << 16;
_gain1[20] = 0;
_gain2[20] = -6 << 21;
_gain3[20] = -23 << 21;
_gain4[20] = -24 << 21;
_gain5[20] = -38 << 21;
_bw1[20] = 80 << 16;
_bw2[20] = 90 << 16;
_bw3[20] = 120 << 16;
_bw4[20] = 130 << 16;
_bw5[20] = 140 << 16;
_freq1[21] = 440 << 16;
_freq2[21] = 1800 << 16;
_freq3[21] = 2700 << 16;
_freq4[21] = 3000 << 16;
_freq5[21] = 3300 << 16;
_gain1[21] = 0;
_gain2[21] = -14 << 21;
_gain3[21] = -18 << 21;
_gain4[21] = -20 << 21;
_gain5[21] = -20 << 21;
_bw1[21] = 70 << 16;
_bw2[21] = 80 << 16;
_bw3[21] = 100 << 16;
_bw4[21] = 120 << 16;
_bw5[21] = 120 << 16;
_freq1[22] = 270 << 16;
_freq2[22] = 1850 << 16;
_freq3[22] = 2900 << 16;
_freq4[22] = 3350 << 16;
_freq5[22] = 3590 << 16;
_gain1[22] = 0;
_gain2[22] = -24 << 21;
_gain3[22] = -24 << 21;
_gain4[22] = -36 << 21;
_gain5[22] = -36 << 21;
_bw1[22] = 40 << 16;
_bw2[22] = 90 << 16;
_bw3[22] = 100 << 16;
_bw4[22] = 120 << 16;
_bw5[22] = 120 << 16;
_freq1[23] = 430 << 16;
_freq2[23] = 820 << 16;
_freq3[23] = 2700 << 16;
_freq4[23] = 3000 << 16;
_freq5[23] = 3300 << 16;
_gain1[23] = 0;
_gain2[23] = -10 << 21;
_gain3[23] = -26 << 21;
_gain4[23] = -22 << 21;
_gain5[23] = -34 << 21;
_bw1[23] = 40 << 16;
_bw2[23] = 80 << 16;
_bw3[23] = 100 << 16;
_bw4[23] = 120 << 16;
_bw5[23] = 120 << 16;
_freq1[24] = 370 << 16;
_freq2[24] = 630 << 16;
_freq3[24] = 2750 << 16;
_freq4[24] = 3000 << 16;
_freq5[24] = 3400 << 16;
_gain1[24] = 0;
_gain2[24] = -20 << 21;
_gain3[24] = -23 << 21;
_gain4[24] = -30 << 21;
_gain5[24] = -34 << 21;
_bw1[24] = 40 << 16;
_bw2[24] = 60 << 16;
_bw3[24] = 100 << 16;
_bw4[24] = 120 << 16;
_bw5[24] = 120 << 16;
trig = 0;

voicenext = 1;
vowelnext = 1;
voiceprev = 1;
vowelprev = 1;
Control Rate
voc = inlet_voice > 4 ? 4 : inlet_voice;
vow = inlet_vowel > 4 ? 4 : inlet_vowel;
int32_t morph = inlet_morph;
if ((morph < (1 << 26)) && (!(trig))) {
  trig = 1;
  voiceprev = voicenext;
  voicenext = (voc * 5) + vow;
  outlet_hold = 1;
} else {
  outlet_hold = 0;
  if (morph > (1 << 26)) {
    trig = 0;
  }
}
SINE2TINTERP((morph << 4) - (1 << 30), sine)
sine = (sine >> 1) + (1 << 30);
int32_t ccomp = (1 << 31) - sine;
outlet_sine = ccomp >> 4;
outlet_frq1 =
    (___SMMUL(ccomp, _freq1[voiceprev]) + ___SMMUL(sine, _freq1[voicenext]));
outlet_frq2 =
    (___SMMUL(ccomp, _freq2[voiceprev]) + ___SMMUL(sine, _freq2[voicenext]));
outlet_frq3 =
    (___SMMUL(ccomp, _freq3[voiceprev]) + ___SMMUL(sine, _freq3[voicenext]));
outlet_frq4 =
    (___SMMUL(ccomp, _freq4[voiceprev]) + ___SMMUL(sine, _freq4[voicenext]));
outlet_frq5 =
    (___SMMUL(ccomp, _freq5[voiceprev]) + ___SMMUL(sine, _freq5[voicenext]));
outlet_bw1 = ___SMMUL(ccomp, _bw1[voiceprev]) + ___SMMUL(sine, _bw1[voicenext]);
outlet_bw2 = ___SMMUL(ccomp, _bw2[voiceprev]) + ___SMMUL(sine, _bw2[voicenext]);
outlet_bw3 = ___SMMUL(ccomp, _bw3[voiceprev]) + ___SMMUL(sine, _bw3[voicenext]);
outlet_bw4 = ___SMMUL(ccomp, _bw4[voiceprev]) + ___SMMUL(sine, _bw4[voicenext]);
outlet_bw5 = ___SMMUL(ccomp, _bw5[voiceprev]) + ___SMMUL(sine, _bw5[voicenext]);
outlet_gain1 =
    ___SMMUL(ccomp, _gain1[voiceprev]) + ___SMMUL(sine, _gain1[voicenext]);
outlet_gain2 =
    ___SMMUL(ccomp, _gain2[voiceprev]) + ___SMMUL(sine, _gain2[voicenext]);
outlet_gain3 =
    ___SMMUL(ccomp, _gain3[voiceprev]) + ___SMMUL(sine, _gain3[voicenext]);
outlet_gain4 =
    ___SMMUL(ccomp, _gain4[voiceprev]) + ___SMMUL(sine, _gain4[voicenext]);
outlet_gain5 =
    ___SMMUL(ccomp, _gain5[voiceprev]) + ___SMMUL(sine, _gain5[voicenext]);
outlet_voice = voicenext;
Contact
Github
Forum
Terms
Privacy

© 2024 Zrna Research
