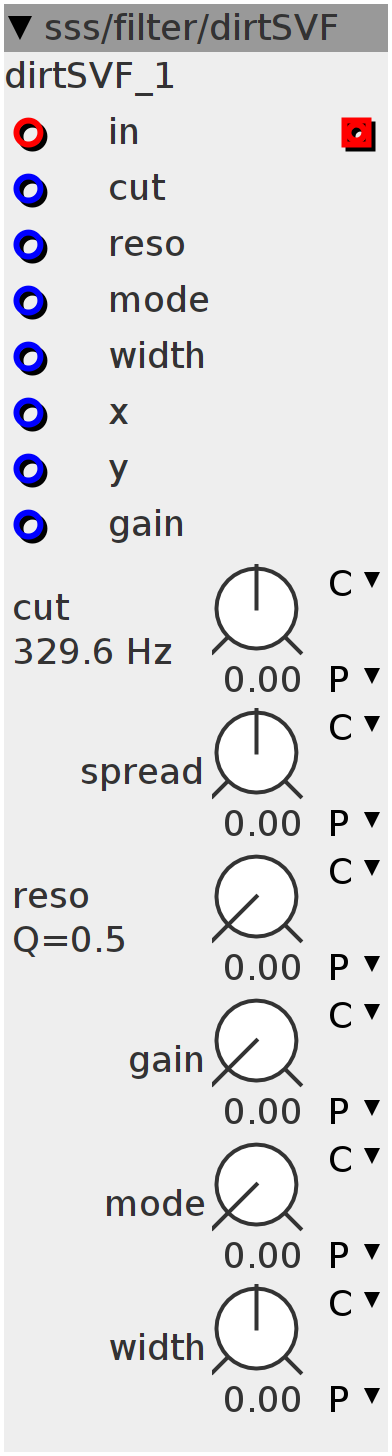

dirtSVF
multimode filter, state-variable type. "mode" morphs through the filter types circularly, while "width" controls the distance from center mix. "x" and "y" inputs can offset the circular motion. bandpass gain can be increased, forcing it to clip the signal. "Spread" creates a difference between cutoff frequencies when incoming signal is higher or lower then the output signal.
Inlets
frac32buffer filter input
frac32 cut
frac32 reso
frac32 mode
frac32 width
frac32 x
frac32 y
frac32 gain
Outlets
frac32buffer filter output
Parameters
frac32.u.map gain
frac32.u.map mode
frac32.s.map.pitch cut
frac32.s.map spread
frac32.s.map width
frac32.u.map.filterq reso
int32_t low;
int32_t band;
int32_t ratio;
float32_t R;
int32_t out1;low = 0;
band = 0;
SINE2TINTERP(1 << 29, ratio)
R = (float32_t)(1 << 27) / (ratio >> 4);int32_t damp = (0x80 << 24) - (param_reso + inlet_reso << 4);
damp = ___SMMUL(damp, damp);
int32_t alpha;
int32_t freq;
MTOFEXTENDED(param_cut + inlet_cut - (param_spread >> 3), alpha);
SINE2TINTERP(alpha, freq);
int32_t Alpha;
int32_t Freq;
MTOFEXTENDED(param_cut + inlet_cut + (param_spread >> 5), Alpha);
SINE2TINTERP(Alpha, Freq);
int32_t x;
int32_t y;
SINE2TINTERP(param_mode + inlet_mode - (1 << 25) << 5, x)
SINE2TINTERP(param_mode + inlet_mode << 5, y)
int32_t width = param_width + inlet_width;
x = __SSAT((inlet_x << 3) + ___SMMUL(x, R *(width << 4)), 31) + (1 << 30) >> 1;
y = __SSAT((inlet_y << 3) + ___SMMUL(y, R *(width << 4)), 31) + (1 << 30) >> 1;
int32_t X = (1 << 30) - x;
int32_t Y = (1 << 30) - y;
int32_t gain = inlet_gain + param_gain;int32_t in1 = inlet_in;
int32_t FREQ = inlet_in > out1 ? freq : Freq;
band = band + ___SMMUL(band << 2, ___SMMUL(gain << 4, alpha) << 2);
int32_t notch = __SSAT(inlet_in - (___SMMUL(damp, band) << 1), 28);
low = __SSAT(low + (___SMMUL(FREQ, band) << 1), 28);
int32_t high = __SSAT(notch - low, 28);
band = __SSAT((___SMMUL(FREQ, high) << 1) + band, 28);
out1 = ___SMMUL(___SMMUL(high, x) + ___SMMUL(band, X) << 2, y);
out1 += ___SMMUL(___SMMUL(notch, x) + ___SMMUL(low, X) << 2, Y);
outlet_out = out1 << 2;
