dualMorphSVF
Dual Mode-morphing state-variable-filter. -Using a saw-wave LFO as input for the ModeX(1/2/A) creates a quadrature reading through: LP->BP->HP->Notch->LP ModeX1 and ModeX2 will control the modes of filters 1 and 2 respectively. ModeXA controls both modes at the same time. -depending in which input you send your audio, it will respond differently: -in1->normal response -in2->inversed filter response at filter 1, normal for filter 2 -in3->only send to filter 2 as inverse filter response -modeY1 controls the offset from the center, this control has an inversed response, meaning, a high input will force the mix to a centered mix of all filter modes. When above 64, it will inverse the filter responses, turning LP to HP, HP to LP, BP to Notch and Notch to BP. -SerialSel controls the amount of each audio input to be send to filter2 input when serial mode is mixed in. -SerPar mixes between serial and parallel mode for filter 1 and 2. -drive controls the drive over the resonance (BP filter part that influences the other filters)

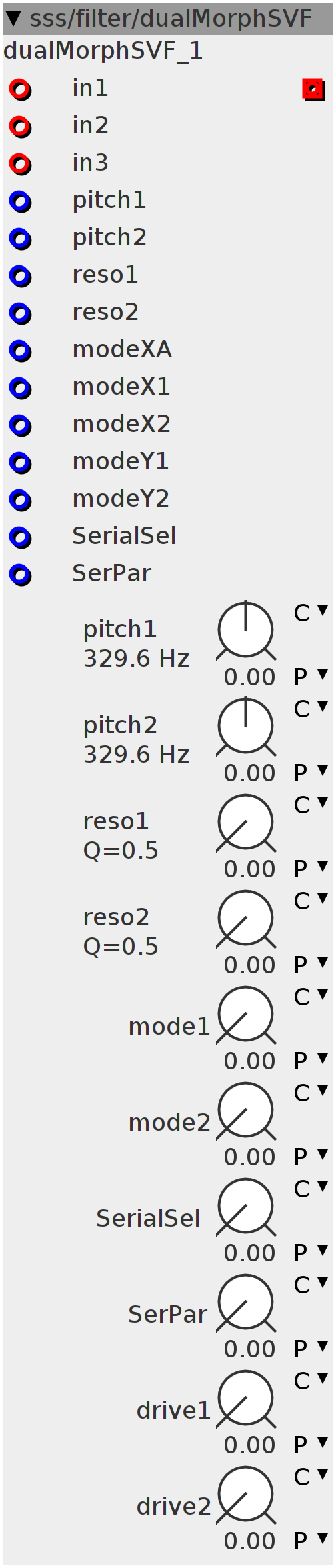

Inlets
frac32buffer filter input
frac32buffer in2
frac32buffer in3
frac32 pitch1
frac32 pitch2
frac32 reso1
frac32 reso2
frac32 modeXA
frac32 modeX1
frac32 modeX2
frac32 modeY1
frac32 modeY2
frac32 SerialSel
frac32 SerPar
Outlets
frac32buffer filter output
Parameters
frac32.u.map.filterq reso1
frac32.u.map.filterq reso2
frac32.u.map mode1
frac32.u.map mode2
frac32.u.map SerialSel
frac32.u.map SerPar
frac32.u.map drive1
frac32.u.map drive2
frac32.s.map.pitch pitch1
frac32.s.map.pitch pitch2
int32_t low[2];
int32_t band[2];
int32_t OUT[2];
int32_t ModeA[2];
int32_t ModeB[2];
int32_t freq[2];
int32_t Damp[2];
int i;
int32_t config(int32_t pitch, int32_t reso, int32_t ModeX, int32_t ModeY,
int Inst) {
int32_t damp = (0x80 << 24) - (reso << 4);
damp = ___SMMUL(damp, damp);
Damp[Inst] = damp;
int32_t alpha;
MTOFEXTENDED(pitch, alpha);
SINE2TINTERP(alpha, freq[Inst]);
int32_t modeA = (ModeX) << 2;
modeA = modeA & ((1 << 29) - 1);
modeA = modeA > (1 << 28) ? (1 << 29) - modeA : modeA;
modeA = __USAT(modeA - (1 << 26), 27);
int32_t modeB = (ModeX + (1 << 25)) << 2;
modeB = modeB & ((1 << 29) - 1);
modeB = modeB > (1 << 28) ? (1 << 29) - modeB : modeB;
modeB = __USAT(modeB - (1 << 26), 27);
int32_t modeY = ModeY;
modeY = modeY < 0 ? -modeY : modeY;
int dir = modeY > (1 << 27) ? -1 : 1;
modeY = modeY > (1 << 27) ? (1 << 28) - modeY : modeY;
int32_t modeX = ((1 << 27) - modeY) * dir;
ModeA[Inst] =
___SMMUL(modeX << 3, modeA << 2) + ___SMMUL(modeY << 3, (1 << 28));
ModeB[Inst] =
___SMMUL(modeX << 3, modeB << 2) + ___SMMUL(modeY << 3, (1 << 28));
}
int32_t SVF(int32_t in1, int32_t in2, int32_t Freq, int32_t damp, int32_t modeA,
int32_t modeB, int32_t drive, int32_t Inst) {
int32_t temp = __SSAT(___SMMUL(band[Inst] << 2, drive << 2), 28);
band[Inst] = __SSAT(
band[Inst] -
(___SMMUL(___SMMUL(temp << 3, temp << 2) << 3, temp << 2) << 2),
28);
band[Inst] += ___SMMUL(band[Inst] << 1, drive << 1);
int32_t notch = in1 + in2 - __SSAT((___SMMUL(damp, band[Inst]) << 1), 27);
low[Inst] = low[Inst] + __SSAT((___SMMUL(Freq, band[Inst]) << 1), 27);
int32_t high = notch - low[Inst];
band[Inst] = (___SMMUL(Freq, high) << 1) + __SSAT(band[Inst], 27);
int32_t out1;
out1 = ___SMMUL(modeA << 3, ___SMMUL(modeB << 3, low[Inst] << 2) << 2);
out1 += ___SMMUL((1 << 27) - modeA << 3, ___SMMUL(modeB << 3, band[Inst] << 2)
<< 2);
out1 +=
___SMMUL(modeA << 3, ___SMMUL((1 << 27) - modeB << 3, high << 2) << 2);
out1 += ___SMMUL((1 << 27) - modeA << 3,
___SMMUL((1 << 27) - modeB << 3, notch << 2) << 2);
OUT[Inst] = out1 - in2;
}for (i = 0; i < 2; i++) {
low[i] = 0;
band[i] = 0;
}config(inlet_pitch1 + param_pitch1, __USAT(param_reso1 + inlet_reso1, 27),
param_mode1 + inlet_modeX1 + (1 << 25) + inlet_modeXA, inlet_modeY1, 0);
config(inlet_pitch2 + param_pitch2, __USAT(param_reso2 + inlet_reso2, 27),
param_mode2 + inlet_modeX2 + (1 << 25) + inlet_modeXA, inlet_modeY2, 1);
int32_t SerPar1 = (param_SerialSel + inlet_SerialSel) & ((1 << 28) - 1);
SerPar1 = SerPar1 > (1 << 27) ? (1 << 28) - SerPar1 : SerPar1;
int32_t SerPar2 = (param_SerPar + inlet_SerPar) & ((1 << 28) - 1);
SerPar2 = SerPar2 > (1 << 27) ? (1 << 28) - SerPar2 : SerPar2;int32_t IN1 = inlet_in1;
int32_t IN2 = inlet_in2;
SVF(IN1, IN2, freq[0], Damp[0], ModeA[0], ModeB[0], param_drive1, 0);
int32_t mix1 = ___SMMUL(SerPar1 << 3, IN2 << 2) +
___SMMUL((1 << 27) - SerPar1 << 3, IN1 << 2);
mix1 = ___SMMUL(SerPar2 << 3, mix1 << 2) +
___SMMUL((1 << 27) - SerPar2 << 3, OUT[0] << 2);
SVF(mix1, inlet_in3, freq[1], Damp[1], ModeA[1], ModeB[1], param_drive2, 1);
outlet_out = (OUT[1] >> 1) + ___SMMUL(SerPar2 << 3, OUT[0] << 1) +
___SMMUL((1 << 27) - SerPar2 << 3, OUT[1] << 1);
;
