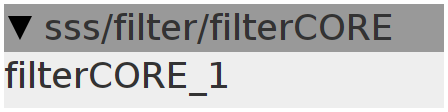

filterCORE
THIS MODULE ONLY CONTAINS THE FILTER CODES! Use the filterSlave module and refer to this core module to make use of it's 16 filter codes. type1=normal filters based on cascaded 6dB filters without resonance. Res knob controls cascading/filter mode (HP/LP) type2=SVF filters type3=Biquad filters type4= my own custom filters for type1 counts: 1=cascadable 6dB LP filters. from 0dB slope up to 48dB 2=cascadable 6dB HP filters. from 0dB slope up to 48dB 3=12dB LP-BP-HP morphable based on two 6dB filters 4=18dB LP-BP1-BP2-HP morphable filters based on three 6dB filters for type 2 and 3 counts: 1=LP 2=HP 3=BP 4=NOTCH for type 4 counts: 1=36dB LP with control over cutoff and resonance 2=mostfilter2 LP version with control over cutoff and resonance 3=mostfilter2 HP version with control over cutoff and resonance 4=mostBfilter LP, a new filter which internally boosts the signal to get a more aggressive character
Inlets
None
Outlets
None
Declaration
biquad_state bs;
biquad_coefficients bc;
int32_t in[BUFSIZE];
int32_t val[8];
int32_t out[BUFSIZE];
int32_t low;
int32_t band;
int32_t notch;
int32_t high;
int i;
int k;
int32_t casc;
int32_t mix;
int32_t Mix;
int32_t tmp;
int32_t pv;
int32_t stp;
int32_t Freq;
int prv;
bool ALL;
int32_t v26 = (1 >> 26);
int32_t v27 = (1 << 27);
int32_t v28 = (1 << 28);
int BUFMASK = BUFSIZE - 1;
/*
6dB LP with slope control instead of resonance (cascading multiple 6dB filters)
6dB HP with slope control instead of resonance (cascading multiple 6dB filters)
12dB BP (6dB LP and HP filters) with LP-HP serial crossfading
18dB BP (6dB LP and HP filters) with LP-HP serial crossfading
SVF LP
SVF HP
SVF BP
SVF NO (notch)
Biquad LP
Biquad HP
Biquad BP
Biquad NO
*/
int32_t alpha;
uint32_t freq;
int32_t res;
int32_t t1 = v27 / 3;
int32_t SVF(int32_t IN) {
band -= ___SMMUL(___SMMUL(band << 2, band << 2), band << 2);
notch = IN - (___SMMUL(res, band) << 1);
low = low + (___SMMUL(freq, band) << 1);
high = notch - low;
band = (___SMMUL(freq, high) << 1) + band;
}
int32_t settings(int32_t f, int32_t R, int mode) {
switch (mode) {
case 0: // 6dB LP cascadable
MTOF(f, Freq);
casc = (R >> 24);
mix = (R - (casc << 24)) << 6;
casc += 1;
;
break;
case 1: // 6dB HP cascadable
MTOF(f, Freq);
casc = (R >> 24);
mix = (R - (casc << 24)) << 6;
casc += 1;
;
break;
case 2: // 12dB LP-BP-HP crossfading
MTOF(f, Freq);
mix = __USAT((int32_t)R, 26);
casc = R - mix << 4;
mix = mix << 4;
;
break;
case 3: // 18dB LP-BP1-BP2-HP crossfading
MTOF(f, Freq);
mix = R >= t1 ? t1 - 1 : R;
casc = R - mix;
casc = casc >= t1 ? t1 - 1 : casc;
Mix = (R - mix - casc) * 3 << 3;
casc = casc * 3 << 3;
mix = mix * 3 << 3;
;
break;
case 4:
res = (0x80 << 24) - (R << 4);
res = ___SMMUL(res, res);
MTOFEXTENDED(f, alpha);
SINE2TINTERP(alpha, Freq);
;
break;
case 5:
res = (0x80 << 24) - (R << 4);
res = ___SMMUL(res, res);
MTOFEXTENDED(f, alpha);
SINE2TINTERP(alpha, Freq);
;
break;
case 6:
res = (0x80 << 24) - (R << 4);
res = ___SMMUL(res, res);
MTOFEXTENDED(f, alpha);
SINE2TINTERP(alpha, Freq);
;
break;
case 7:
res = (0x80 << 24) - (R << 4);
res = ___SMMUL(res, res);
MTOFEXTENDED(f, alpha);
SINE2TINTERP(alpha, Freq);
;
break;
case 8:
MTOF(f, freq);
biquad_lp_coefs(&bc, freq, INT_MAX - (R << 4));
;
break;
case 9:
MTOF(f, freq);
biquad_hp_coefs(&bc, freq, INT_MAX - (R << 4));
;
break;
case 10:
MTOF(f, freq);
biquad_bp_coefs(&bc, freq, INT_MAX - (R << 4));
;
break;
case 11:
MTOF(f, freq);
biquad_bp_coefs(&bc, freq, INT_MAX - (R << 4));
;
break;
case 12:
MTOFEXTENDED(f + v27 >> 1, Freq);
res = R;
;
break;
case 13:
MTOFEXTENDED(f, Freq);
res = R;
;
break;
case 14:
MTOF(f, Freq);
res = R;
;
break;
case 15:
MTOF(f, Freq);
MTOF(-(__SSAT(R, 28) << 1) + v28 >> 2, res);
MTOF(f - v27, mix);
casc = v27 - v26 * 0.9;
casc = ___SMMUL(casc << 3, casc << 2);
;
break;
}
};
int32_t filter(int mode) {
switch (mode) {
case 0: // 6dB LP cascadable
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int l = (i - 1) & BUFMASK;
for (k = 0; k < casc; k++) {
val[k] = ___SMMLA((in[i] - val[k]) << 1, freq, val[k]);
if (k < (casc - 1)) {
in[i] = val[k] - (ALL > 0 ? in[i] - val[k] : 0);
} else if (k == (casc - 1)) {
in[i] =
in[i] +
___SMMUL(mix, -in[i] + (val[k] - (ALL > 0 ? in[i] - val[k] : 0))
<< 2);
}
}
out[i] = in[i];
}
;
break;
case 1: // 6dB HP cascadable
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int l = (i - 1) & BUFMASK;
for (k = 0; k < casc; k++) {
val[k] = ___SMMLA((in[i] - val[k]) << 1, freq, val[k]);
if (k < (casc - 1)) {
in[i] = in[i] - val[k] - (ALL > 0 ? val[k] : 0);
} else {
in[i] = in[i] + ___SMMUL(mix, -val[k] - (ALL > 0 ? val[k] : 0) << 2);
}
}
}
for (i = 0; i < BUFSIZE; i++) {
out[i] = in[i];
}
;
break;
case 2: // 12dB LP-BP-HP crossfading
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int l = (i - 1) & (BUFMASK);
val[0] = ___SMMLA((in[i] - val[0]) << 1, freq, val[0]);
tmp = val[0] + ___SMMUL(mix, in[i] - (val[0] << 1) << 2);
tmp = tmp - (ALL > 0 ? in[i] - tmp : 0);
val[1] = ___SMMLA((tmp - val[1]) << 1, freq, val[1]);
int32_t tp = val[1] + ___SMMUL(casc, tmp - (val[1] << 1) << 2);
out[i] = tp - (ALL > 0 ? tmp - tp : 0);
}
;
break;
case 3: // LP SVF
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int l = (i - 1) & (BUFMASK);
val[0] = ___SMMLA((in[i] - val[0]) << 1, freq, val[0]);
tmp = val[0] + ___SMMUL(mix, in[i] - (val[0] << 1) << 2);
tmp = tmp - (ALL > 0 ? in[i] - tmp : 0);
val[1] = ___SMMLA((tmp - val[1]) << 1, freq, val[1]);
int32_t tp = val[1] + ___SMMUL(casc, tmp - (val[1] << 1) << 2);
tp = tp - (ALL > 0 ? tmp - tp : 0);
val[2] = ___SMMLA((tp - val[2]) << 1, freq, val[2]);
int32_t TP = val[2] + ___SMMUL(Mix, tp - (val[2] << 1) << 2);
out[i] = TP - (ALL > 0 ? tp - TP : 0);
}
;
break;
case 4: // SVF LP
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
SVF(in[i]);
out[i] = low - (ALL > 0 ? -(high + band) : 0);
}
;
break;
case 5: // SVF HP
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
SVF(in[i]);
out[i] = high - (ALL > 0 ? (low + band) - (in[i] - notch) : 0);
}
;
break;
case 6: // SVF BP
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
SVF(in[i]);
out[i] = band - (ALL > 0 ? in[i] - band : 0);
}
;
break;
case 7: // SVF NO
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
SVF(in[i]);
out[i] = notch - (ALL > 0 ? in[i] - notch : 0);
}
;
break;
case 8:
biquad_dsp(&bs, &bc, in, out);
for (i = 0; i < BUFSIZE; i++) {
out[i] = out[i] - (ALL > 0 ? in[i] - out[i] : 0);
};
break;
case 9:
biquad_dsp(&bs, &bc, in, out);
for (i = 0; i < BUFSIZE; i++) {
out[i] = out[i] - (ALL > 0 ? in[i] - out[i] : 0);
};
break;
case 10:
biquad_dsp(&bs, &bc, in, out);
for (i = 0; i < BUFSIZE; i++) {
out[i] = out[i] - (ALL > 0 ? in[i] - out[i] : 0);
};
break;
case 11:
biquad_dsp(&bs, &bc, in, out);
for (i = 0; i < BUFSIZE; i++) {
out[i] = in[i] - out[i] - (ALL > 0 ? -out[i] << 1 : 0);
};
break;
case 12:
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int32_t valsat = ___SMMUL((in[i] - val[5]) << 2, res << 4);
int32_t ts = __SSAT(valsat, 28);
int32_t tsq31 = ts << 3;
int32_t tsq31p3 = ___SMMUL(tsq31, ___SMMUL(tsq31, tsq31));
int32_t valres = ts + (ts >> 1) - (tsq31p3);
val[0] = ___SMMLA(((in[i] + valres) - val[0]) << 1, freq, val[0]);
val[1] = ___SMMLA((val[0] - val[1]) << 1, freq, val[1]);
val[2] = ___SMMLA((val[1] - val[2]) << 1, freq, val[2]);
val[3] = ___SMMLA((val[2] - val[3]) << 1, freq, val[3]);
val[4] = ___SMMLA((val[3] - val[4]) << 1, freq, val[4]);
val[5] = ___SMMLA((val[4] - val[5]) << 1, freq, val[5]);
out[i] = val[5] >> 1;
out[i] -= (ALL > 0 ? in[i] - out[i] : 0);
};
break;
case 13:
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int32_t In = in[i];
val[2] = ___SMMLA(
(In +
(__SSAT(___SMMUL(__SSAT(In - val[0], 28) << 2, res << 3), 28) << 1) -
val[0] - val[2])
<< 1,
freq, val[2]);
val[0] = ___SMMLA((val[2]) << 1, freq, val[0]);
In = __SSAT(val[0], 28);
val[3] = ___SMMLA(
(In +
(__SSAT(___SMMUL(__SSAT(In - val[1], 28) << 2, res << 3), 28) << 1) -
val[1] - val[3])
<< 1,
freq, val[3]);
val[1] = ___SMMLA((val[3]) << 1, freq, val[1]);
out[i] = val[1] >> 1;
out[i] -= (ALL > 0 ? in[i] - out[i] : 0);
};
break;
case 14:
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int32_t In = in[i];
val[2] = ___SMMLA(
(In +
(__SSAT(___SMMUL(__SSAT(In - val[0], 28) << 2, res << 3), 28) << 1) -
val[0] - val[2])
<< 1,
freq, val[2]);
val[0] = ___SMMLA((val[2]) << 1, freq, val[0]);
In = __SSAT(val[0] - In, 28);
val[3] = ___SMMLA(
(In +
(__SSAT(___SMMUL(__SSAT(In - val[1], 28) << 2, res << 3), 28) << 1) -
val[1] - val[3])
<< 1,
freq, val[3]);
val[1] = ___SMMLA((val[3]) << 1, freq, val[1]);
out[i] = val[1] - In >> 1;
out[i] -= (ALL > 0 ? in[i] - out[i] : 0);
};
break;
case 15:
for (i = 0; i < BUFSIZE; i++) {
freq += stp;
int32_t In =
__SSAT(___SMMUL((3 << 24) + (v26) << 1, in[i] << 2) << 1, 27);
val[1] += (___SMMUL((In)-val[0], freq) << 1) - ___SMMUL(val[1] << 1, res);
val[1] = val[1] > casc ? casc : val[1];
val[1] = val[1] < -casc ? -val[1] : val[1];
// val[1]-=val[1]>>9;
val[0] += val[1];
val[2] += ___SMMUL(val[0] - val[2], mix);
int32_t ts = __SSAT(val[0] - val[2], 28);
int32_t tsq31 = ts << 2;
int32_t tsq31p3 = ___SMMUL(tsq31, ___SMMUL(tsq31, tsq31));
out[i] = ts + (ts >> 1) - (tsq31p3);
out[i] -= (ALL > 0 ? in[i] - out[i] : 0);
};
break;
}
};
Init
biquad_clearstate(&bs);
