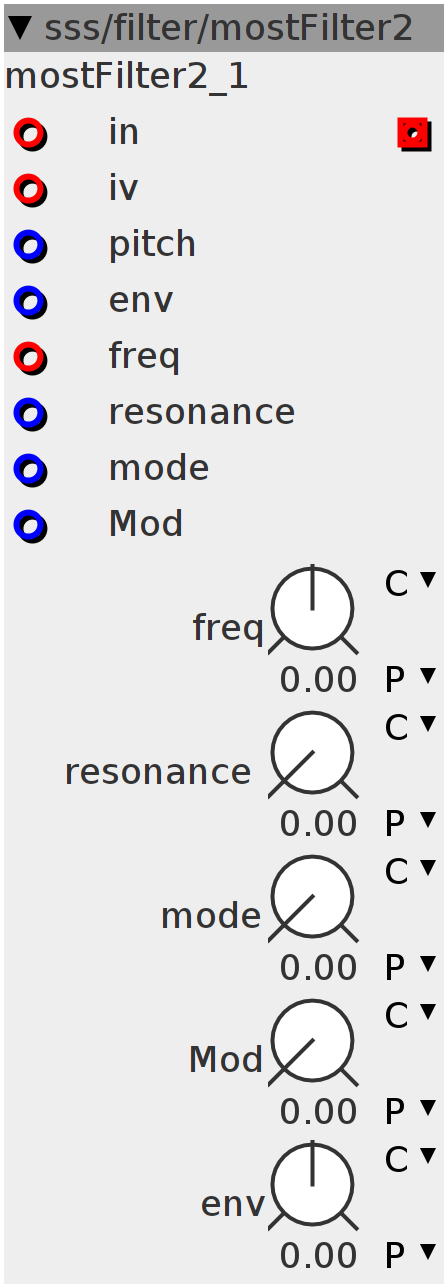

mostFilter2
Custom designed 2-stage filter with crossfade between LP, BP and HP using the "mode" control. 2nd input is an inversed input with inversed filter effects: HP, NOTCH and LP respectively. The "mod" control is an extra filter control, softening the sound, though distorting at higher mod and resonance settings with higher frequencies. It came as a possible extra control within the design..
Inlets
frac32buffer in
frac32buffer iv
frac32buffer freq
frac32 pitch
frac32 env
frac32 resonance
frac32 mode
frac32 Mod
Outlets
frac32buffer output
Parameters
frac32.s.map freq
frac32.s.map env
frac32.u.map resonance
frac32.u.map mode
frac32.u.map Mod
int32_t val;
int32_t rate;
int32_t diff;
int32_t Res;val = 0;
rate = 0;int32_t resonance = (1 << 27) - __USAT(param_resonance + inlet_resonance, 28);
resonance = ___SMMUL(resonance << 2, resonance << 2);
int32_t mode = param_mode + inlet_mode & ((1 << 28) - 1);
mode = mode > (1 << 27) ? (1 << 28) - mode : mode;
int32_t Mod = param_Mod + inlet_Mod & ((1 << 28) - 1);
Mod = Mod > (1 << 27) ? (1 << 28) - Mod : Mod;int32_t in;
in = (inlet_in - inlet_iv);
diff = in - val;
int32_t f;
MTOF(param_freq + inlet_pitch + ___SMMUL(inlet_env << 4, param_env << 2) +
inlet_freq - ___SMMUL(((diff > 0 ? diff : -diff)) << 3, Mod << 1),
f);
rate = ___SMMLA((diff) << 1, f, rate);
int32_t temp = ___SMMUL(rate << 3, ((1 << 20) + resonance) << 2);
Res = ___SMMLA((temp - Res) << 1, f >> 2, Res);
rate = rate - (temp - Res);
val += rate;
outlet_out = (val - ___SMMUL(in << 3, mode << 2) + (inlet_iv)) >> 1;
