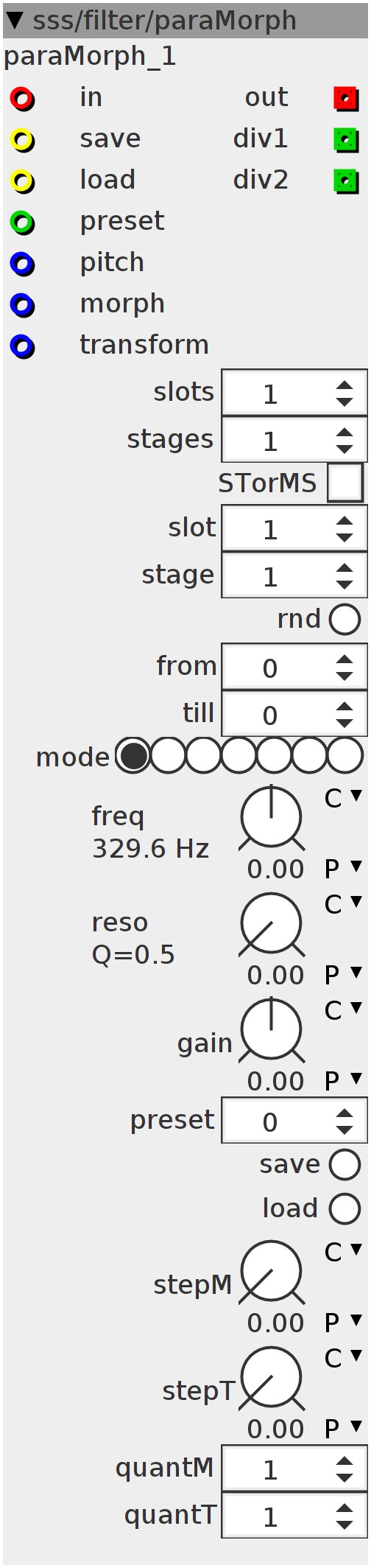

paraMorph

morphing parametric EQ pitch inputs shifts the frequencies of all the filters in parallel. morph input morphs through the frequency settings of all the presets. transform input morphs through the presets for filter-modes, resonance/bandwidth and gain.
Author: Remco van der Most
License: BSD
Github: sss/filter/paraMorph.axo

Inlets

frac32buffer filter input

bool32 save

bool32 load

int32 preset

frac32 pitch

frac32 morph

frac32 transform

Outlets

frac32buffer filter output

int32 div1

int32 div2

Parameters

bool32.tgl STorMS

int32 slot

int32 stage

int32 preset

int32 quantM

int32 quantT

int32.mini from

int32.mini till

frac32.u.map.filterq reso

frac32.s.map gain

frac32.u.map stepM

frac32.u.map stepT

frac32.s.map.pitch freq

bool32.mom rnd

bool32.mom save

bool32.mom load

int32.hradio mode

Attributes

spinner slots

spinner stages

Declaration
static const uint32_t LENGTH = (attr_stages << 2) * (attr_slots);
int32_t *array;
biquad_state bs[attr_stages * 2];
biquad_coefficients bc[attr_stages * 2];
int32_t freq;
int32_t f1;
int32_t f2;
int32_t reso;
int stages = attr_stages;
int mode;
int i;
int j;
int k;
int32_t TMP1[2][BUFSIZE];

// 0=mode
// 1=freq
// 2=reso
// 3=gain
int32_t gain;
int32_t filter(int32_t FREQ, int32_t RESO, int32_t MODE, int G) {
  switch (MODE > 0 ? MODE : 0) {
  case 0:
    biquad_bp_coefs(&bc[G], FREQ, INT_MAX - (__USAT(RESO, 27) << 4));
    break;
  case 1:
    biquad_bp_coefs(&bc[G], FREQ, INT_MAX - (__USAT(RESO, 27) << 4));
    break;
  case 2:
    biquad_lp_coefs(&bc[G], FREQ, INT_MAX - (__USAT(RESO, 27) << 4));
    break;
  case 3:
    biquad_hp_coefs(&bc[G], FREQ, INT_MAX - (__USAT(RESO, 27) << 4));
    break;
  case 4:
    biquad_bp_coefs(&bc[G], FREQ, INT_MAX - (__USAT(RESO, 27) << 4));
    break;
  case 5:
    biquad_lp_coefs(&bc[G], FREQ, INT_MAX - (__USAT(RESO, 27) << 4));
    break;
  case 6:
    biquad_hp_coefs(&bc[G], FREQ, INT_MAX - (__USAT(RESO, 27) << 4));
    break;
  }
};
int prev;
int prv;
int OFS;
char c[64];
int offset;
int pval;
int strig;
int ltrig;
int rtrig;
uint32_t W[4];
int32_t F;
int32_t MX(int32_t T) {
  T = T > 0 ? T : -T;
  T = T & ((1 << 28) - 1);
  F = T > (1 << 27) ? (1 << 28) - T : T;
}
Init
static int32_t _array[LENGTH] __attribute__((section(".sdram")));
array = &_array[0];

for (i = 0; i < attr_stages; i++) {
  biquad_clearstate(&bs[i]);
  array[i << 2] = 1;
}

strcpy(&c[0], "0:/para000.tab");
offset = strlen("para");
pval = 0;
Control Rate
int16_t preset = param_preset + inlet_preset;
if (preset != pval) {
  pval = preset;
  int i = preset;
  int i0 = i / 10;
  c[offset + 2] = '0' + i - 10 * i0;
  i = i0;
  i0 = i / 10;
  c[offset + 1] = '0' + i - 10 * i0;
  i = i0;
  i0 = i / 10;
  c[offset + 0] = '0' + i - 10 * i0;
}
int save = inlet_save + param_save;
int load = inlet_load + param_load;
if ((save > 0) && !strig) {
  strig = 1;
  FIL FileObject;
  FRESULT err;
  UINT bytes_written;
  err = f_open(&FileObject, &c[0], FA_WRITE | FA_CREATE_ALWAYS);
  if (err != FR_OK) {
    report_fatfs_error(err, &c[0]);
    return;
  }
  int rem_sz = sizeof(*array) * LENGTH;
  int offset = 0;
  while (rem_sz > 0) {
    if (rem_sz > sizeof(fbuff)) {
      memcpy((char *)fbuff, (char *)(&array[0]) + offset, sizeof(fbuff));
      err = f_write(&FileObject, fbuff, sizeof(fbuff), &bytes_written);
      rem_sz -= sizeof(fbuff);
      offset += sizeof(fbuff);
    } else {
      memcpy((char *)fbuff, (char *)(&array[0]) + offset, rem_sz);
      err = f_write(&FileObject, fbuff, rem_sz, &bytes_written);
      rem_sz = 0;
    }
  }
  if (err != FR_OK)
    report_fatfs_error(err, &c[0]);
  err = f_close(&FileObject);
  if (err != FR_OK)
    report_fatfs_error(err, &c[0]);
} else if (!(save > 0))
  strig = 0;

if ((load > 0) && !ltrig) {
  ltrig = 1;
  FIL FileObject;
  FRESULT err;
  UINT bytes_read;
  err = f_open(&FileObject, &c[0], FA_READ | FA_OPEN_EXISTING);
  if (err != FR_OK) {
    report_fatfs_error(err, &c[0]);
    return;
  }
  int rem_sz = sizeof(*array) * LENGTH;
  int offset = 0;
  while (rem_sz > 0) {
    if (rem_sz > sizeof(fbuff)) {
      err = f_read(&FileObject, fbuff, sizeof(fbuff), &bytes_read);
      if (bytes_read == 0)
        break;
      memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
      rem_sz -= bytes_read;
      offset += bytes_read;
    } else {
      err = f_read(&FileObject, fbuff, rem_sz, &bytes_read);
      memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
      rem_sz = 0;
    }
  }
  if (err != FR_OK) {
    report_fatfs_error(err, &c[0]);
    return;
  };
  err = f_close(&FileObject);
  if (err != FR_OK) {
    report_fatfs_error(err, &c[0]);
    return;
  };
} else if (!(load > 0))
  ltrig = 0;

int64_t MIX1 = inlet_morph & ((1 << 27) - 1);
int64_t MIX2 = inlet_transform & ((1 << 27) - 1);

outlet_div1 = param_quantM;
outlet_div2 = param_quantT;
int32_t quantM = param_quantM;
int32_t quantT = param_quantT;
float32_t step1 =
    ((float32_t)(attr_slots)) / (quantM) * ((param_stepM) / (1 << 21));
float32_t step2 =
    ((float32_t)(attr_slots)) / (quantT) * ((param_stepT) / (1 << 21));

W[0] = ((MIX1 >> 4) * quantM) >> 23;
MIX1 = (MIX1 - (W[0] << 27) / quantM) * quantM;
W[1] = (float32_t)(W[0]) * step1 + step1;
W[0] = W[0] * step1;

W[2] = ((MIX2 >> 4) * quantT) >> 23;
MIX2 = (MIX2 - (W[2] << 27) / quantT) * quantT;
if (!(prv == W[2])) {
  OFS = (OFS + 1) & 1;
}
prv = W[2];
W[3] = (float32_t)(W[2]) * step2 + step2;
W[2] = W[2] * step2;

for (i = 0; i < 4; i++) {
  W[i] = W[i] < 0 ? -W[i] : W[i];
  W[i] = (W[i] - (W[i] / attr_slots) * attr_slots);
  W[i] = W[i] * (attr_stages << 2);
}

preset = (attr_stages << 2) * (param_slot - 1);

if ((param_rnd > 0) && !rtrig) {
  rtrig = 1;
  for (j = param_from; j < param_till; j++) {
    k = j * attr_stages << 2;
    int P1 = preset + k;
    P1 = P1 - P1 / LENGTH * LENGTH;
    for (i = 0; i < attr_stages; i++) {
      int32_t tmp = (uint32_t)(GenerateRandomNumber());
      tmp = tmp - tmp / 7 * 7;
      tmp = tmp < 0 ? tmp + 7 : tmp;
      tmp = tmp - 1;
      tmp = tmp < 1 ? 1 : tmp + 1;
      array[(i << 2) + P1] = tmp;
      array[(i << 2) + P1 + 1] =
          (int32_t)(GenerateRandomNumber() >> 4) - (1 << 27);
      array[(i << 2) + P1 + 2] =
          (int32_t)(GenerateRandomNumber() >> 6) + (1 << 26);
      array[(i << 2) + P1 + 3] =
          (int32_t)(GenerateRandomNumber() >> 4) - (1 << 27);
    }
  }
} else if (param_rnd == 0) {
  rtrig = 0;
}

int stage = (param_stage - 1) << 2;
if (param_stage <= attr_stages) {
  if (!(stage + load + param_slot + param_rnd == prev)) {
    PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_mode],
                       array[stage + preset], 0xFFFD);
    PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_freq],
                       array[stage + 1 + preset], 0xFFFD);
    PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_reso],
                       array[stage + 2 + preset], 0xFFFD);
    PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_gain],
                       array[stage + 3 + preset], 0xFFFD);
  }

  array[stage + preset] = param_mode;
  array[stage + 1 + preset] = param_freq;
  array[stage + 2 + preset] = param_reso;
  array[stage + 3 + preset] = param_gain;
}
for (i = 0; i < BUFSIZE; i++) {
  TMP1[0][i] = inlet_in[i];
  TMP1[1][i] = inlet_in[i];
}
for (k = 0; k < 2; k++) {
  for (j = 0; j < attr_stages; j++) {
    mode = array[(j << 2) + W[k + 2]];
    if (mode > 0) {
      freq = ___SMMUL(MIX1 << 3, array[(j << 2) + 1 + W[1]] << 2) +
             ___SMMUL((1 << 27) - MIX1 << 3, array[(j << 2) + 1 + W[0]] << 2);
      MTOF(__SSAT(freq + inlet_pitch, 27), freq);
      reso = array[(j << 2) + 2 + W[k + 2]];
      filter(freq, reso, mode, j + attr_stages * ((k + OFS) & 1));
      biquad_dsp(&bs[j + attr_stages * ((k + OFS) & 1)],
                 &bc[j + attr_stages * ((k + OFS) & 1)],
                 mode > 3 ? inlet_in : TMP1[k], outlet_out);
      gain = array[(j << 2) + 3 + W[k + 2]] * (1 - (param_STorMS << 1));
      gain = gain > 0 ? gain : gain;
      for (i = 0; i < BUFSIZE; i++) {
        TMP1[k][i] =
            __SSAT(TMP1[k][i] + ___SMMUL(outlet_out[i] << 2, gain << 3), 28);
      }
    }
  }
}
for (i = 0; i < BUFSIZE; i++) {
  outlet_out[i] = ___SMMUL(TMP1[0][i] << 2, (1 << 27) - MIX2 << 3) +
                  ___SMMUL(TMP1[1][i] << 2, MIX2 << 3);
}

prev = stage + load + param_slot + param_rnd;
