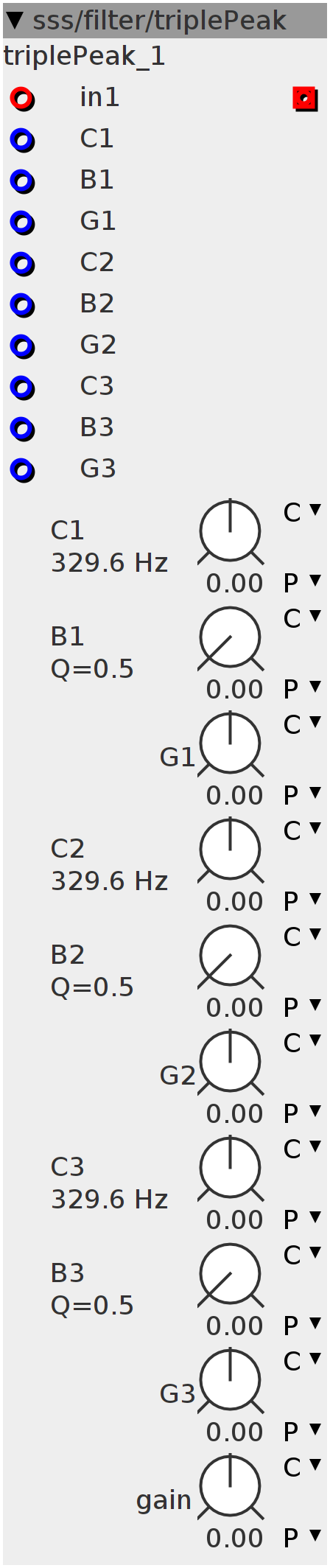

triplePeak
3 BP filters in parallel with the original input to make a 3-band parametric resonating EQ C=cutoff R=resonance G=gain
Inlets
frac32buffer filter input
frac32 C1
frac32 B1
frac32 G1
frac32 C2
frac32 B2
frac32 G2
frac32 C3
frac32 B3
frac32 G3
Outlets
frac32buffer filter output
Parameters
frac32.s.map.pitch C1
frac32.s.map.pitch C2
frac32.s.map.pitch C3
frac32.u.map.filterq B1
frac32.u.map.filterq B2
frac32.u.map.filterq B3
frac32.s.map G1
frac32.s.map G2
frac32.s.map G3
frac32.s.map gain
int32_t low[3];
int32_t band[3];
int32_t OUT[3];
int32_t freq[3];
int32_t Damp[3];
int32_t G[3];
int i;
int32_t config(int32_t pitch, int32_t reso, int32_t Gain, int Inst) {
int32_t damp = (0x80 << 24) - (reso << 4);
damp = ___SMMUL(damp, damp);
Damp[Inst] = damp;
int32_t alpha;
MTOFEXTENDED(pitch, alpha);
SINE2TINTERP(alpha, freq[Inst]);
G[Inst] = Gain > 0 ? Gain << 2 : Gain;
}
int32_t SVF(int32_t in1, int32_t Freq, int32_t damp, int32_t gain,
int32_t Inst) {
int32_t notch = in1 - __SSAT((___SMMUL(damp, band[Inst]) << 1), 29);
low[Inst] = low[Inst] + __SSAT((___SMMUL(Freq, band[Inst]) << 1), 29);
int32_t high = notch - low[Inst];
band[Inst] = (___SMMUL(Freq, high) << 1) + __SSAT(band[Inst], 27);
OUT[Inst] = ___SMMUL(band[Inst] << 3, gain << 2);
}for (i = 0; i < 3; i++) {
low[i] = 0;
band[i] = 0;
}config(inlet_C1 + param_C1, __USAT(param_B1 + inlet_B1, 27),
inlet_G1 + param_G1, 0);
config(inlet_C2 + param_C2, __USAT(param_B2 + inlet_B2, 27),
inlet_G2 + param_G2, 1);
config(inlet_C3 + param_C3, __USAT(param_B3 + inlet_B3, 27),
inlet_G3 + param_G3, 2);int32_t IN1 = inlet_in1 + ___SMMUL(param_gain << 4, inlet_in1 << 1);
int32_t out;
SVF(IN1, freq[0], Damp[0], G[0], 0);
SVF(IN1, freq[1], Damp[1], G[1], 1);
SVF(IN1, freq[2], Damp[2], G[2], 2);
out = OUT[0] + OUT[1] + OUT[2] + IN1;
outlet_out = out;
