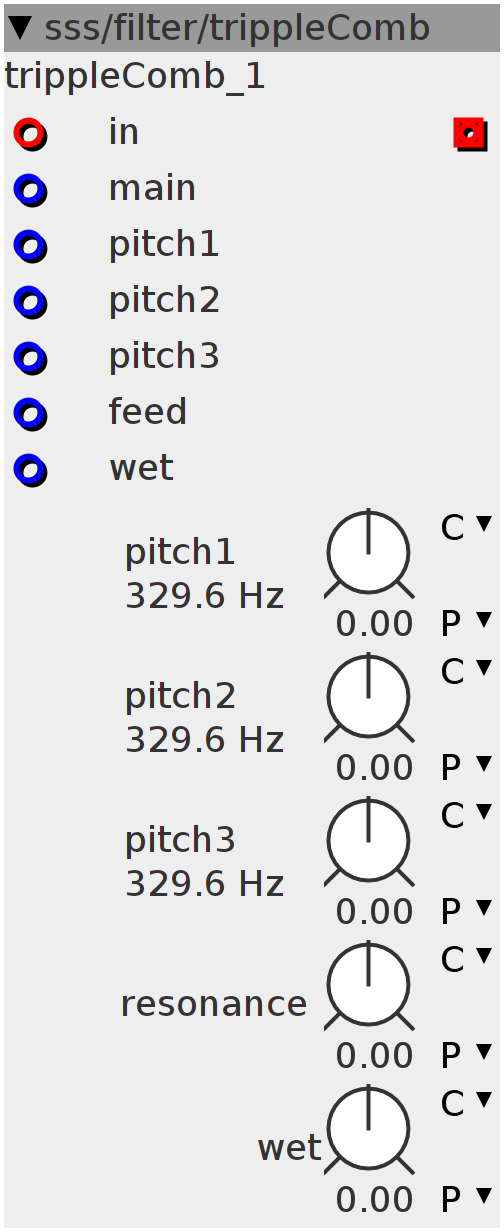

trippleComb

Tripple phaser/comb-filter Pitch controls the frequency position of the comb-filter. Resonance controls the feedback amount of all three comb-filters. Wet controls the level of the effected audio.
Author: Remco van der Most
License: BSD
Github: sss/filter/trippleComb.axo

Inlets

frac32buffer in

frac32 main

frac32 pitch1

frac32 pitch2

frac32 pitch3

frac32 feed

frac32 wet

Outlets

frac32buffer out

Parameters

frac32.s.map.pitch pitch1

frac32.s.map.pitch pitch2

frac32.s.map.pitch pitch3

frac32.s.map resonance

frac32.s.map wet

Declaration
int32_t array[2048];
int32_t write;
int32_t Freq1;
int32_t Freq2;
int32_t Freq3;
int32_t Freq4;
int32_t Freq5;
int32_t Freq6;
int32_t wet;
Init
for (int i = 0; i < 248; i++) {
  array[i] = 0;
}
Control Rate
int32_t pitch1 = -param_pitch1 - inlet_pitch1 + inlet_main;
int32_t pitch2 = -param_pitch2 - inlet_pitch2 + inlet_main;
int32_t pitch3 = -param_pitch3 - inlet_pitch3 + inlet_main;
int32_t Wet = param_wet + inlet_wet;
Wet = Wet > (-1 << 27) ? Wet : (-1 << 27);
Wet = Wet < (1 << 27) ? Wet : (1 << 27);
Audio Rate
Freq1 = Freq1 + ((pitch1 - Freq1) >> 8);
Freq2 = Freq2 + ((Freq1 - Freq2) >> 8);
pitch1 = Freq2;
int32_t freq1;
MTOF(pitch1, freq1);
int32_t frac1 = freq1;
freq1 = freq1 >> 19;
frac1 = (frac1 - (freq1 << 19)) << 10;
freq1 = freq1 > 1 ? freq1 : 2;
int32_t ifrac1 = (1 << 29) - frac1;

Freq3 = Freq3 + ((pitch2 - Freq3) >> 8);
Freq4 = Freq4 + ((Freq3 - Freq4) >> 8);
pitch2 = Freq4;
int32_t freq2;
MTOF(pitch2, freq2);
int32_t frac2 = freq2;
freq2 = freq2 >> 19;
frac2 = (frac2 - (freq2 << 19)) << 10;
freq2 = freq2 > 1 ? freq2 : 2;
int32_t ifrac2 = (1 << 29) - frac2;

Freq5 = Freq5 + ((pitch3 - Freq6) >> 8);
Freq6 = Freq6 + ((Freq5 - Freq6) >> 8);
pitch3 = Freq6;
int32_t freq3;
MTOF(pitch3, freq3);
int32_t frac3 = freq3;
freq3 = freq3 >> 19;
frac3 = (frac3 - (freq3 << 19)) << 10;
freq3 = freq3 > 1 ? freq3 : 2;
int32_t ifrac3 = (1 << 29) - frac3;
wet = wet + ((Wet - wet) >> 8);
write += 1;
write = write & 2047;
int32_t temp = 0;
temp += ___SMMUL(array[(write - freq1 - 1) & 2047] << 2, frac1);
temp += ___SMMUL(array[(write - freq1) & 2047] << 2, ifrac1);
temp += ___SMMUL(array[(write - freq2 - 1) & 2047] << 2, frac2);
temp += ___SMMUL(array[(write - freq2) & 2047] << 2, ifrac2);
temp += ___SMMUL(array[(write - freq3 - 1) & 2047] << 2, frac3);
temp += ___SMMUL(array[(write - freq3) & 2047] << 2, ifrac3);
outlet_out = ___SMMUL(temp << 3, wet << 2) + (inlet_in);
array[write] = inlet_in + ___SMMUL(temp << 3, param_resonance << 1);
