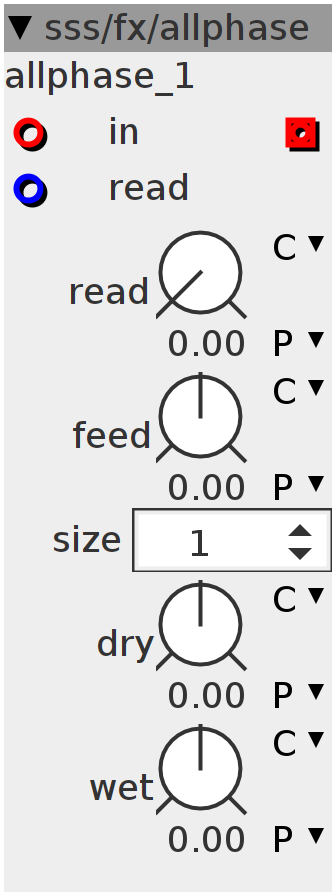

allphase

High quality phaser/allpass module with internal memory and interpolation between taps.
Author: Remco van der Most
License: BSD
Github: sss/fx/allphase.axo

Inlets

frac32 read

frac32buffer in

Outlets

frac32buffer out

Parameters

frac32.u.map read

frac32.s.map feed

frac32.s.map dry

frac32.s.map wet

int32 size

Declaration
int32_t delay[8192];
int32_t position;
int64_t read;
int64_t rea1;
int64_t rea2;
int64_t rea3;
int64_t reb1;
int64_t reb2;
int64_t reb3;
int64_t raad;
int64_t reed;
int64_t out;
int64_t mix;
int32_t ccomp;
int64_t prev;
int64_t READ;
int64_t ofs1;
int64_t ofs2;
int64_t ofs3;
float32_t scale;
int32_t prav;
int8_t dir;
int16_t size;
Control Rate
raad = (1 << 27) - ((param_read + inlet_read) & ((1 << 27) - 1));
dir = raad > prav ? 1 : 0;
size = param_size;

prav = raad;
Audio Rate
position += 1;
position = position - ((position >> size) << size);

reed = reed + ((raad - reed) >> 9);
READ = ((reed) >> (27 - size));

if (!(READ == prev)) {
  ofs1 = ofs2;
  ofs2 = ofs3;
  ofs3 = READ;
}

rea1 = position + ofs1;
rea2 = position + ofs2;
rea3 = position + ofs3;
rea1 = rea1 - ((rea1 >> size) << size);
rea2 = rea2 - ((rea2 >> size) << size);
rea3 = rea3 - ((rea3 >> size) << size);

mix = reed - ((READ << 27) >> size);
mix = (mix << size);
if (dir == 1) {
  mix = (1 << 27) - mix;
}
ccomp = (1 << 27) - mix;

delay[position] = inlet_in + ___SMMUL(out << 3, param_feed << 2);
out = (delay[rea2] + ___SMMUL(mix << 3, delay[rea1] << 2) +
       ___SMMUL(ccomp << 3, delay[rea3] << 2)) >>
      1;

outlet_out = ___SMMUL(param_wet << 2, out << 3) +
             ___SMMUL(param_dry << 2, inlet_in << 3);
prev = READ;
