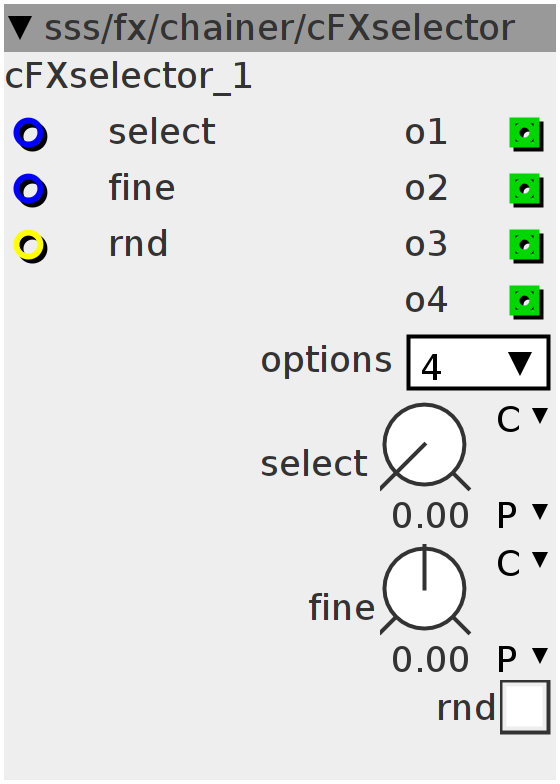

cFXselector
Combination module based on permutation: Creates a full list of 4-number-combinations from the available options. No repetition, no importance of order. eg: 1,2,3,4 1,2,3,5 or 3,6,8,11 (any increasing order) BUT NOT: 1,1,3,3,6 (no repetition of numbers) AND NOT: 3,1,6,5 (not smaller then any value left of itself) "select" knob is scaled to the amount of possible combinations "fine" knob can be used when using a high option count->otherwise the stepsize would be to big to select all possible combinations. The 4 outputs give you the selected indices. This module could be used for selecting 4 out of 16 functions which may not be selected twice.
Inlets
frac32 select
frac32 fine
bool32 rnd
Outlets
int32 o1
int32 o2
int32 o3
int32 o4
Parameters
frac32.u.map select
frac32.s.map fine
bool32.tgl rnd
Attributes
combo options
int i;
int T[13] = {1, 5, 15, 35, 70, 126, 210, 330, 495, 715, 1001, 1365, 1820};
int32_t C[4];
int options;
int32_t q = attr_options;
uint8_t *c;
// int c[attr_options<<2];
bool rnd;static uint8_t _array[attr_options << 2] __attribute__((section(".sdram")));
c = &_array[0];
for (i = 0; i < 13; i++) {
if (T[i] == attr_options) {
options = i + 4;
}
}
rnd = 1;
for (i = 0; i < 4; i++) {
c[i] = i;
}
int j;
for (i = 1; i < q; i++) {
int k = i << 2;
for (j = 0; j < 4; j++) {
c[k + j] = c[k + j - 4];
}
c[k + 3] += 1;
while ((c[k + 3] >= options) || (c[k + 2] >= options - 1) ||
(c[k + 1] >= options - 2)) {
if (c[k + 3] >= options) {
c[k + 2] += 1;
c[k + 3] = c[k + 2] + 1;
}
if (c[k + 2] >= (options - 1)) {
c[k + 1] += 1;
c[k + 2] = c[k + 1] + 1;
c[k + 3] = c[k + 2] + 1;
}
if (c[k + 1] >= (options - 2)) {
c[k] += 1;
c[k + 1] = c[k + 0] + 1;
c[k + 2] = c[k + 1] + 1;
c[k + 3] = c[k + 2] + 1;
}
}
}int RND = param_rnd || inlet_rnd;
if (RND < 1) {
int32_t set = ((param_fine + inlet_fine >> 8) + param_select + inlet_select) &
((1 << 27) - 1);
int pst = ___SMMUL(((q) << 1), set << 4) << 2;
outlet_o1 = c[pst];
outlet_o2 = c[pst + 1];
outlet_o3 = c[pst + 2];
outlet_o4 = c[pst + 3];
rnd = 1;
} else if (RND > 0) {
if (rnd > 0) {
rnd = 0;
for (i = 0; i < 4; i++) {
C[i] = -1;
}
bool tmp;
for (i = 0; i < 4; i++) {
tmp = 0;
while (tmp == 0) {
C[i] = (int32_t)(GenerateRandomNumber() % options);
tmp = ((C[i] == C[(i + 1) & 3]) || (C[i] == C[(i + 2) & 3]) ||
(C[i] == C[(i + 3) & 3])) > 0
? 0
: 1;
}
}
// int T[4];
// T[0]=
}
outlet_o1 = C[0];
outlet_o2 = C[1];
outlet_o3 = C[2];
outlet_o4 = C[3];
}
