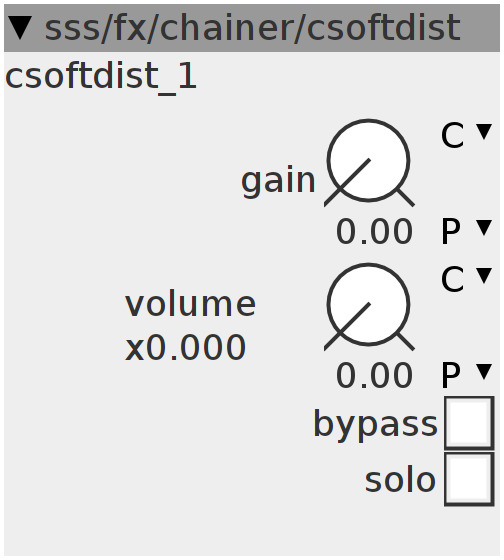

csoftdist
Soft distortion module to use with the chainFX effects chainer module. Controls can easily be editted for external control
Inlets
None
Outlets
None
Parameters
frac32.u.map.gain volume
bool32.tgl bypass
bool32.tgl solo
frac32.u.map gain
Declaration
uint32_t v30 = (uint32_t)1 << 30;
uint32_t v26 = (uint32_t)1 << 26;
uint32_t v27 = (uint32_t)1 << 27;
int32_t outL;
int32_t outR;
int32_t hpL;
int32_t hpR;
int32_t IL;
int32_t IR;
uint32_t gain;
uint32_t volume;
bool bypass, solo;
int32_t FX(int32_t inL, int32_t inR, int32_t CV1, int32_t CV2) {
IL = inL;
IR = inR;
int32_t GN1 = __SSAT(gain + CV1 + CV2, 28) << 4;
int32_t GN2 = __SSAT(gain + CV1 - CV2, 28) << 4;
hpL += inL - hpL >> 10;
hpR += inR - hpR >> 10;
inL -= hpL;
inR -= hpR;
inL = __SSAT(__SSAT(inL >> 7, 21) + __SSAT(___SMMUL(inL, GN1), 21), 21);
inR = __SSAT(__SSAT(inR >> 7, 21) + __SSAT(___SMMUL(inR, GN2), 21), 21);
inL = inL << 7;
inR = inR << 7;
outL = ___SMMUL(inL << 1, volume);
outR = ___SMMUL(inR << 1, volume);
if (bypass > 0) {
outL = IL;
outR = IR;
}
};
Control Rate
gain = param_gain;
volume = param_volume;
bypass = param_bypass;
solo = param_solo;
