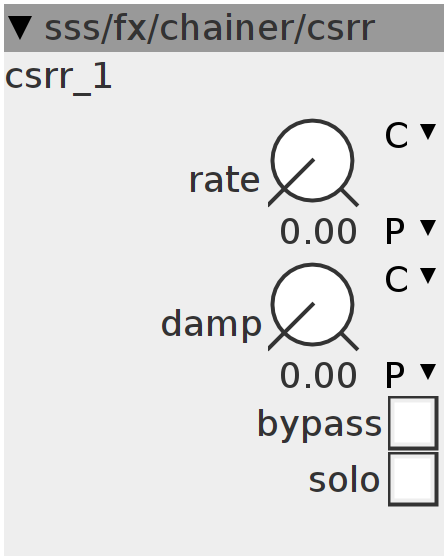

csrr
simple sample rate reducer module with LP-damping to use with the chainFX effects chainer module. Controls can easily be editted for external control
Inlets
None
Outlets
None
Parameters
frac32.u.map rate
frac32.u.map damp
bool32.tgl bypass
bool32.tgl solo
Declaration
uint32_t v31 = (uint32_t)1 << 31;
uint32_t v30 = (uint32_t)1 << 30;
int32_t outL;
int32_t outR;
uint32_t phs;
int32_t rate;
int32_t depth;
int32_t TM;
int32_t F1;
int32_t F2;
int32_t FD;
int32_t lpL;
int32_t lpR;
int32_t hpL;
int32_t hpR;
int32_t freq;
int32_t FR;
bool bypass, solo;
int32_t FX(int32_t inL, int32_t inR, int32_t CV1, int32_t CV2) {
MTOF(__SSAT((CV2 >> 1) * 0 + FR, 28), freq)
CV1 = CV1 > 0 ? CV1 : -CV1;
int32_t RT = ___SMMUL(__USAT(rate + CV1, 27), 500 << 5);
// lpL=___SMMLA(inL-lpL<<1,freq,lpL);
// lpR=___SMMLA(inR-lpR<<1,freq,lpR);
phs += 23;
if (phs > RT) {
phs -= RT;
// F1=lpL;
// F2=lpR;
F1 = inL * 3 >> 1;
F2 = inR * 3 >> 1;
}
lpL = ___SMMLA(F1 - lpL << 1, freq, lpL);
lpR = ___SMMLA(F2 - lpR << 1, freq, lpR);
hpL += lpL - hpL >> 9;
hpR += lpR - hpR >> 9;
outL = lpL - hpL;
outR = lpR - hpR;
if (bypass > 0) {
outL = inL;
outR = inR;
}
};
Init
phs = 0;
Control Rate
rate = param_rate;
FR = param_damp;
bypass = param_bypass;
solo = param_solo;
