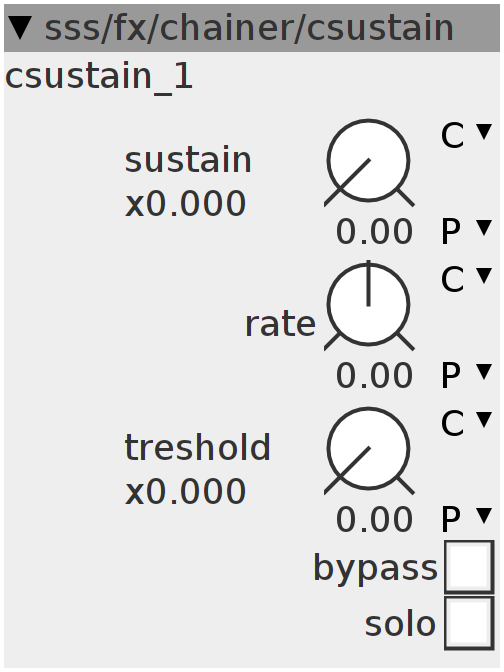

csustain
sustain module to use with the chainFX effects chainer module. Will push any signal above treshold level to the sustain level at a certain rate (attack/release). Decay sets the envelope decay of the envelope follower for the sustain level. Controls can easily be editted for external control
Inlets
None
Outlets
None
Parameters
frac32.u.map.gain sustain
frac32.s.map rate
frac32.u.map.squaregain treshold
bool32.tgl bypass
bool32.tgl solo
Declaration
uint32_t v30 = (uint32_t)1 << 30;
uint32_t v26 = (uint32_t)1 << 26;
uint32_t v27 = (uint32_t)1 << 27;
int32_t outL;
int32_t outR;
int32_t decay;
int32_t sustain;
int32_t rate;
int32_t valL;
int32_t valR;
int32_t onT;
int32_t GL;
int32_t GR;
int32_t gnL;
int32_t gnR;
int32_t hpL;
int32_t hpR;
int32_t LOG(int32_t in) {
Float_t f;
f.f = in;
int32_t r1 = ((f.parts.exponent & 0x7F) - 18) << 24;
int32_t r3 = logt[f.parts.mantissa >> 15] << 10;
return r3 = r1 + r3;
}
int32_t EXP(int32_t in) {
int8_t s = (in >> 24) + 4;
uint8_t ei = in >> 16;
int32_t OT;
if (s >= 0) {
return OT = expt[ei] << s;
} else {
return OT = expt[ei] >> (-s);
}
}
bool bypass, solo;
int32_t FX(int32_t inL, int32_t inR, int32_t CV1, int32_t CV2) {
hpL += inL - hpL >> 9;
hpR += inR - hpR >> 9;
inL -= hpL;
inR -= hpR;
int32_t IL = inL;
int32_t IR = inR;
inL = inL > 0 ? inL : -inL;
inR = inR > 0 ? inR : -inR;
if (inL > GL) {
GL = inL;
} else {
GL += inL - GL >> 18;
}
if (inR > GR) {
GR = inR;
} else {
GR += inR - GR >> 18;
}
if (inL > valL) {
valL = inL;
} else {
valL += ___SMMUL(inL - valL, rate) << 1;
}
if (inR > valR) {
valR = inR;
} else {
valR += ___SMMUL(inR - valR, rate) << 1;
}
valL = valL > onT ? valL : onT;
valR = valR > onT ? valR : onT;
gnL = LOG(GL) - LOG(valL);
gnR = LOG(GR) - LOG(valR);
MTOFEXTENDED(___SMMUL(sustain, gnL) << 1, gnL)
MTOFEXTENDED(___SMMUL(sustain, gnR) << 1, gnR)
outL = ___SMMUL(IL << 1, gnL) << 6;
outR = ___SMMUL(IR << 1, gnR) << 6;
if (bypass > 0) {
outL = IL;
outR = IR;
}
};
Control Rate
bypass = param_bypass;
solo = param_solo;
sustain = param_sustain;
onT = param_treshold >> 4;
MTOF(param_rate, rate)
