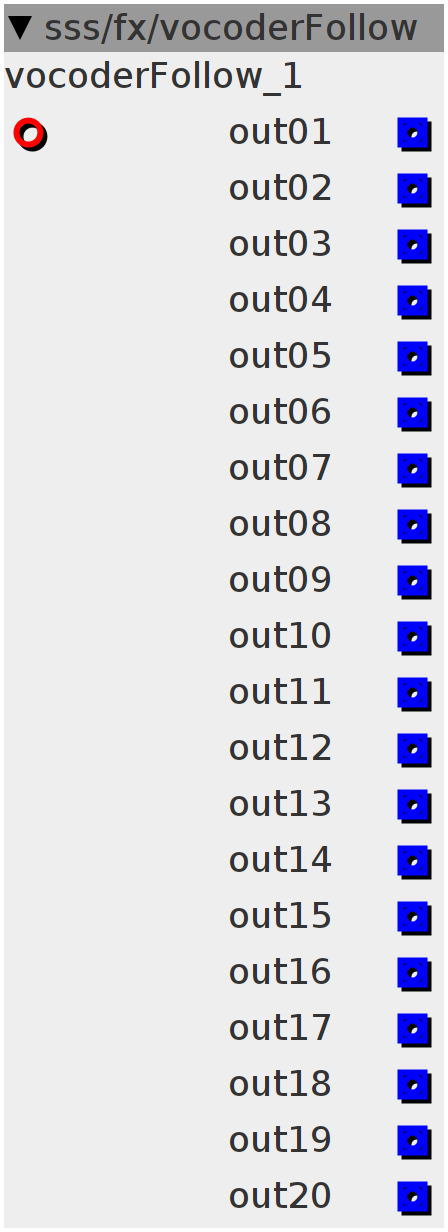

vocoderFollow
spectral analyzer turned into 20-band peakfollower with outputs for each band
Inlets
frac32buffer input
Outlets
frac32 out01
frac32 out02
frac32 out03
frac32 out04
frac32 out05
frac32 out06
frac32 out07
frac32 out08
frac32 out09
frac32 out10
frac32 out11
frac32 out12
frac32 out13
frac32 out14
frac32 out15
frac32 out16
frac32 out17
frac32 out18
frac32 out19
frac32 out20
biquad_state bs1[20];
biquad_state bs2[20];
biquad_coefficients bc1[20];
biquad_coefficients bc2[20];
int32_t val[20];int i;
for (i = 0; i < 20; i++) {
int32_t pitch = (-20 + (i * 4)) << 21;
int32_t freq;
MTOF(pitch, freq);
biquad_bp_coefs(&bc1[i], freq, INT_MAX - ((56 << 21) << 4));
biquad_clearstate(&bs1[i]);
int32_t pitch2 = pitch + (2 << 21);
int32_t freq2;
MTOF(pitch2, freq2);
biquad_bp_coefs(&bc2[i], freq2, INT_MAX - ((56 << 21) << 4));
biquad_clearstate(&bs2[i]);
}{
int32buffer t1;
biquad_dsp(&bs1[0], &bc1[0], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[0], &bc2[0], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[0] -= val[0] >> 6;
val[0] += accu >> 8;
outlet_out01 = val[0];
}
{
int32buffer t1;
biquad_dsp(&bs1[1], &bc1[1], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[1], &bc2[1], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[1] -= val[1] >> 6;
val[1] += accu >> 8;
outlet_out02 = val[1];
}
{
int32buffer t1;
biquad_dsp(&bs1[2], &bc1[2], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[2], &bc2[2], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[2] -= val[2] >> 6;
val[2] += accu >> 8;
outlet_out03 = val[2];
}
{
int32buffer t1;
biquad_dsp(&bs1[3], &bc1[3], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[3], &bc2[3], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[3] -= val[3] >> 6;
val[3] += accu >> 8;
outlet_out04 = val[3];
}
{
int32buffer t1;
biquad_dsp(&bs1[4], &bc1[4], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[4], &bc2[4], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[4] -= val[4] >> 6;
val[4] += accu >> 8;
outlet_out05 = val[4];
}
{
int32buffer t1;
biquad_dsp(&bs1[5], &bc1[5], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[5], &bc2[5], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[5] -= val[5] >> 6;
val[5] += accu >> 8;
outlet_out06 = val[5];
}
{
int32buffer t1;
biquad_dsp(&bs1[6], &bc1[6], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[6], &bc2[6], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[6] -= val[6] >> 6;
val[6] += accu >> 8;
outlet_out07 = val[6];
}
{
int32buffer t1;
biquad_dsp(&bs1[7], &bc1[7], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[7], &bc2[7], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[7] -= val[7] >> 6;
val[7] += accu >> 8;
outlet_out08 = val[7];
}
{
int32buffer t1;
biquad_dsp(&bs1[8], &bc1[8], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[8], &bc2[8], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[8] -= val[8] >> 6;
val[8] += accu >> 8;
outlet_out09 = val[8];
}
{
int32buffer t1;
biquad_dsp(&bs1[9], &bc1[9], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[9], &bc2[9], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[9] -= val[9] >> 6;
val[9] += accu >> 8;
outlet_out10 = val[9];
}
{
int32buffer t1;
biquad_dsp(&bs1[10], &bc1[10], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[10], &bc2[10], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[10] -= val[10] >> 6;
val[10] += accu >> 8;
outlet_out11 = val[10];
}
{
int32buffer t1;
biquad_dsp(&bs1[11], &bc1[11], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[11], &bc2[11], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[11] -= val[11] >> 6;
val[11] += accu >> 8;
outlet_out12 = val[11];
}
{
int32buffer t1;
biquad_dsp(&bs1[12], &bc1[12], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[12], &bc2[12], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[12] -= val[12] >> 6;
val[12] += accu >> 8;
outlet_out13 = val[12];
}
{
int32buffer t1;
biquad_dsp(&bs1[13], &bc1[13], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[13], &bc2[13], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[13] -= val[13] >> 6;
val[13] += accu >> 8;
outlet_out14 = val[13];
}
{
int32buffer t1;
biquad_dsp(&bs1[14], &bc1[14], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[14], &bc2[14], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[14] -= val[14] >> 6;
val[14] += accu >> 8;
outlet_out15 = val[14];
}
{
int32buffer t1;
biquad_dsp(&bs1[15], &bc1[15], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[15], &bc2[15], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[15] -= val[15] >> 6;
val[15] += accu >> 8;
outlet_out16 = val[15];
}
{
int32buffer t1;
biquad_dsp(&bs1[16], &bc1[16], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[16], &bc2[16], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[16] -= val[16] >> 6;
val[16] += accu >> 8;
outlet_out17 = val[16];
}
{
int32buffer t1;
biquad_dsp(&bs1[17], &bc1[17], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[17], &bc2[17], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[17] -= val[17] >> 6;
val[17] += accu >> 8;
outlet_out18 = val[17];
}
{
int32buffer t1;
biquad_dsp(&bs1[18], &bc1[18], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[18], &bc2[18], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[18] -= val[18] >> 6;
val[18] += accu >> 8;
outlet_out19 = val[18];
}
{
int32buffer t1;
biquad_dsp(&bs1[19], &bc1[19], inlet_in, t1);
int32buffer t2;
biquad_dsp(&bs2[19], &bc2[19], t1, t2);
long int accu = 0;
int i;
for (i = 0; i < BUFSIZE; i++)
accu += (t2[i] > 0 ? t2[i] : -t2[i]) >> 2;
val[19] -= val[19] >> 6;
val[19] += accu >> 8;
outlet_out20 = val[19];
}
