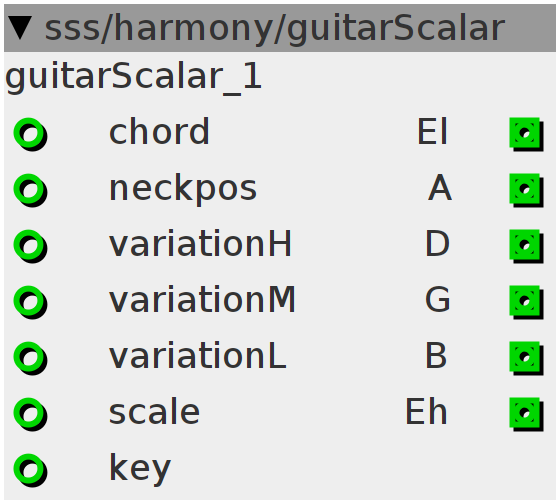

guitarScalar
Guitar-styled note-scaling module. Has 6 outputs to control 6 strings to play chords. Chords are based on the standard 1st-position chords and are ordered in the C-scale order: C-D-E-F-G-A-B following the modes of the scale. I-ii-iii-IV-V-vi-viiDim Each of these chords can be played on any position of the neck as a barre. Variations on the chords can be made using the variation inputs. These will add/subtract notes from the chord for each 2-string combination (low,mid and high strings). This way you can quickly make variations on the chords as well arpeggio's. All the generated notes will be scaled to the selected scale. 46! scales are included and each scale can be set to a key. See the Local Date for which scales are included. Scales are somewhat ordered on alphabetic orde (except the main major/minor scale variations which are the first ones). You can always set them to another order if you want, but keep the total at 46 as this selecting value gets wrapped above 46 in the code.
Inlets
int32 chord
int32 neckpos
int32 variationH
int32 variationM
int32 variationL
int32 scale
int32 key
Outlets
int32 El
int32 A
int32 D
int32 G
int32 B
int32 Eh
Declaration
int note[552] = {
0, 0, 2, 2, 4, 5, 5, 7, 7, 9, 9, 11, // major/ionian scale
0, 0, 2, 2, 4, 5, 5, 7, 8, 8, 11, 11, // major harmonic scale
0, 0, 2, 2, 4, 5, 6, 6, 8, 8, 10, 10, // major locrian scale
0, 0, 2, 2, 4, 5, 5, 7, 7, 9, 9, 10, // mixolydian/adonai malakh scale
0, 0, 2, 2, 4, 4, 7, 7, 9, 9, 11, 11, // pentatonic major scale
0, 0, 0, 3, 3, 5, 5, 7, 7, 7, 10, 10, // pentatonic minor scale
0, 0, 2, 3, 3, 5, 5, 7, 8, 8, 10, 10, // minor/aeolian scale
0, 1, 1, 3, 3, 5, 6, 6, 8, 8, 10, 10, // locrian scale
0, 0, 2, 3, 3, 5, 5, 7, 8, 8, 11, 11, // harmonic minor scale
0, 0, 2, 3, 3, 5, 5, 7, 7, 9, 9, 11, // melodic minor scale UP
0, 0, 2, 3, 3, 5, 5, 7, 7, 8, 8, 10, // melodic minor scale DOWN
0, 0, 2, 3, 3, 5, 6, 6, 8, 9, 9, 11, // diminished scale
0, 0, 0, 3, 4, 4, 4, 7, 8, 8, 8, 11, // augmented scale
0, 0, 2, 2, 4, 4, 6, 6, 8, 9, 9, 11, // augmented lydian scale
0, 1, 1, 4, 5, 5, 7, 7, 8, 8, 10, 10, // phrygian dominant scale
0, 1, 1, 3, 3, 5, 5, 7, 8, 8, 10, 10, // phrygian scale
0, 0, 2, 2, 4, 4, 6, 6, 9, 9, 10, 10, // prometheus scale
0, 0, 2, 2, 4, 4, 6, 7, 7, 9, 10, 10, // acoustic scale
// algerian scale
0, 1, 1, 3, 4, 4, 6, 6, 8, 8, 10, 10, // altered scale
0, 0, 2, 2, 4, 5, 5, 7, 8, 9, 9, 11, // major bebop
0, 0, 2, 2, 4, 5, 5, 7, 7, 9, 10, 11, // bebop scale
0, 0, 0, 4, 4, 5, 6, 7, 7, 7, 10, 10, // blues scale
0, 0, 2, 3, 3, 5, 5, 7, 7, 9, 10, 10, // dorian scale
0, 0, 2, 3, 3, 3, 6, 7, 7, 9, 10, 10, // ukrainian dorian scale
0, 1, 1, 1, 4, 5, 5, 7, 8, 8, 8, 11, // double Harmonic scale
0, 1, 1, 1, 4, 4, 6, 6, 8, 9, 10, 11, // enigmatic scale
0, 1, 1, 1, 4, 5, 5, 7, 8, 8, 8, 10, // flamenco scale
0, 0, 2, 3, 3, 3, 6, 7, 8, 8, 10, 10, // gypsy scale
0, 0, 2, 3, 3, 5, 6, 6, 8, 8, 10, 10, // half-diminished scale
// harmonic scale
0, 0, 3, 3, 4, 5, 5, 7, 7, 9, 9,
9, // scale of harmonics ***needs harmonic adjustment: 1/1 6/5 5/4 4/3
// 3/2 5/3 2/1
0, 0, 0, 4, 4, 4, 6, 6, 7, 7, 11, 11, // hirajoshi scale
0, 0, 2, 3, 3, 6, 6, 7, 8, 8, 11, 11, // hungarian gypsy scale
0, 0, 2, 3, 3, 6, 6, 7, 8, 8, 10, 10, // hungarian minor scale
0, 0, 1, 1, 1, 5, 5, 5, 7, 7, 8, 8, // ln scale
0, 0, 1, 1, 5, 5, 5, 7, 7, 7, 10, 10, // insen scale
0, 0, 1, 1, 3, 3, 4, 4, 6, 6, 7, 7, // istrian scale
0, 0, 1, 1, 1, 5, 5, 6, 6, 6, 10, 10, // iwatso scale
0, 1, 1, 3, 3, 5, 5, 7, 8, 8, 11, 11, // neapolitian minor scale
0, 1, 1, 3, 4, 4, 6, 7, 7, 9, 10, 10, // octatonic bass scale
0, 0, 2, 3, 3, 5, 6, 6, 8, 9, 9, 10, // octatonic melody scale
0, 1, 1, 3, 3, 3, 6, 7, 8, 8, 10,
10, // pelog scale ***prob needs detuning on 1,3,6 and
// 10, +,-,-,+ respectively***
0, 1, 1, 1, 4, 5, 6, 6, 8, 8, 10, 10, // persian scale
0, 0, 2, 2, 2, 5, 5, 7, 7, 7, 9,
9, // slendro scale ***prob needs detuning on
// 2,5,7 and 9, +,-,+,+ respectively***
0, 1, 1, 4, 4, 6, 6, 7, 7, 7, 10, 10, // tri tone scale
0, 0, 2, 2, 4, 4, 6, 6, 8, 8, 10, 10, // whole tone scale
0, 0, 0, 3, 3, 5, 5, 7, 7, 7, 10, 10, // yo scale
};
int var[6];
int chord[42] = {0, 3, 2, 0, 1, 0, 0, 0, 0, 2, 3, 1, 0, 2, 2, 0, 0, 0, 1, 0, 3,
2, 1, 1, 3, 2, 0, 0, 0, 1, 0, 0, 2, 2, 1, 0, 0, 2, 3, 4, 3, 0};
Control Rate
int vaL = inlet_variationL & 3;
int nxtL = inlet_variationL >> 2;
int vaM = inlet_variationM & 3;
int nxtM = inlet_variationM >> 2;
int vaH = inlet_variationH & 3;
int nxtH = inlet_variationH >> 2;
var[1] = (vaL & 1) * 2 + nxtL * 4;
var[2] = (vaL & 3) * 2 + nxtL * 4;
var[3] = (vaM & 1) * 2 + nxtM * 4;
var[4] = (vaM & 3) * 2 + nxtM * 4;
var[5] = (vaH & 1) * 2 + nxtH * 4;
var[6] = (vaH & 3) * 2 + nxtH * 4;
int key;
key = inlet_key * 7;
int scale = inlet_scale - (scale / 46) * 46;
scale = scale * 12;
key = key - (key / 12) * 12;
key = key < 0 ? key + 12 : key;
int32_t Chord = inlet_chord;
Chord = Chord - (Chord / 7) * 7;
Chord = Chord < 0 ? Chord + 7 : Chord;
int pos1 = inlet_neckpos + 7 + var[0] - key + chord[Chord * 6];
int oct1 = (pos1 / 12);
oct1 = oct1 < 0 ? oct1 + 1 : oct1;
pos1 = pos1 - oct1 * 12;
int pos2 = inlet_neckpos + 12 + var[1] - key + chord[Chord * 6 + 1];
int oct2 = (pos2 / 12);
oct2 = oct2 < 0 ? oct2 + 1 : oct2;
pos2 = pos2 - oct2 * 12;
int pos3 = inlet_neckpos + 17 + var[2] - key + chord[Chord * 6 + 2];
int oct3 = (pos3 / 12);
oct3 = oct3 < 0 ? oct3 + 1 : oct3;
pos3 = pos3 - oct3 * 12;
int pos4 = inlet_neckpos + 22 + var[3] - key + chord[Chord * 6 + 3];
int oct4 = (pos4 / 12);
oct4 = oct4 < 0 ? oct4 + 1 : oct4;
pos4 = pos4 - oct4 * 12;
int pos5 = inlet_neckpos + 26 + var[4] - key + chord[Chord * 6 + 4];
int oct5 = (pos5 / 12);
oct5 = oct5 < 0 ? oct5 + 1 : oct5;
pos5 = pos5 - oct5 * 12;
int pos6 = inlet_neckpos + 31 + var[5] - key + chord[Chord * 6 + 5];
int oct6 = (pos6 / 12);
oct6 = oct6 < 0 ? oct6 + 1 : oct6;
pos6 = pos6 - oct6 * 12;
if ((scale > 0) & (scale < 4)) {
key -= 3;
}
if (scale > 3) {
key -= 3;
}
outlet_El = note[pos1 + scale] + oct1 * 12 + key;
outlet_A = note[pos2 + scale] + oct2 * 12 + key;
outlet_D = note[pos3 + scale] + oct3 * 12 + key;
outlet_G = note[pos4 + scale] + oct4 * 12 + key;
outlet_B = note[pos5 + scale] + oct5 * 12 + key;
outlet_Eh = note[pos6 + scale] + oct6 * 12 + key;
