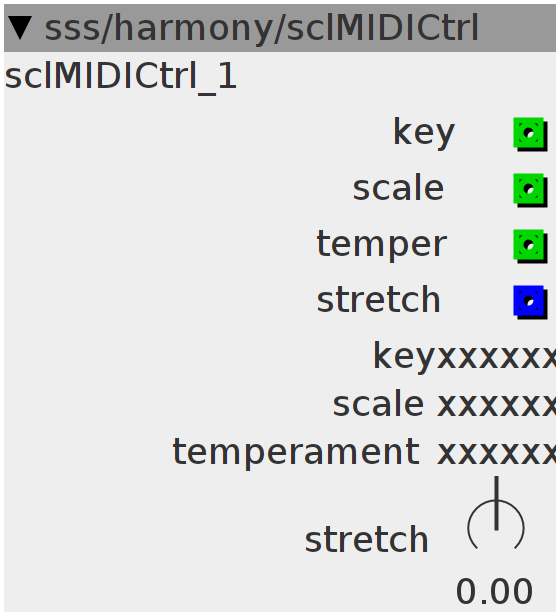

sclMIDICtrl
Key, scale, temperament and stretch controller Responds to external midi commands: key: cc87 scale: cc88 temperament: cc89 stretch: cc90 value==1 -> next key/scale/temperament or higher stretch value==127 -> former key/scale/temperament or lower stretch default value should be "0". press the "former" key button for a longer time (+- a second) to reset the parameters to zero.
Inlets
None
Outlets
int32 key
int32 scale
int32 temper
frac32 stretch
Displays
int32.label key
int32.label scale
int32.label temperament
frac32.s.dial stretch
int scale;
int key;
int temper;
int32_t stretch;
uint32_t cnt;
bool DO;key = 0;
scale = 0;
temper = 0;
stretch = 0;outlet_key = key;
outlet_scale = scale;
outlet_temper = temper;
outlet_stretch = stretch;
disp_key = key;
disp_scale = scale;
disp_temperament = temper;
disp_stretch = stretch;
if (DO > 0) {
cnt += 1;
if (cnt > 2000) {
key = 0;
scale = 0;
temper = 0;
stretch = 0;
}
} else {
cnt = 0;
}if ((status == 15 + MIDI_CONTROL_CHANGE) && (data1 == 87)) {
if (data2 == 127) {
key += 5;
key = key - key / 12 * 12;
}
if (data2 == 1) {
DO = 1;
key += 7;
key = key - key / 12 * 12;
}
if (data2 == 0) {
DO = 0;
}
}
if ((status == 15 + MIDI_CONTROL_CHANGE) && (data1 == 88)) {
if (data2 == 127) {
scale += 1;
scale = scale - scale / 46 * 46;
}
if (data2 == 1) {
scale += 45;
scale = scale - scale / 46 * 46;
}
}
if ((status == 15 + MIDI_CONTROL_CHANGE) && (data1 == 89)) {
if (data2 == 127) {
temper += 1;
temper = temper - temper / 137 * 137;
}
if (data2 == 1) {
temper += 136;
temper = temper - temper / 137 * 137;
}
}
if ((status == 15 + MIDI_CONTROL_CHANGE) && (data1 == 90)) {
if (data2 == 127) {
stretch += 1 << 20;
stretch = __SSAT(stretch, 27);
}
if (data2 == 1) {
stretch -= 1 << 20;
stretch = __SSAT(stretch, 27);
}
}
