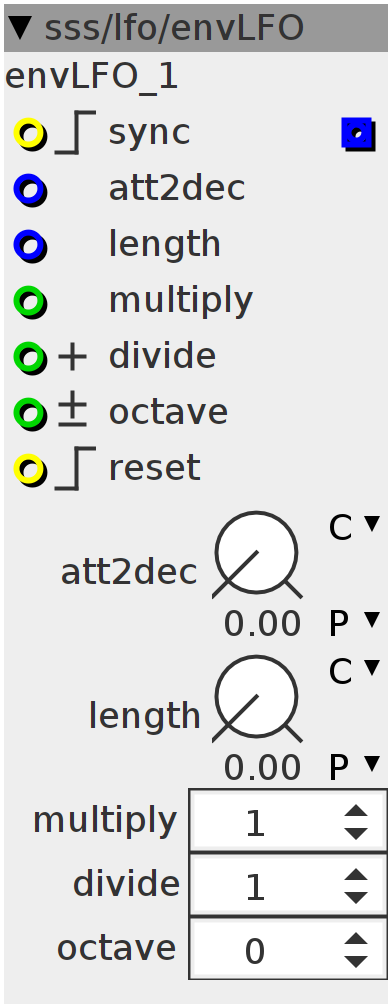

envLFO
Tempo Synced LFO with multiple waveforms out Envelope-LFO creats a positive linear envelope-type LFO Automatically syncs tempo to the incoming clock on sync-input. Tempo can be multiplied and divided by integers to keep a tight ratio and can also be shifted up/down up to 8 octaves. Reset resets the phase to zero. Length controls the length of the "envelope", making it shorter then the looping time of the LFO att2dec controls the attack/decay length ratio. pairs well with the expCurveK module for creating (inverse) exponential enveloping Reset will hard-reset the phase of the internal LFO
Inlets
frac32 att2dec
frac32 length
int32 multiply
int32.positive divide
int32.bipolar octave
bool32.rising sync
bool32.rising reset
Outlets
frac32 peak1
Parameters
int32 multiply
int32 divide
int32 octave
frac32.u.map att2dec
frac32.u.map length
uint64_t timer;
uint64_t held;
uint64_t hold;
int ttrig;
int rtrig;
int strig;
int utrig;
int64_t phase;
int32_t count;
int64_t divide;
int32_t multiply;
int8_t octave;
uint32_t tomer;
uint32_t tamer;
int32_t peak1;
int32_t val;
int32_t length;
int32_t att2dec;octave = param_octave + inlet_octave;
multiply = param_multiply + inlet_multiply;
divide = param_divide + inlet_divide;
length = __USAT(param_length + inlet_length, 27);
att2dec = __USAT(param_att2dec + inlet_att2dec, 27);
if ((inlet_reset > 0) && !utrig) {
utrig = 1;
timer = 0;
} else if (!(inlet_reset > 0)) {
utrig = 0;
}
if ((inlet_sync > 0) && !ttrig) {
ttrig = 1;
held = tamer;
tamer = 0;
} else if (!(inlet_sync > 0)) {
ttrig = 0;
}
tamer += 1;
timer += 1;
if (param_octave >= 0) {
timer = (timer - (timer / (held >> octave)) * (held >> octave));
hold = ___SMMUL((held >> octave) << 3, length << 2);
} else {
timer = (timer - (timer / (held << -octave)) * (held << -octave));
hold = ___SMMUL((held << -octave) << 3, param_length << 2);
}
tomer =
(timer * multiply / divide) - ((timer * multiply / divide) / hold) * hold;
tomer = timer >= hold ? hold : tomer;
int32_t attack;
int32_t decay;
attack = ___SMMUL(att2dec << 3, hold << 2);
decay = hold - attack;
peak1 = tomer > attack ? (1 << 27) - ((((tomer - attack) << 10) / decay) << 17)
: (((tomer << 10) / attack) << 17);
peak1 = ___SMMUL(peak1 << 3, peak1 << 2);
val = val + ((peak1 - val) >> 2);
outlet_peak1 = val;
