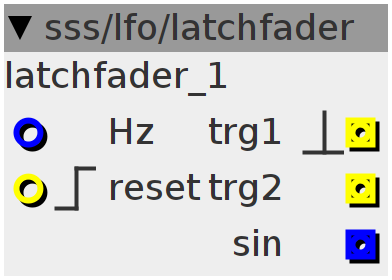

latchfader
latched value mixer, trigger outputs are high when sine is either high or low for the respective trigger outputs. Use with latch and xfade modules
Inlets
frac32 frequency
bool32.rising reset phase
Outlets
bool32.pulse trg1
bool32 trg2
frac32 sin
Declaration
uint32_t Phase;
uint32_t r;
uint32_t h;
int trg1;
int trg2;
int trg3;
int trg4;
Init
Phase = 0;
r = 1;
Control Rate
int32_t wave;
if (inlet_reset && r) {
Phase = 0;
r = 0;
} else {
if (!inlet_reset)
r = 1;
Phase += ((inlet_Hz) / 44 * 30);
}
wave = (Phase >> 5);
trg1 = (wave > (1 << 26)) ? (1 << 27) : 0;
trg2 = (1 << 27) - trg1;
outlet_trg1 = trg1 * ((trg3 == 0) ? 1 : 0);
outlet_trg2 = trg2 * ((trg4 == 0) ? 1 : 0);
trg3 = trg1;
trg4 = trg2;
int32_t Sin;
SINE2TINTERP(Phase - (1 << 29), Sin)
outlet_sin = -(Sin >> 5) + (1 << 26);
