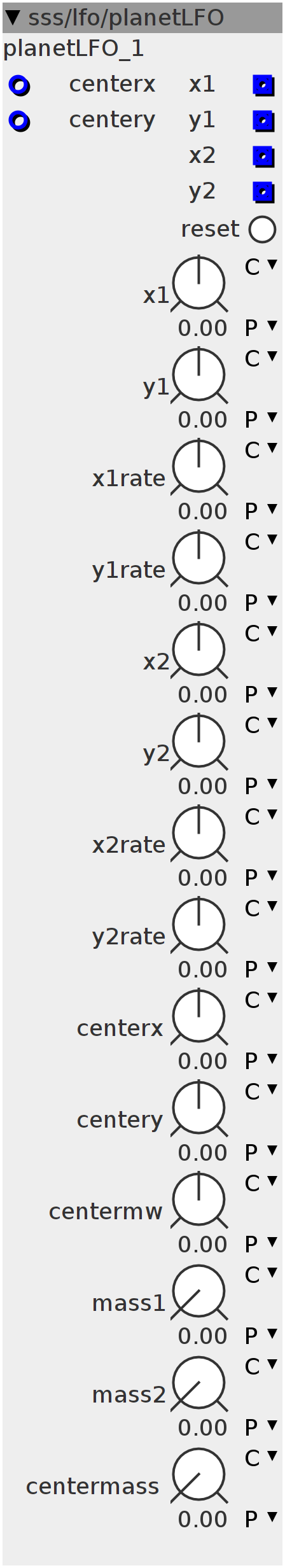

planetLFO
LFO that mimics the interaction of 2 "loose" planets and a "fixed/controlled" planet. centerx and centery parameters/inputs control the x/y position of the "fixed/controlled" planet. centermw controls the modulation width of the external xy modulation of the center. x1,y1 and rate1 are the starting positions of the 1st "loose" planet. x2,y2 and rate2 are the starting positions of the 2nd "loose" planet. mass controls the "strength" of the planet in comparison to the "loose" planets for the "loose planets: the heavier the planet, the slower it will respond to a smaller planet. the smaller the planet, the faster it will respond to a heavier planet.
Inlets
frac32 centerx
frac32 centery
Outlets
frac32 x1
frac32 y1
frac32 x2
frac32 y2
Parameters
bool32.mom reset
frac32.s.map x1
frac32.s.map y1
frac32.s.map x1rate
frac32.s.map y1rate
frac32.s.map x2
frac32.s.map y2
frac32.s.map x2rate
frac32.s.map y2rate
frac32.s.map centerx
frac32.s.map centery
frac32.s.map centermw
frac32.u.map mass1
frac32.u.map mass2
frac32.u.map centermass
int32_t position1x;
int32_t position1y;
int32_t position2x;
int32_t position2y;
float32_t rate1x;
float32_t rate1y;
float32_t rate2x;
float32_t rate2y;
int reset;
int rtrig;reset = 1;
rate1x = 0;
rate1y = 0;
rate2x = 0;
rate2y = 0;int32_t centerx =
___SMMUL(param_centermw << 3, inlet_centerx << 2) + param_centerx;
int32_t centery =
___SMMUL(param_centermw << 3, inlet_centery << 2) + param_centery;
float32_t ratio =
((float32_t)(param_mass1 + 1)) / ((float32_t)(param_mass2 + 1));
float32_t iratio = ((float32_t)(1)) / ratio;
float32_t cratio1 =
((float32_t)(param_centermass + 1)) / ((float32_t)(param_mass1 + 1));
float32_t icratio1 = ((float32_t)(1)) / cratio1;
float32_t cratio2 =
((float32_t)(param_centermass + 1)) / ((float32_t)(param_mass2 + 1));
float32_t icratio2 = ((float32_t)(1)) / cratio2;
if (reset > 0) {
position1x = param_x1;
position1y = param_y1;
position2x = param_x2;
position2y = param_y2;
rate1x = param_x1rate >> 13;
rate1y = param_y1rate >> 13;
rate2x = param_x2rate >> 13;
rate2y = param_y2rate >> 13;
}
reset = 0;
int32_t diffx = position1x - position2x;
int32_t diffy = position1y - position2y;
int32_t distance =
___SMMUL(diffx << 3, diffx << 2) + ___SMMUL(diffy << 3, diffy << 2);
float32_t idist = distance;
idist = idist == 0 ? 1 : idist;
idist = _VSQRTF(idist) * (1 << 7);
int32_t xdist1 = position1x - centerx;
int32_t ydist1 = position1y - centery;
xdist1 =
___SMMUL(xdist1 << 3, xdist1 << 2) + ___SMMUL(ydist1 << 3, ydist1 << 2);
float32_t ixdist1 = xdist1;
ixdist1 = ixdist1 == 0 ? 1 : ixdist1;
ixdist1 = _VSQRTF(ixdist1) * (1 << 7);
int32_t xdist2 = position2x - centerx;
int32_t ydist2 = position2y - centery;
xdist2 =
___SMMUL(xdist2 << 3, xdist2 << 2) + ___SMMUL(ydist2 << 3, ydist2 << 2);
float32_t ixdist2 = xdist2;
ixdist2 = ixdist2 == 0 ? 1 : ixdist2;
ixdist2 = _VSQRTF(ixdist2) * (1 << 7);
rate1x -= ((float32_t)(diffx)) / (((float32_t)(idist)) * iratio) +
((float32_t)(+(position1x - centerx))) /
(((float32_t)(ixdist1)) * icratio1);
rate1y -= ((float32_t)(diffy)) / (((float32_t)(idist)) * iratio) +
((float32_t)(+(position1y - centery))) /
(((float32_t)(ixdist1)) * icratio1);
rate2x += ((float32_t)(diffx)) / (((float32_t)(idist)) * ratio) +
((float32_t)(-(position2x - centerx))) /
(((float32_t)(ixdist2)) * icratio2);
rate2y += ((float32_t)(diffy)) / (((float32_t)(idist)) * ratio) +
((float32_t)(-(position2y - centery))) /
(((float32_t)(ixdist2)) * icratio2);
outlet_x1 = position1x += rate1x;
outlet_y1 = position1y += rate1y;
outlet_x2 = position2x += rate2x;
outlet_y2 = position2y += rate2y;
if ((param_reset > 0) && (!(rtrig == 1))) {
rtrig = 1;
reset = 1;
} else {
reset = 0;
if (!(param_reset > 0)) {
rtrig = 0;
}
}
position1x = __SSAT(position1x, 28);
position1y = __SSAT(position1y, 28);
position2x = __SSAT(position2x, 28);
position2y = __SSAT(position2y, 28);
// position1x=(position1x<<3)>>3;
// position1y=(position1y<<3)>>3;
// position2x=(position2x<<3)>>3;
// position2y=(position2y<<3)>>3;
