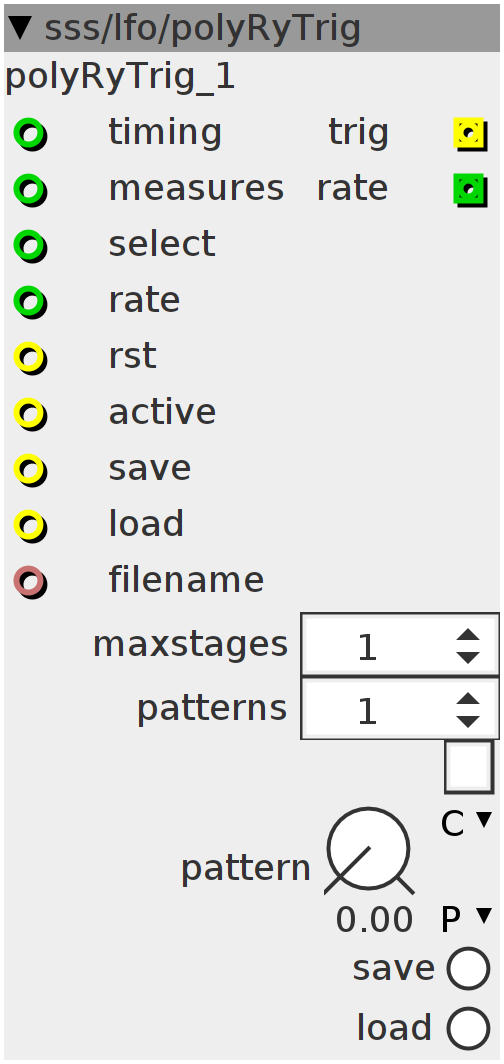

polyRyTrig
Module to provide a tempo-synced and controlled trigger. To be used with the "polycountMan" module to make polyrythmic trigger sequences. Triggers are generated by an internal LFO, host-synced through the "timing" input->connect this to the "sss/midi/clock" module's "time" output or use the "timing/clock2timing" module together with an LFO to provide the time. For the amount of triggers per stage (set by the amount of measures), you can use the "Mselect" switch to switch between the internal array (off) (edited with the "arrayEdit" module) and the "measures" input(on). When "on" the trigger-rate will follow the stage-length even if the internal array is set to another value, result is that the rate stays the same for each stage, no matter the measures-length. When "off", the "select" input selects from the internal table the amount of triggers to be generated within the time that the current amount of measures will take (measureInput*timing/triggers=triggerTiming). Lastly, the triggerTiming can be further divided by the "rate" input. This is useful for creating quick fills. The "rst" input resets the internal LFO and should be connected to the "c" output of the polyCount module (stage trigger). The "active" input should be connected to either the "active" output on the polyCount module or a toggle-button to switch it on manually.
Inlets
bool32 rst
bool32 active
bool32 save
bool32 load
charptr32 filename
int32 timing
int32 measures
int32 select
int32 rate
Outlets
bool32 trig
int32 rate
Parameters
bool32.tgl Mselect
frac32.u.map pattern
bool32.mom save
bool32.mom load
Attributes
spinner maxstages
spinner patterns
static const uint32_t LENGTH = attr_maxstages;
static const int patt = attr_patterns;
uint8_t *array;
int32_t count;
int rtrig;
int strig;
int ltrig;
int length;static uint8_t _array[LENGTH * patt] __attribute__((section(".sdram")));
array = &_array[0];int save = param_save + inlet_save;
int load = param_load + inlet_load;
if ((save > 0) && !strig) {
strig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_written;
err = f_open(&FileObject, inlet_filename, FA_WRITE | FA_CREATE_ALWAYS);
if (err != FR_OK) {
report_fatfs_error(err, "inlet_filename");
return;
}
int rem_sz = sizeof(*array) * (LENGTH * patt);
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
memcpy((char *)fbuff, (char *)(&array[0]) + offset, sizeof(fbuff));
err = f_write(&FileObject, fbuff, sizeof(fbuff), &bytes_written);
rem_sz -= sizeof(fbuff);
offset += sizeof(fbuff);
} else {
memcpy((char *)fbuff, (char *)(&array[0]) + offset, rem_sz);
err = f_write(&FileObject, fbuff, rem_sz, &bytes_written);
rem_sz = 0;
}
}
if (err != FR_OK)
report_fatfs_error(err, "inlet_filename");
err = f_close(&FileObject);
if (err != FR_OK)
report_fatfs_error(err, "inlet_filename");
} else if (!(save > 0))
strig = 0;
if ((load > 0) && !ltrig) {
ltrig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_read;
err = f_open(&FileObject, inlet_filename, FA_READ | FA_OPEN_EXISTING);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
}
int rem_sz = sizeof(*array) * (LENGTH * patt);
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
err = f_read(&FileObject, fbuff, sizeof(fbuff), &bytes_read);
if (bytes_read == 0)
break;
memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
rem_sz -= bytes_read;
offset += bytes_read;
} else {
err = f_read(&FileObject, fbuff, rem_sz, &bytes_read);
memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
rem_sz = 0;
}
}
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
err = f_close(&FileObject);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
} else if (!(load > 0))
ltrig = 0;
int32_t Patt = ___SMMUL(__USAT(param_pattern, 27) << 2, patt - 1 << 3);
Patt = Patt - Patt / patt * patt;
Patt = Patt * LENGTH;
int rate = inlet_select;
rate = rate - rate / length * length;
int32_t timing = inlet_timing * inlet_measures /
(param_Mselect > 0 ? inlet_measures : array[rate + Patt]) /
(inlet_rate > 0 ? inlet_rate : 1);
if ((inlet_rst) && !rtrig) {
rtrig = 1;
count = -1;
} else if (inlet_rst == 0) {
rtrig = 0;
}
count += 1;
count = count >= timing ? 0 : count;
outlet_trig = (count < (timing >> 1)) && inlet_active;
outlet_rate = param_Mselect > 0 ? inlet_measures : array[rate + Patt];
