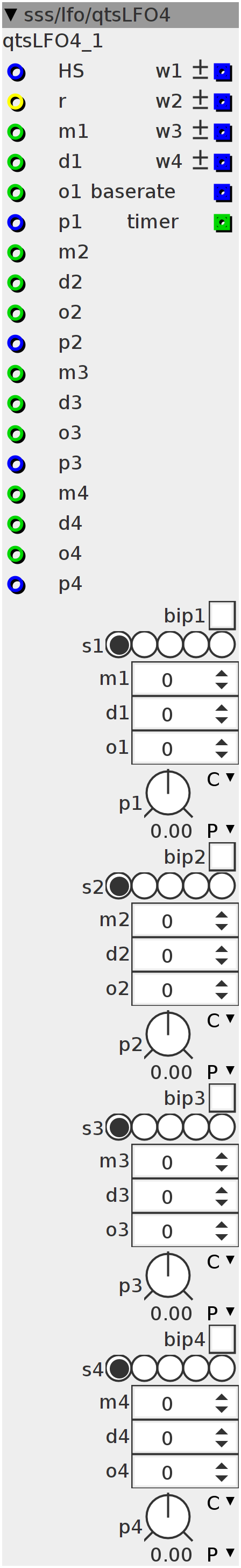

qtsLFO4
quad tempo synced sine wave LFO with inputs for multiplying, dividing and octaving the tempo and a phase-offset control.
Inlets
frac32 feed a LFO trigger/continuous signal to clock-sync the LFO.
frac32 phase offset
frac32 p2
frac32 p3
frac32 p4
bool32 r
int32 mutliply tempo
int32 divide tempo
int32 tempo octave down/up
int32 m2
int32 d2
int32 o2
int32 m3
int32 d3
int32 o3
int32 m4
int32 d4
int32 o4
Outlets
frac32.bipolar sine wave
frac32.bipolar w2
frac32.bipolar w3
frac32.bipolar w4
frac32 baserate
int32 timer
Parameters
int32 m1
int32 d1
int32 o1
int32 m2
int32 d2
int32 o2
int32 m3
int32 d3
int32 o3
int32 m4
int32 d4
int32 o4
frac32.s.map p1
frac32.s.map p2
frac32.s.map p3
frac32.s.map p4
bool32.tgl bip1
bool32.tgl bip2
bool32.tgl bip3
bool32.tgl bip4
int32.hradio s1
int32.hradio s2
int32.hradio s3
int32.hradio s4
uint32_t Phase[4];
int32_t sine[4];
int32_t M[4];
int32_t D[4];
float32_t O[4];
int32_t p[4];
int S[4];
int ttrig;
int32_t count;
int32_t timer;
float32_t rate;
int i;
int rtrig;
int32_t tri(uint32_t P1, int instance) {
int32_t temp = P1 + (1 << 30);
temp = temp > 0 ? temp : -temp;
sine[instance] = (temp - (1 << 30)) << 1;
}timer = (1 << 31);
count = (1 << 31);if ((inlet_r > 0) && !rtrig) {
rtrig = 1;
for (i = 0; i < 4; i++) {
Phase[i] = 0;
}
}
else if (inlet_r <= 0) {
rtrig = 0;
}
// rate=((float32_t)(timer))/((float32_t)(48000));
// rate=(((1<<31)/1500)/rate);
rate = (float32_t)(1 << 29) / timer * 8;
M[0] = param_m1 + inlet_m1;
M[1] = param_m2 + inlet_m2;
M[2] = param_m3 + inlet_m3;
M[3] = param_m4 + inlet_m4;
D[0] = param_d1 + inlet_d1;
D[1] = param_d2 + inlet_d2;
D[2] = param_d3 + inlet_d3;
D[3] = param_d4 + inlet_d4;
O[0] = param_o1 + inlet_o1 > 0
? (1 << param_o1 + inlet_o1)
: ((float32_t)(1)) / ((float32_t)(1 << -(param_o1 + inlet_o1)));
O[1] = param_o2 + inlet_o2 > 0
? (1 << param_o2 + inlet_o2)
: ((float32_t)(1)) / ((float32_t)(1 << -(param_o2 + inlet_o2)));
O[2] = param_o3 + inlet_o3 > 0
? (1 << param_o3 + inlet_o3)
: ((float32_t)(1)) / ((float32_t)(1 << -(param_o3 + inlet_o3)));
O[3] = param_o4 + inlet_o4 > 0
? (1 << param_o4 + inlet_o4)
: ((float32_t)(1)) / ((float32_t)(1 << -(param_o4 + inlet_o4)));
p[0] = inlet_p1 + param_p1;
p[1] = inlet_p2 + param_p2;
p[2] = inlet_p3 + param_p3;
p[3] = inlet_p4 + param_p4;
S[0] = param_s1;
S[1] = param_s2;
S[2] = param_s3;
S[3] = param_s4;
for (i = 0; i < 4; i++) {
Phase[i] += (((int32_t)((rate * M[i] / D[i]) * O[i])));
if (S[i] == 0) {
SINE2TINTERP(Phase[i] + (p[i] << 4), sine[i])
}
if (S[i] == 1) {
tri(Phase[i] + (p[i] << 4), i);
}
if (S[i] == 2) {
sine[i] = Phase[i] + (p[i] << 4);
}
if (S[i] == 3) {
sine[i] = -Phase[i] - (p[i] << 4);
}
if (S[i] == 4) {
sine[i] = ((Phase[i] + (p[i] << 4)) & ((1 << 32) - 1)) > (1 << 31)
? ((1 << 31) - 1)
: -(1 << 31) + 1;
}
}
if (param_bip1 > 0) {
outlet_w1 = (sine[0] >> 4);
} else {
outlet_w1 = (sine[0] >> 5) + (1 << 26);
}
if (param_bip2 > 0) {
outlet_w2 = (sine[1] >> 4);
} else {
outlet_w2 = (sine[1] >> 5) + (1 << 26);
}
if (param_bip3 > 0) {
outlet_w3 = (sine[2] >> 4);
} else {
outlet_w3 = (sine[2] >> 5) + (1 << 26);
}
if (param_bip4 > 0) {
outlet_w4 = (sine[3] >> 4);
} else {
outlet_w4 = (sine[3] >> 5) + (1 << 26);
}
outlet_baserate = (int32_t)rate * 16;
outlet_timer = timer;if ((inlet_HS > 0) && (!(ttrig))) {
ttrig = 1;
timer = count;
count = 0;
} else if (!(inlet_HS > 0)) {
ttrig = 0;
}
count += 1;
