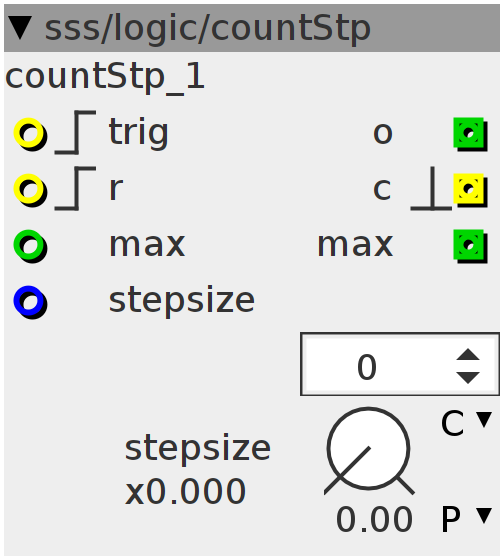

countStp
cyclic up counter with modifiable stepsize and maximum output. IMPORTANT: Counter-length is set by "max" INPUT. Output-value is wrapped between 0 and "maximum" SELECTOR. Made be used with the "gateSpreader" module, but whatever, use it for anything
Inlets
bool32.rising trigger
bool32.rising reset
int32 max
frac32 stepsize
Outlets
int32 output
int32 max
bool32.pulse carry pulse
Parameters
int32 maximum
frac32.u.map.gain stepsize
int ntrig;
int rtrig;
int count;count = 0;
ntrig = 0;
rtrig = 0;outlet_c = 0;
int max = inlet_max;
if ((inlet_trig > 0) && !ntrig) {
count += 1;
if (count >= max) {
count = 0;
outlet_c = 1;
}
ntrig = 1;
} else if (!(inlet_trig > 0))
ntrig = 0;
if ((inlet_r > 0) && !rtrig) {
count = 0;
rtrig = 1;
} else if (!(inlet_r > 0))
rtrig = 0;
int cnt = count;
int32_t stepsize = param_stepsize + (inlet_stepsize << 4);
stepsize = stepsize > 0 ? stepsize : -stepsize;
cnt = count * (___SMMUL(stepsize, param_maximum) << 1);
cnt = cnt - cnt / param_maximum * param_maximum;
outlet_o = cnt;
outlet_max = param_maximum;
