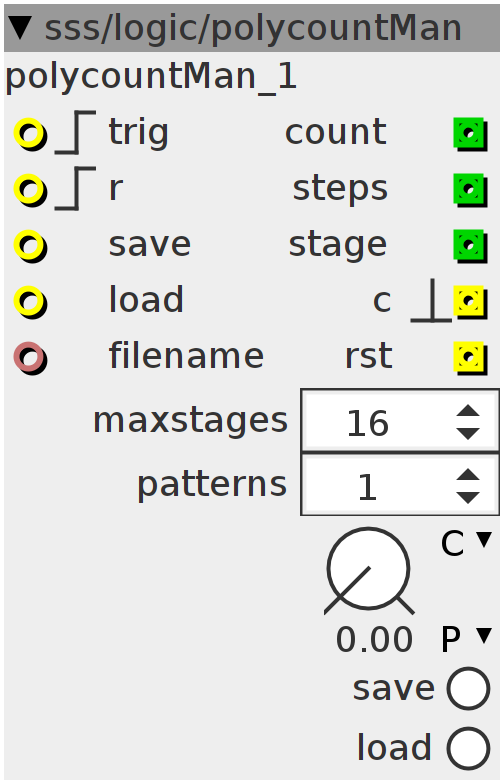

polycountMan
variable stage-beatlength counter. This module functions like the polycount module, but has a manual control for the length of each stage instead of being randomly generated. Set the internal table for the beatlength with the dedicated external module (arrayEdit module). -trig: connect main clock trigger (advisable to use my sss/midi/clock module to sync to midi-host->also outputs beat-sample-length for use with other modules). -r: connect to a reset source ("active" on midiclock, some clockdivider or manual button). -count: outputs the beat-count within each stage. Each new stage, this count will restart and count up to the stage-lenght. -steps: outputs the beat-length of the current stage (how many steps the count has in total of current stage). -stage: outputs the current stage-index number. -c: outputs a trigger each time the stage advances. -rst: outputs a trigger when all stages are completed and restarts at stage zero. -length attribute: sets the maximum length of a single pattern. -pattern attribute: sets the maximum amount of patterns to be made. -pattern input/control: sets which pattern to be read from the table. This is scaled to the max amount of patterns, this enables easy midi-control!
Inlets
charptr32 filename
bool32.rising trigger
bool32.rising reset
bool32 save
bool32 load
Outlets
int32 count
int32 output
int32 stage
bool32.pulse carry pulse
bool32 rst
Parameters
frac32.u.map pattern
bool32.mom save
bool32.mom load
Attributes
spinner maxstages
spinner patterns
static const uint32_t LENGTH = attr_maxstages;
static const int patt = attr_patterns;
uint8_t *array;
int ntrig;
int rtrig;
int count;
int cnt;
int length;
int rst;
int ltrig;
int strig;static uint8_t _array[LENGTH * patt] __attribute__((section(".sdram")));
array = &_array[0];
count = 0;
ntrig = 0;
rtrig = 0;
cnt = 0;int save = param_save + inlet_save;
int load = param_load + inlet_load;
if ((save > 0) && !strig) {
strig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_written;
err = f_open(&FileObject, inlet_filename, FA_WRITE | FA_CREATE_ALWAYS);
if (err != FR_OK) {
report_fatfs_error(err, "inlet_filename");
return;
}
int rem_sz = sizeof(*array) * (LENGTH * patt);
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
memcpy((char *)fbuff, (char *)(&array[0]) + offset, sizeof(fbuff));
err = f_write(&FileObject, fbuff, sizeof(fbuff), &bytes_written);
rem_sz -= sizeof(fbuff);
offset += sizeof(fbuff);
} else {
memcpy((char *)fbuff, (char *)(&array[0]) + offset, rem_sz);
err = f_write(&FileObject, fbuff, rem_sz, &bytes_written);
rem_sz = 0;
}
}
if (err != FR_OK)
report_fatfs_error(err, "inlet_filename");
err = f_close(&FileObject);
if (err != FR_OK)
report_fatfs_error(err, "inlet_filename");
} else if (!(save > 0))
strig = 0;
if ((load > 0) && !ltrig) {
ltrig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_read;
err = f_open(&FileObject, inlet_filename, FA_READ | FA_OPEN_EXISTING);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
}
int rem_sz = sizeof(*array) * (LENGTH * patt);
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
err = f_read(&FileObject, fbuff, sizeof(fbuff), &bytes_read);
if (bytes_read == 0)
break;
memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
rem_sz -= bytes_read;
offset += bytes_read;
} else {
err = f_read(&FileObject, fbuff, rem_sz, &bytes_read);
memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
rem_sz = 0;
}
}
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
err = f_close(&FileObject);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
} else if (!(load > 0))
ltrig = 0;
outlet_c = 0;
int32_t Patt = ___SMMUL(__USAT(param_pattern, 27) << 2, patt - 1 << 3);
Patt = Patt - Patt / patt * patt;
Patt = Patt * LENGTH;
rst = 0;
if ((inlet_r > 0) && !rtrig) {
count = -1;
cnt = -1;
rst = 1;
rtrig = 1;
} else if (!(inlet_r > 0))
rtrig = 0;
if ((inlet_trig > 0) && !ntrig) {
count += 1;
if (count >= array[(cnt >= 0 ? cnt : 0) + Patt]) {
cnt += 1;
cnt = cnt - cnt / length * length;
count = 0;
outlet_c = 1;
}
ntrig = 1;
} else if (!(inlet_trig > 0))
ntrig = 0;
outlet_rst = (cnt == 0 ? 1 : 0) || rst;
outlet_steps = array[(cnt >= 0 ? cnt : 0) + Patt];
outlet_count = count;
outlet_stage = cnt;
