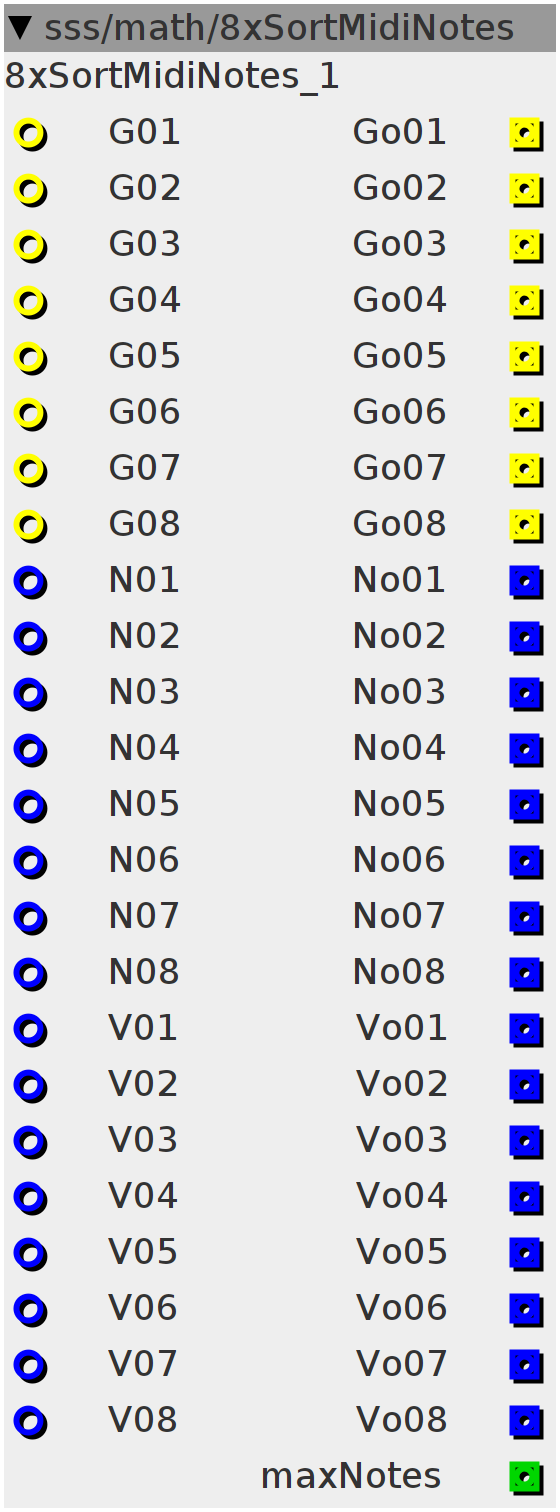

8xSortMidiNotes
8x Midi-note sorting: The value of the note-inputs are cross-compared and determine how the notes are sorted out. The destination determined by the note-inputs are also used to determine the outputs of the gate and velocity values (or any other signal for that matter, what counts is that the N01->N08 inputs determine sorting process!) When a gate input is low, a high value is added to the respective unused note-pitch, to send it to one of the bottom outputs of the list (depending on how many gates are off). The maxNotes output is the sum of all gates. To be used with a counter and multiplexer to set the max range for arpeggiators for example.
Inlets
bool32 G01
bool32 G02
bool32 G03
bool32 G04
bool32 G05
bool32 G06
bool32 G07
bool32 G08
frac32 N01
frac32 N02
frac32 N03
frac32 N04
frac32 N05
frac32 N06
frac32 N07
frac32 N08
frac32 V01
frac32 V02
frac32 V03
frac32 V04
frac32 V05
frac32 V06
frac32 V07
frac32 V08
Outlets
bool32 Go01
bool32 Go02
bool32 Go03
bool32 Go04
bool32 Go05
bool32 Go06
bool32 Go07
bool32 Go08
frac32 No01
frac32 No02
frac32 No03
frac32 No04
frac32 No05
frac32 No06
frac32 No07
frac32 No08
frac32 Vo01
frac32 Vo02
frac32 Vo03
frac32 Vo04
frac32 Vo05
frac32 Vo06
frac32 Vo07
frac32 Vo08
int32 maxNotes
int32_t a1;
int32_t b1;
int32_t c1;
int32_t d1;
int32_t e1;
int32_t f1;
int32_t g1;
int32_t h1;
uint8_t a2;
uint8_t b2;
uint8_t c2;
uint8_t d2;
uint8_t e2;
uint8_t f2;
uint8_t g2;
uint8_t h2;
int i;
uint32_t _position[8];
int _gate[8];
uint32_t _velocity[8];a1 = inlet_N01 + (1 << 27) + (inlet_G01 < 1 ? (1 << 27) : 0);
b1 = inlet_N02 + (1 << 27) + (inlet_G02 < 1 ? (1 << 27) : 0);
c1 = inlet_N03 + (1 << 27) + (inlet_G03 < 1 ? (1 << 27) : 0);
d1 = inlet_N04 + (1 << 27) + (inlet_G04 < 1 ? (1 << 27) : 0);
e1 = inlet_N05 + (1 << 27) + (inlet_G05 < 1 ? (1 << 27) : 0);
f1 = inlet_N06 + (1 << 27) + (inlet_G06 < 1 ? (1 << 27) : 0);
g1 = inlet_N07 + (1 << 27) + (inlet_G07 < 1 ? (1 << 27) : 0);
h1 = inlet_N08 + (1 << 27) + (inlet_G08 < 1 ? (1 << 27) : 0);
a2 = (a1 > b1 ? 1 : 0) + (a1 > c1 ? 1 : 0) + (a1 > d1 ? 1 : 0) +
(a1 > e1 ? 1 : 0) + (a1 > f1 ? 1 : 0) + (a1 > g1 ? 1 : 0) +
(a1 > h1 ? 1 : 0);
b2 = (b1 > a1 ? 1 : 0) + (b1 > c1 ? 1 : 0) + (b1 > d1 ? 1 : 0) +
(b1 > e1 ? 1 : 0) + (b1 > f1 ? 1 : 0) + (b1 > g1 ? 1 : 0) +
(b1 > h1 ? 1 : 0);
c2 = (c1 > a1 ? 1 : 0) + (c1 > b1 ? 1 : 0) + (c1 > d1 ? 1 : 0) +
(c1 > e1 ? 1 : 0) + (c1 > f1 ? 1 : 0) + (c1 > g1 ? 1 : 0) +
(c1 > h1 ? 1 : 0);
d2 = (d1 > a1 ? 1 : 0) + (d1 > b1 ? 1 : 0) + (d1 > c1 ? 1 : 0) +
(d1 > e1 ? 1 : 0) + (d1 > f1 ? 1 : 0) + (d1 > g1 ? 1 : 0) +
(d1 > h1 ? 1 : 0);
e2 = (e1 > a1 ? 1 : 0) + (e1 > b1 ? 1 : 0) + (e1 > c1 ? 1 : 0) +
(e1 > d1 ? 1 : 0) + (e1 > f1 ? 1 : 0) + (e1 > g1 ? 1 : 0) +
(e1 > h1 ? 1 : 0);
f2 = (f1 > a1 ? 1 : 0) + (f1 > b1 ? 1 : 0) + (f1 > c1 ? 1 : 0) +
(f1 > d1 ? 1 : 0) + (f1 > e1 ? 1 : 0) + (f1 > g1 ? 1 : 0) +
(f1 > h1 ? 1 : 0);
g2 = (g1 > a1 ? 1 : 0) + (g1 > b1 ? 1 : 0) + (g1 > c1 ? 1 : 0) +
(g1 > d1 ? 1 : 0) + (g1 > e1 ? 1 : 0) + (g1 > f1 ? 1 : 0) +
(g1 > h1 ? 1 : 0);
h2 = (h1 > a1 ? 1 : 0) + (h1 > b1 ? 1 : 0) + (h1 > c1 ? 1 : 0) +
(h1 > d1 ? 1 : 0) + (h1 > e1 ? 1 : 0) + (h1 > f1 ? 1 : 0) +
(h1 > g1 ? 1 : 0);
outlet_maxNotes = inlet_G01 + inlet_G02 + inlet_G03 + inlet_G04 + inlet_G05 +
inlet_G06 + inlet_G07 + inlet_G08;
_gate[a2] = inlet_G01;
_gate[b2] = inlet_G02;
_gate[c2] = inlet_G03;
_gate[d2] = inlet_G04;
_gate[e2] = inlet_G05;
_gate[f2] = inlet_G06;
_gate[g2] = inlet_G07;
_gate[h2] = inlet_G08;
_position[a2] = inlet_N01;
_position[b2] = inlet_N02;
_position[c2] = inlet_N03;
_position[d2] = inlet_N04;
_position[e2] = inlet_N05;
_position[f2] = inlet_N06;
_position[g2] = inlet_N07;
_position[h2] = inlet_N08;
_velocity[a2] = inlet_V01;
_velocity[b2] = inlet_V02;
_velocity[c2] = inlet_V03;
_velocity[d2] = inlet_V04;
_velocity[e2] = inlet_V05;
_velocity[f2] = inlet_V06;
_velocity[g2] = inlet_V07;
_velocity[h2] = inlet_V08;
outlet_Go01 = _gate[0];
outlet_Go02 = _gate[1];
outlet_Go03 = _gate[2];
outlet_Go04 = _gate[3];
outlet_Go05 = _gate[4];
outlet_Go06 = _gate[5];
outlet_Go07 = _gate[6];
outlet_Go08 = _gate[7];
outlet_No01 = _position[0];
outlet_No02 = _position[1];
outlet_No03 = _position[2];
outlet_No04 = _position[3];
outlet_No05 = _position[4];
outlet_No06 = _position[5];
outlet_No07 = _position[6];
outlet_No08 = _position[7];
outlet_Vo01 = _velocity[0];
outlet_Vo02 = _velocity[1];
outlet_Vo03 = _velocity[2];
outlet_Vo04 = _velocity[3];
outlet_Vo05 = _velocity[4];
outlet_Vo06 = _velocity[5];
outlet_Vo07 = _velocity[6];
outlet_Vo08 = _velocity[7];
