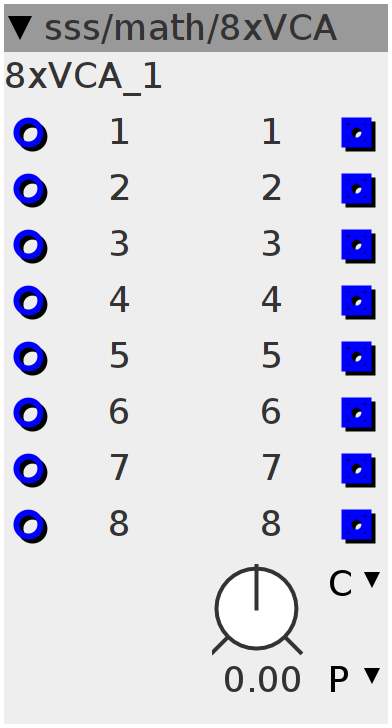

8xVCA
8x Multiply (attenuate) with a k-rate value
Inlets
frac32 input
frac32 2
frac32 3
frac32 4
frac32 5
frac32 6
frac32 7
frac32 8
Outlets
frac32 output
frac32 2
frac32 3
frac32 4
frac32 5
frac32 6
frac32 7
frac32 8
Parameters
frac32.s.map amp
outlet_1 = ___SMMUL(param_amp << 3, inlet_1 << 2);
outlet_2 = ___SMMUL(param_amp << 3, inlet_2 << 2);
outlet_3 = ___SMMUL(param_amp << 3, inlet_3 << 2);
outlet_4 = ___SMMUL(param_amp << 3, inlet_4 << 2);
outlet_5 = ___SMMUL(param_amp << 3, inlet_5 << 2);
outlet_6 = ___SMMUL(param_amp << 3, inlet_6 << 2);
outlet_7 = ___SMMUL(param_amp << 3, inlet_7 << 2);
outlet_8 = ___SMMUL(param_amp << 3, inlet_8 << 2);
