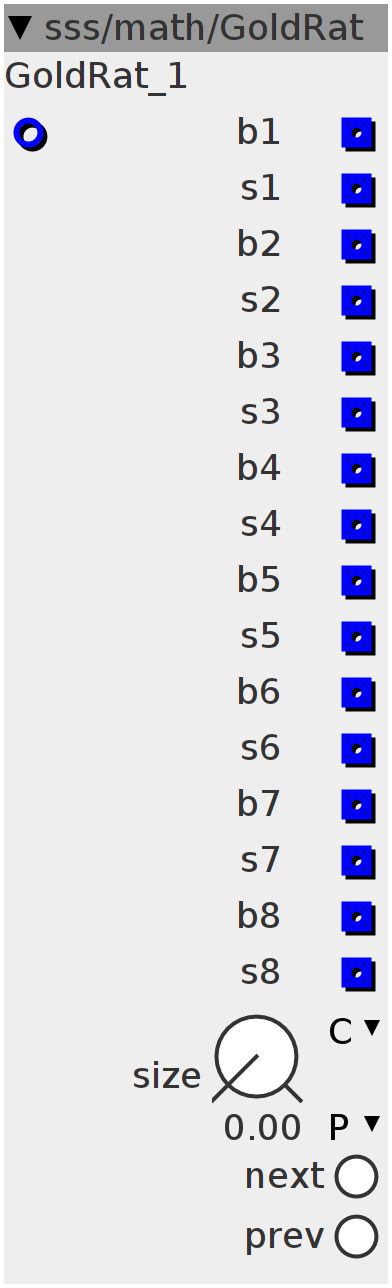

GoldRat
Golden Ratio calculator Set the total size with the "size" parameter the outputs will give the size of each next golden division of the smallest part of the previous division The buttons "next" and "prev" can be used to get to even smaller divisions based on the current size. Next will take the next smaller division and resets the control to the next smaller division Prev will take the current size and multiplies it with the golden ratio+1
Inlets
frac32 in
Outlets
frac32 b1
frac32 s1
frac32 b2
frac32 s2
frac32 b3
frac32 s3
frac32 b4
frac32 s4
frac32 b5
frac32 s5
frac32 b6
frac32 s6
frac32 b7
frac32 s7
frac32 b8
frac32 s8
Parameters
frac32.u.map size
bool32.mom next
bool32.mom prev
float32_t Gratio1 = 1.61803398875;
float32_t Gratio2 = 2.61803398875;
int32_t ratioB[8];
int32_t ratioS[8];
int i;
int ntrig;
int ptrig;if ((param_next > 0) && !ntrig) {
ntrig = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_size],
ratioS[0], 0xFFFD);
} else if (param_next == 0) {
ntrig = 0;
}
if ((param_prev > 0) && !ptrig) {
ptrig = 1;
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_size],
param_size * Gratio2, 0xFFFD);
} else if (param_prev == 0) {
ptrig = 0;
}
ratioS[0] = ((float32_t)(param_size)) / Gratio2;
ratioB[0] = ratioS[0] * Gratio1;
for (i = 0; i < 7; i++) {
ratioS[i + 1] = ratioS[i] / Gratio2;
ratioB[i + 1] = ratioS[i] - ratioS[i + 1];
}
outlet_b1 = ratioB[0];
outlet_s1 = ratioS[0];
outlet_b2 = ratioB[1];
outlet_s2 = ratioS[1];
outlet_b3 = ratioB[2];
outlet_s3 = ratioS[2];
outlet_b4 = ratioB[3];
outlet_s4 = ratioS[3];
outlet_b5 = ratioB[4];
outlet_s5 = ratioS[4];
outlet_b6 = ratioB[5];
outlet_s6 = ratioS[5];
outlet_b7 = ratioB[6];
outlet_s7 = ratioS[6];
outlet_b8 = ratioB[7];
outlet_s8 = ratioS[7];
