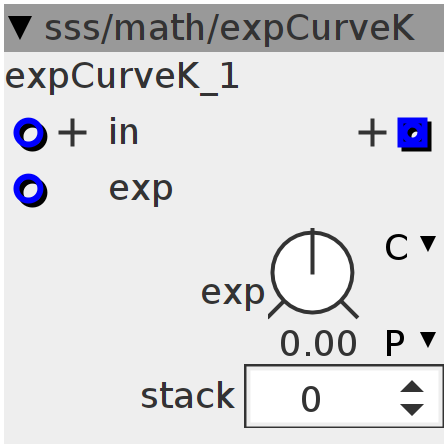

expCurveK
(inverse) exponential curving module exp parameter above zero is exponential curve exp parameter below zero is inverse exponential curve
Inlets
frac32 exp
frac32.positive in
Outlets
frac32.positive out
Parameters
frac32.s.map exp
int32 stack
Declaration
int i;
int32_t expo[32];
int dir;
Control Rate
int32_t inexpo = __SSAT(param_exp + inlet_exp, 28);
dir = inexpo > 0 ? 1 : -1;
inexpo = inexpo > 0 ? inexpo : -inexpo;
int32_t inv = (1 << 27) - inexpo;
int dar;
dar = inlet_in > 0 ? 1 : -1;
int32_t pos = inlet_in > 0 ? inlet_in : -inlet_in;
if (dir > 0) {
expo[0] = ___SMMUL(pos << 3, (inv + ___SMMUL(inexpo << 3, pos << 2)) << 2);
}
if (dir < 0) {
expo[0] =
___SMMUL(((1 << 27) - pos) << 3,
(inv + ___SMMUL(inexpo << 3, ((1 << 27) - pos) << 2)) << 2);
}
for (i = 1; i <= param_stack; i++)
expo[i] = ___SMMUL(expo[i - 1] << 3,
(inv + ___SMMUL(inexpo << 3, expo[i - 1] << 2)) << 2);
if (dir > 0) {
outlet_out = expo[param_stack] * dar;
}
if (dir < 0) {
outlet_out = ((1 << 27) - expo[param_stack]) * dar;
}
