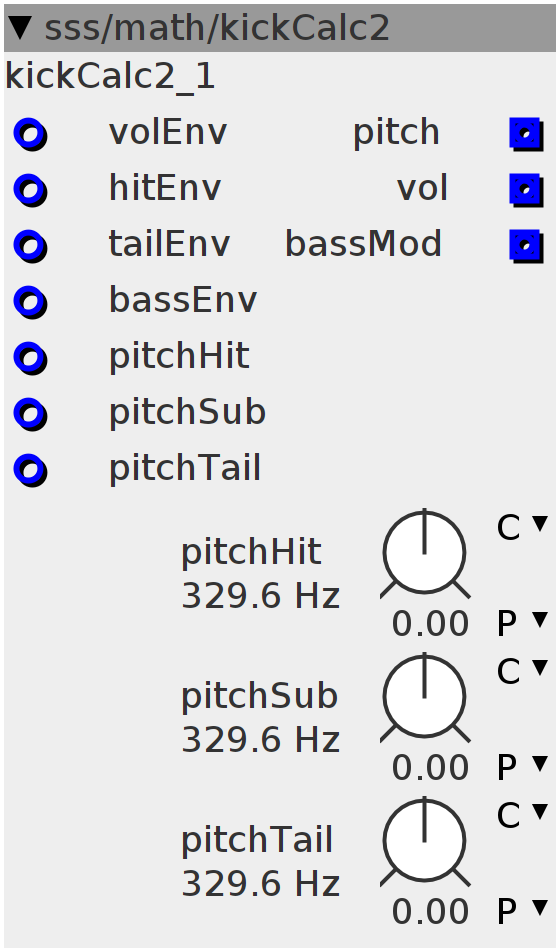

kickCalc2
Basskick modulator Takes 2 envelopes for hit and tail pitch modulation and uses them to fade between the pitch of the hit, the "sub" midsection for the "oompf" and a bassnote/modulation in the tail.
Inlets
frac32 volEnv
frac32 in1
frac32 tailEnv
frac32 bassEnv
frac32 pitchHit
frac32 pitchSub
frac32 pitchTail
Outlets
frac32 out
frac32 vol
frac32 bassMod
Parameters
frac32.s.map.pitch pitchHit
frac32.s.map.pitch pitchSub
frac32.s.map.pitch pitchTail
int32_t tail = param_pitchTail + inlet_pitchTail;
int32_t pitchSub = param_pitchSub + inlet_pitchSub;
int32_t pitchHit = param_pitchHit + inlet_pitchHit;
int32_t base =
pitchSub + ___SMMUL(tail - pitchSub << 2, (1 << 27) - inlet_tailEnv << 3);
int32_t pitch = base + ___SMMUL(pitchHit - base << 2, inlet_hitEnv << 3);
outlet_pitch = pitch;
int32_t bs1 = outlet_vol =
inlet_volEnv +
___SMMUL(inlet_bassEnv - inlet_volEnv << 2,
(1 << 27) - ___SMMUL(inlet_tailEnv << 3, inlet_volEnv << 2) << 3);
outlet_bassMod =
___SMMUL(inlet_bassEnv << 2,
(1 << 27) - ___SMMUL(inlet_tailEnv << 3, inlet_volEnv << 2) << 3);
