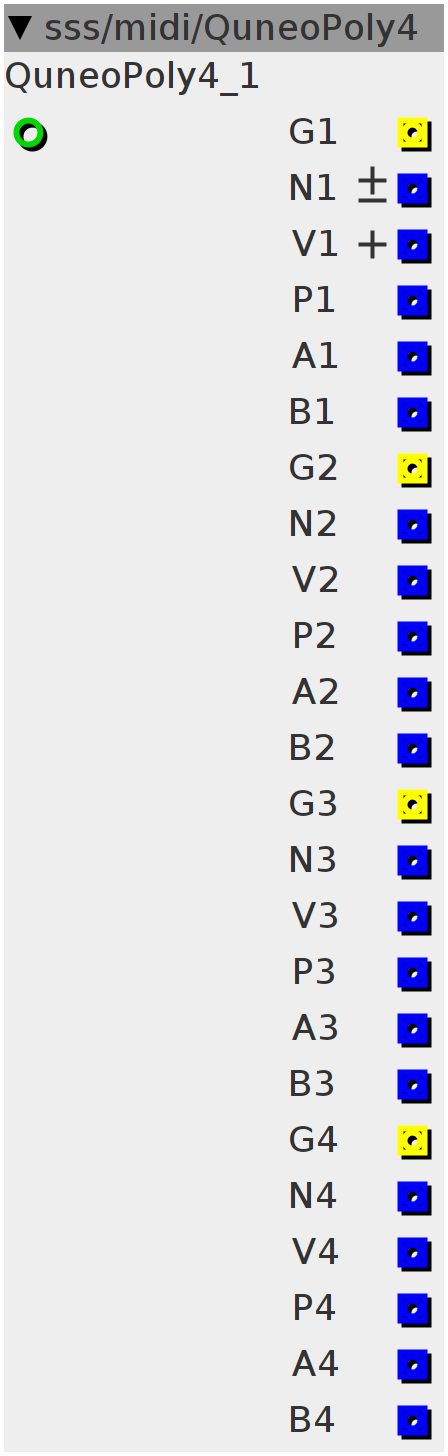

QuneoPoly4
Polyphonic MIDI keyboard with note, gate, velocity, pressure, X and Y outputs to use with the QuNeo midicontroller. The module sorts out the 2 extra X/Y midicontrols that are send with each note and outputs these a 2 extra polyphonic controls next to the pressure output. This module can play 4 voices, each with their own X/Y control. quneo layout of the 16 pad: lowest note=36, left bottom is first note, then to the right and up: 48,49,50,51 44,45,46,47 40,41,42,43 36,37,38,39 pressure starts at 23, each next in line has an increment of 3 (23,26,29, etc) pressure starts at 24, each next in line has an increment of 3 (24,27,30, etc) pressure starts at 25, each next in line has an increment of 3 (25,28,31, etc) eg for pressure: 59,62,65,68 47,50,53,56 35,38,41,44 23,26,29,32
Inlets
int32 count
Outlets
frac32 P1
frac32 A1
frac32 B1
frac32 N2
frac32 V2
frac32 P2
frac32 A2
frac32 B2
frac32 N3
frac32 V3
frac32 P3
frac32 A3
frac32 B3
frac32 N4
frac32 V4
frac32 P4
frac32 A4
frac32 B4
bool32 key pressed, no retrigger legato
bool32 G2
bool32 G3
bool32 G4
frac32.bipolar midi note number (-64..63)
frac32.positive note-on velocity
int8_t N[4];
int32_t G[4];
uint8_t V[4];
int i;
int32_t c0[4];
int32_t c1[4];
int32_t c2[4];
int8_t T[4];outlet_N1 = N[0] << 21;
outlet_G1 = G[0];
outlet_V1 = V[0] << 20;
outlet_P1 = c0[0];
outlet_A1 = c1[0];
outlet_B1 = c2[0];
outlet_N2 = N[1] << 21;
outlet_G2 = G[1];
outlet_V2 = V[1] << 20;
outlet_P2 = c0[1];
outlet_A2 = c1[1];
outlet_B2 = c2[1];
outlet_N3 = N[2] << 21;
outlet_G3 = G[2];
outlet_V3 = V[2] << 20;
outlet_P3 = c0[2];
outlet_A3 = c1[2];
outlet_B3 = c2[2];
outlet_N4 = N[3] << 21;
outlet_G4 = G[3];
outlet_V4 = V[3] << 20;
outlet_P4 = c0[3];
outlet_A4 = c1[3];
outlet_B4 = c2[3];if ((status == MIDI_NOTE_ON + attr_midichannel) && (data2)) {
int S = 1;
i = -1;
while ((S == 1) && (i < 4)) {
i += S > 0 ? 1 : 0;
S = G[i];
}
if (i == 4) {
i = (int32_t)GenerateRandomNumber() & 3;
}
V[i] = data2;
N[i] = data1 - 64;
G[i] = 1;
T[i] = (data1 - 36);
T[i] = (T[i] - T[i] / 16 * 16) * 3;
} else if (((status == MIDI_NOTE_ON + attr_midichannel) && (!data2)) ||
(status == MIDI_NOTE_OFF + attr_midichannel)) {
for (i = 0; i < 4; i++) {
if (N[i] == data1 - 64) {
G[i] = 0;
}
}
} else if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == MIDI_C_ALL_NOTES_OFF)) {
for (i = 0; i < 4; i++) {
G[i] = 0;
}
}
for (i = 0; i < 4; i++) {
if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == (T[i] + 23)) && (G[i])) {
c0[i] = data2 << 20;
}
if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == (T[i] + 24)) && (G[i])) {
c1[i] = data2 << 20;
}
if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == (T[i] + 25)) && (G[i])) {
c2[i] = data2 << 20;
}
}
